AV Matrix Switch - LINDY 4x4 HDMI 4K60 Matrix, 4x4 Connection, Video Walls
Product reference:
14-4002888382380
4x4 HDMI 4K60 Matrix allows seamless switching between four HDMI sources and four displays, supporting resolutions up to 3840x2160 60Hz. It features independent audio extraction, video wall creation, and a variety of control options, including IR, RS-232 and a web interface.
AV Matrix Switch - LINDY 4x4 HDMI 4K60 Matrix, 4x4 Connection, Video Walls
Product reference:
14-4002888382380
4x4 HDMI 4K60 Matrix allows seamless switching between four HDMI sources and four displays, supporting resolutions up to 3840x2160 60Hz. It features independent audio extraction, video wall creation, and a variety of control options, including IR, RS-232 and a web interface.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
4x4 HDMI 4K60 Matrix with Video Wall Scaling Lindy
The 4x4 HDMI 4K60 matrix allows seamless switching between four HDMI sources and four displays, supporting resolutions up to 3840x2160 60Hz. It features independent audio extraction, video wall creation, and multiple control options, including IR, RS-232 and web interface.
- Seamlessly switch between four HDMI sources and distribute them to four displays with independent audio output.
- Supports 4K resolution 60Hz, ensuring impressive image quality, ideal for presentations and video walls.
- A variety of control options, including IR remote control, RS-232 and web interface, ensure flexible operation.
- The durable metal housing and compact design ensure durability and easy integration into any AV system.
Features | |
|---|---|
| Product type | 4x4 HDMI Matrix Switch |
| AV interface | HDMI® |
| Interface standard | HDMI® 2.0 |
| Supported bandwidth | 18Gbps |
| Maximum resolution | 3840x2160@60Hz 4:4:4 8Bit |
| HDCP support | 1.4 |
| Supported audio | HDMI® Audio Transmission / 2CH Analog Audio |
| IR support | 20-60kHz |
| CEC support | Yes |
| Serial interface | RS-232 |
| Management options | IR, Push button, RS-232, Software, Internet GZU |
| Dimensions | 430x220x44mm (16.93x8.66x1.73in) |
| Weight | 3.182kg (7.02lb) |
| Housing material | Metal |
| Operating temperature | 0°C - 40°C (32°F - 104°F) |
| Storage temperature | -20°C - 70°C (-4°F - 158°F) |
| Humidity | 10 - 50% (non-condensing) |
| Power | 60W |
| Color | Black |
Connectors | |

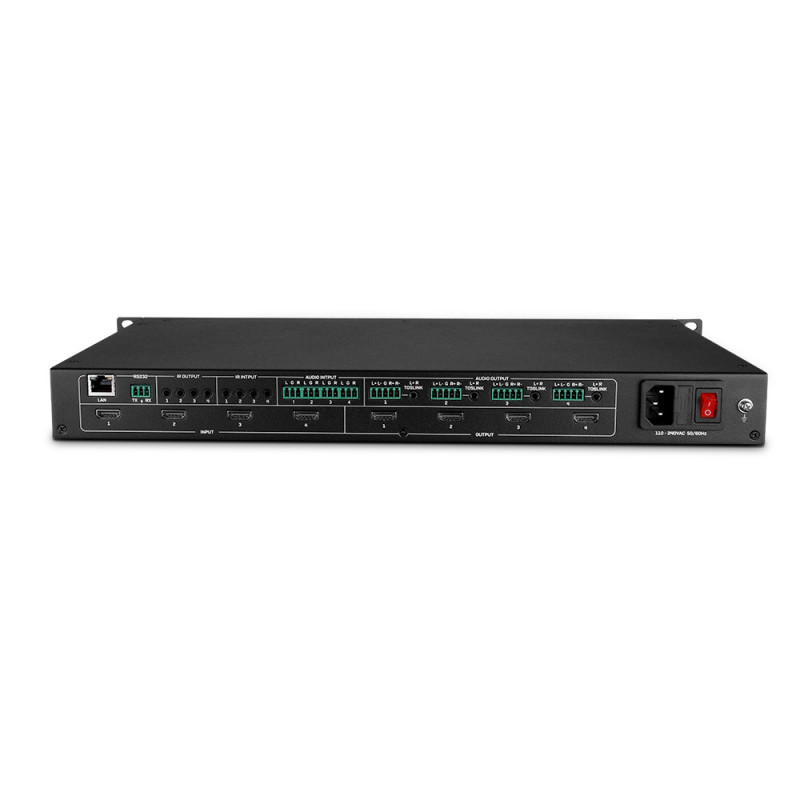

| Entrance | 4 x HDMI® Type A (Female), 4 x 3-Pin Phoenix (Female) |
| Exit | 4 x HDMI® Type A (Female), 4 x 5-Pin Phoenix (Female), 4 x Mini Toslink (Female) |
| Management | RS232 (Female), RJ45 (Female), 8 x AND 3.5mm (Female) |
| Power connector | IEC C14 (Male) |
Package contents | |
| 4x4 HDMI® Matrix, Multi-edge C13 Power Cables, 2m, 4 x IR Transmitter Cables, 4 x IR Receiver Cables, IR Remote Control CR2025 Battery, 1 x 3-Pin Phoenix Connector, 1 x USB Type A to RS-232 Cable, Lindy User Manual | |
www.lindy.lt
| Height | 100mm |
| Length | 600mm |
| Weight | 5000 grams |
| Width | 500mm |
