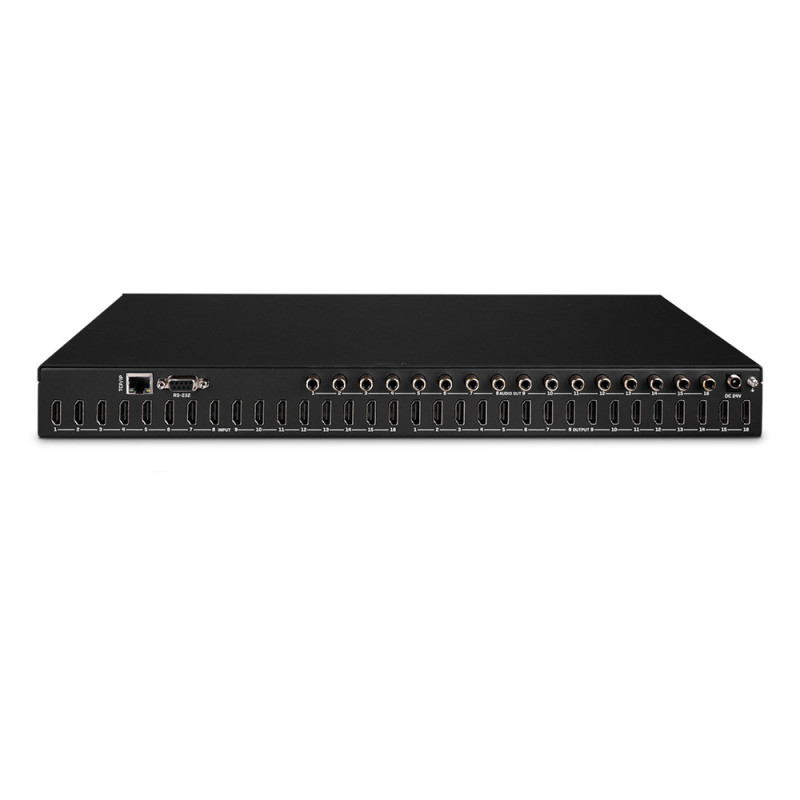

LINDY 16x16 HDMI 4K60 Matrix 18Gbps, ARC, Dolby Vision
Connect 16 4K UHD source devices to 16 4K UHD displays with HDMI 2.0b support and 18Gbps bandwidth. Features include HDMI audio pass-through, IR control, as well as ARC, Dolby Vision, and HDR 10 support.
- Supports 4K resolution 60Hz with HDMI 2.0b for high quality video output.
- With 16 HDMI inputs and outputs, it allows flexible routing of AV signals.
- Includes advanced audio support with HDMI audio pass-through up to 7.1 channels and coaxial up to 5.1 channels.
- Control options include buttons, IR, RS-232 and IP, allowing for flexible operation.
Features | |
|---|---|
| Product type | AV Matrix |
| Model | 16x16 HDMI 4K60 Matrix |
Specifications | |
| AV interface | HDMI® |
| Interface standard | HDMI® 2.0b |
| Supported bandwidth | 18Gbps |
| Maximum resolution | 3840x2160@60Hz RGB 8bit |
| HDCP support | 2.2 |
| Supported audio | HDMI® audio transmission up to 7.1CH, coaxial up to 5.1CH |
| IR support | 38kHz |
| CEC support | Yes |
| Serial interface | RS-232 |
| LED / LCD screen | OLED |
| Management options | Buttons, IR, RS-232, IP |
| Special features | ARC, 4K to 1080p output downscaling, Dolby Vision, Dolby Atmos, HDR 10 |
Connectors | |
| Input connectors | 16 x HDMI® (Female) |
| Output connectors | 16 x HDMI® (Female), 16 x Coax (Female) |
| Control connections | RS-232 (Female), RJ45 (Female) |
| Power connector | 5.5/2.5mm |
Physical properties | |
| Dimensions | 440x200x45mm (17.32x7.87x1.77in) |
| Housing | Metal |
| Net weight | 2.83kg (6.24lb) |
| Working temperature | -10°C - 45°C (14°F -113°F) |
| Storage temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20 - 90% (non-condensing) |
| Power requirements | 24VDC 3.75A |
| MTBF | 50,000 hours |
| Color | Black |
Miscellaneous | |
| Packaging type | Cardboard box |
| Package dimensions | 510x328x95mm (20.08x12.91x3.74in) |
| Total weight | 4.06kg (8.95lb) |
| Product compliance | CE, UKCA, FCC, RoHS REACH, CP65 |
Package contents | |
| |
www.lindy.lt
| Height | 88 mm |
| Length | 528mm |
| Weight | 4630 grams |
| Width | 360 mm |
