HDMI Matrix Switch - Lindy 38390 4×4 HDMI 4K60 Seamless Matrix Switch
Product reference:
14-4002888383905
The 4×4 HDMI matrix switcher delivers signals from four HDMI sources to four displays and provides seamless switching, multi-image display and video wall scaling up to 3840×2160, 60 Hz resolution. The device supports HDMI 2.0b, HDCP 2.2, HDMI audio pass-through, optical and stereo audio outputs, and is controlled via buttons, infrared remote control, RS-232 or IP communication.
HDMI Matrix Switch - Lindy 38390 4×4 HDMI 4K60 Seamless Matrix Switch
Product reference:
14-4002888383905
The 4×4 HDMI matrix switcher delivers signals from four HDMI sources to four displays and provides seamless switching, multi-image display and video wall scaling up to 3840×2160, 60 Hz resolution. The device supports HDMI 2.0b, HDCP 2.2, HDMI audio pass-through, optical and stereo audio outputs, and is controlled via buttons, infrared remote control, RS-232 or IP communication.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

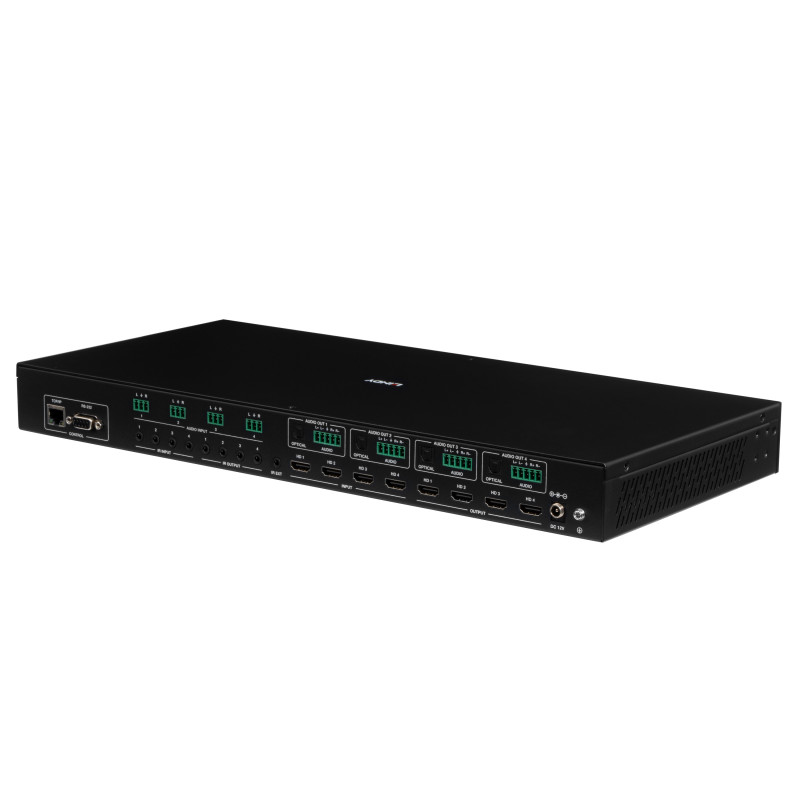

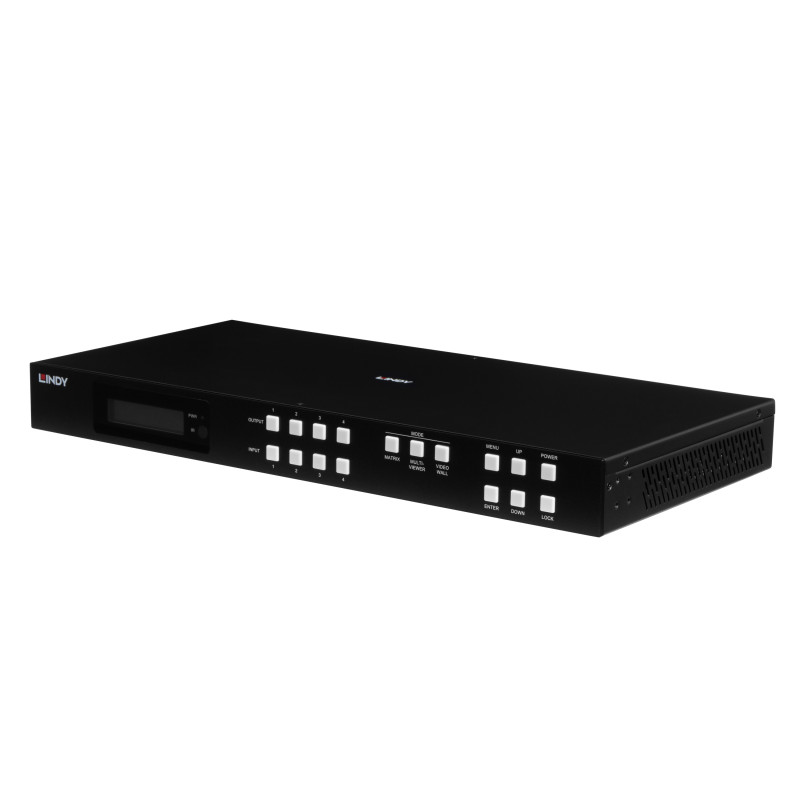

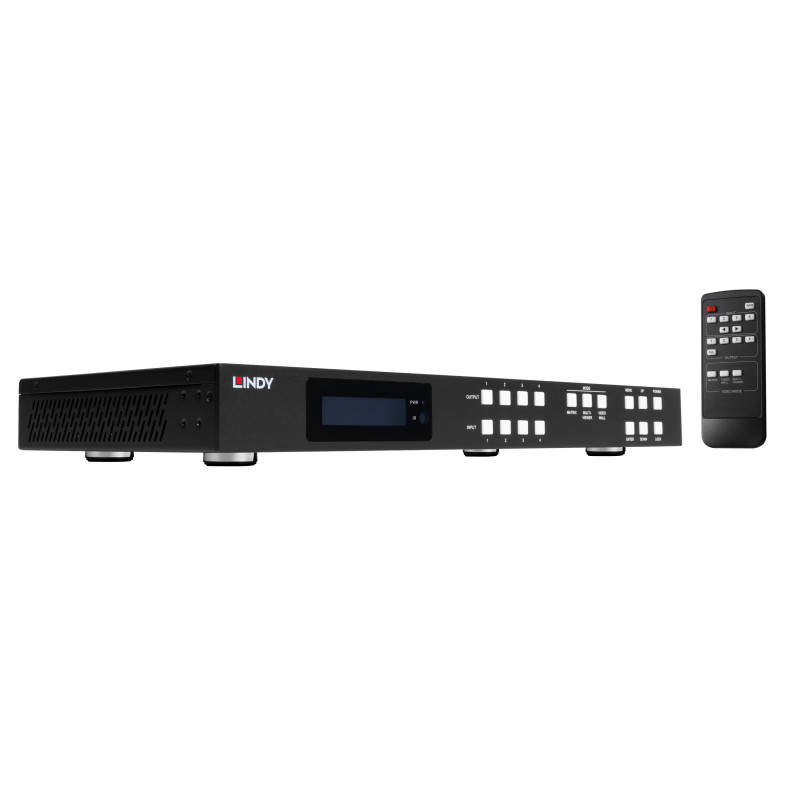

Lindy 38390 4×4 HDMI 4K60 Seamless Matrix Switcher
The 4×4 HDMI matrix switcher routes four HDMI sources to four displays, providing seamless switching, multi-view mode and video wall scaling up to 3840 × 2160 at 60 Hz. The device supports HDMI 2.0b, HDCP 2.2, HDMI audio pass-through, optical and stereo audio outputs. Control is possible via buttons, IR, RS-232 or IP connection.
- 4×4 HDMI 2.0b matrix switcher for routing four 4K HDMI sources to four displays
- Supports seamless switching, multi-view layouts, and video wall configurations
- Transmits up to 4K resolution at 60 Hz, provides 18 Gbps bandwidth and HDCP 2.2 support
- Supports HDMI audio pass-through, optical and stereo analog audio outputs, as well as front panel button control, IR, RS-232 and IP connectivity
Product information | |
|---|---|
| Product type | 4×4 HDMI matrix switcher |
| Brand | Lindy |
| Model | 38390 |
| Function | Routes signals from four HDMI source devices to four HDMI displays, providing seamless switching, multi-view layout, and video wall scaling. |
Technical specifications | |
| HDMI standard | HDMI 2.0b |
| Highest resolution | 3840 × 2160 at 60 Hz, RGB 8-bit |
| Throughput | 18Gbps |
| HDCP | HDCP 2.2 |
| Audio support | HDMI audio transmission up to 7.1 channels, optical audio up to 5.1 channels and stereo analog audio |
| CEC support | Yes |
| IR frequency | 38 kHz |
| Screen | Integrated LCD screen |
Connections and control | |
| HDMI inputs | 4 × HDMI female |
| HDMI outputs | 4 × HDMI female |
| Audio outputs | 4 × Phoenix connectors and 4 × TosLink optical connectors |
| Management interfaces | Front panel buttons, IR remote control, RS-232 and IP control via RJ45 |
| Power connector | 5.5/2.1 mm DC connector |
Physical specifications | |
| Dimensions | 440 × 203 × 44.5 mm (W × W × H) |
| Weight | 2.55 kg |
| Housing material | Metal |
| Color | Black |
| Operating temperature | from 0°C to 40°C |
| Storage temperature | from −20 °C to 60 °C |
| Relative humidity | from 20% to 90%, non-condensing |
| Power requirements | 12V DC, 2.5A |
Included accessories | |
| Package contents |
|
Safety information | |
| Safety warning | Use the matrix switcher only to route compatible HDMI audio and video signals. Use in a dry, well-ventilated environment, within the specified temperature and power limits. Disconnect the power supply before connecting or disconnecting cables. Do not use the device if the casing, power supply, or cables are damaged. |
| Height | 119 mm |
| Length | 524mm |
| Weight | 4060 grams |
| Width | 316 mm |
