AV Extender - LINDY HDMI IR 50 m Cat.6 Extender PoC 1920x1200 60Hz Loop Out
Product reference:
14-4002888385091
Transmits HDMI and IR signals up to 50 meters using Cat.6 cable, maximum resolution level - 1920x1200 at 60Hz. Features include power over cable (PoC), IR pass-through and loop-out function.
AV Extender - LINDY HDMI IR 50 m Cat.6 Extender PoC 1920x1200 60Hz Loop Out
Product reference:
14-4002888385091
Transmits HDMI and IR signals up to 50 meters using Cat.6 cable, maximum resolution level - 1920x1200 at 60Hz. Features include power over cable (PoC), IR pass-through and loop-out function.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

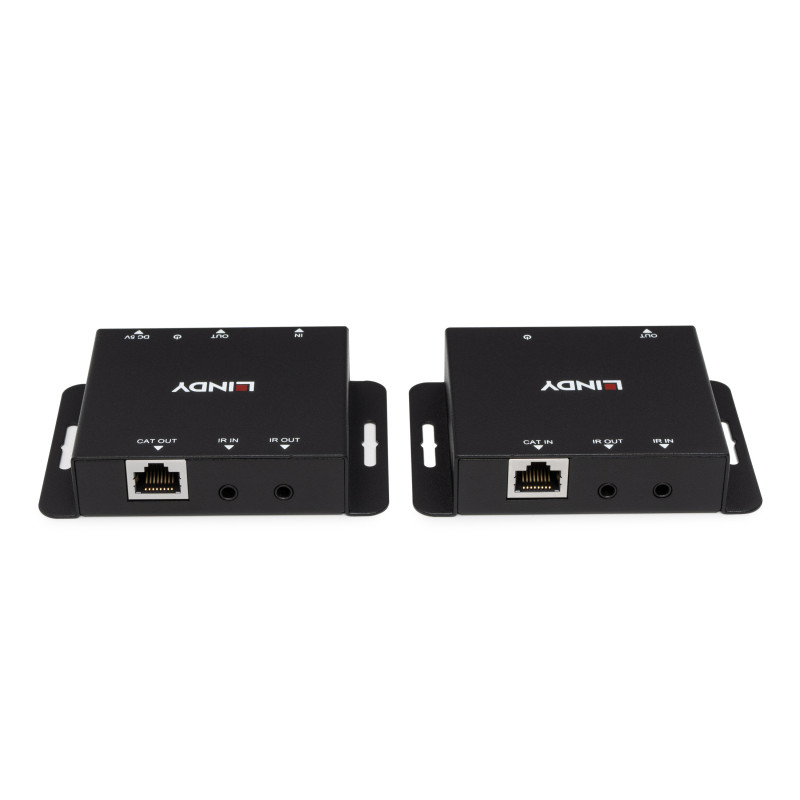

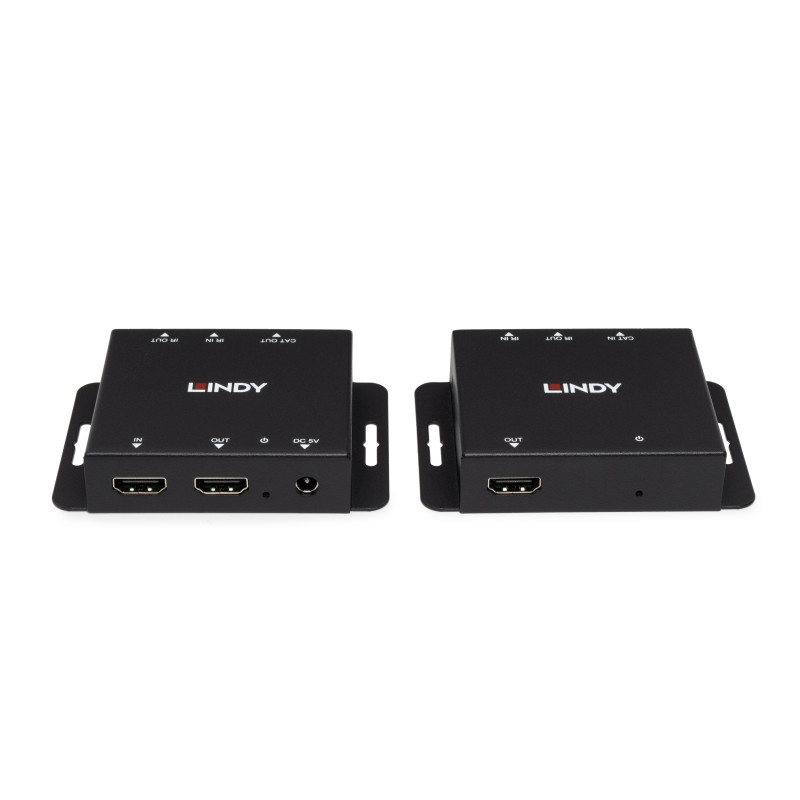

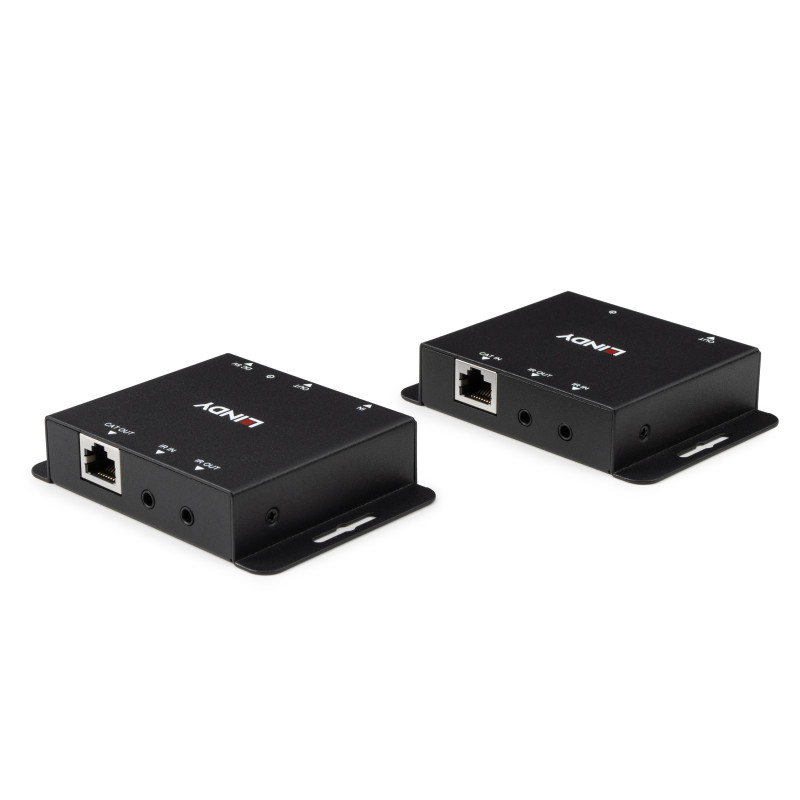

LINDY HDMI IR 50 m Cat.6 Extender PoC 1920x1200 60Hz Loop Out
Transmits HDMI and IR signals up to 50 meters using Cat.6 cable with maximum resolution 1920x1200 to 60Hz. Features include Power over Cable (PoC), IR pass-through and loop-out function.
- Extends HDMI signals up to 50 meters (164.04 feet) with 1920x1200@60Hz resolution support.
- There is a Power over Cable (PoC) function for easy installation, and IR pass-through for remote control functionality.
- Compact metal body with light weight, ideal for various environments.
- Multi-power supply and IR cables included for various connection options.
Features | |
|---|---|
| Product type | AV Extender |
| Model | 50m Cat.6 HDMI IR Extender |
Specifications | |
| AV interface | HDMI® |
| Interface standard | 1.3 |
| Supported tape | 4.95Gbps |
| Maximum distance | 50m (164.04 feet) |
| Maximum resolution | 1920x1200@60Hz |
| HDCP support | HDCP 1.4 |
| EDID | Throughput |
| Supported audio system | Up to 7.1 (bandwidth) |
| IR support | 20-60kHz |
| Transmission medium | 1 x Cat.6 |
| Chipset | GSV100T |
| Special features | PoC (Power over Cable), IR bandwidth, Loop Out |
Connectors | |
| Sender input | HDMI® Type A (Female), 3.5mm IR (Female) |
| Sender output | HDMI® Type A (Female), RJ-45 (Female), 3.5mm IR (Female) |
| Receiver input | RJ-45 (Female), 3.5mm AND (Female) |
| Receiver output | HDMI® Type A (Female), 3.5mm IR (Female) |
| Power supply | 5.5/2.1mm |
Physical properties | |
| Dimensions (approximate) | 96x20x68mm (3.78x0.79x2.68in) for each unit |
| Housing material | Metal |
| Net weight | 0.44kg (0.97lb) |
| Working temperature | 0°C - 40°C (32°F - 104°F) |
| Storage temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20 - 90% RH (non-condensing) |
| Power requirements | 5VDC 1A |
| Color | Black |
Miscellaneous | |
| Packaging type | Cardboard box |
| Package dimensions | 215x75x135mm (8.46x2.95x5.31in) |
| Total weight | 0.61kg (1.34lb) |
| Product compliance | CE, FCC, RoHS, REACH California Proposition 65 |
Package contents | |
| |
www.lindy.lt
| Height | 75 mm |
| Length | 215 mm |
| Weight | 610g |
| Width | 135mm |
