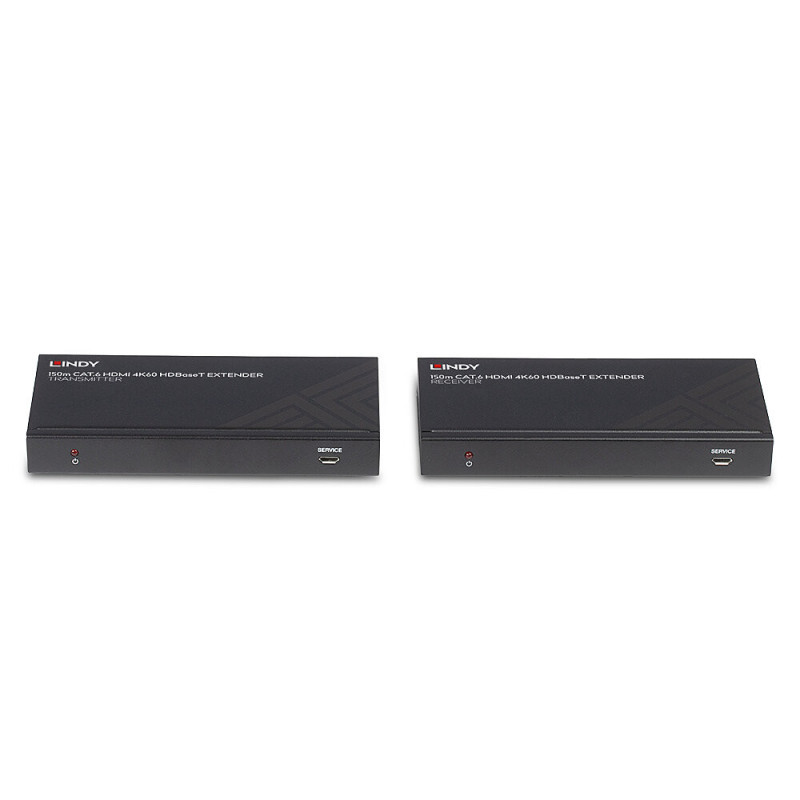

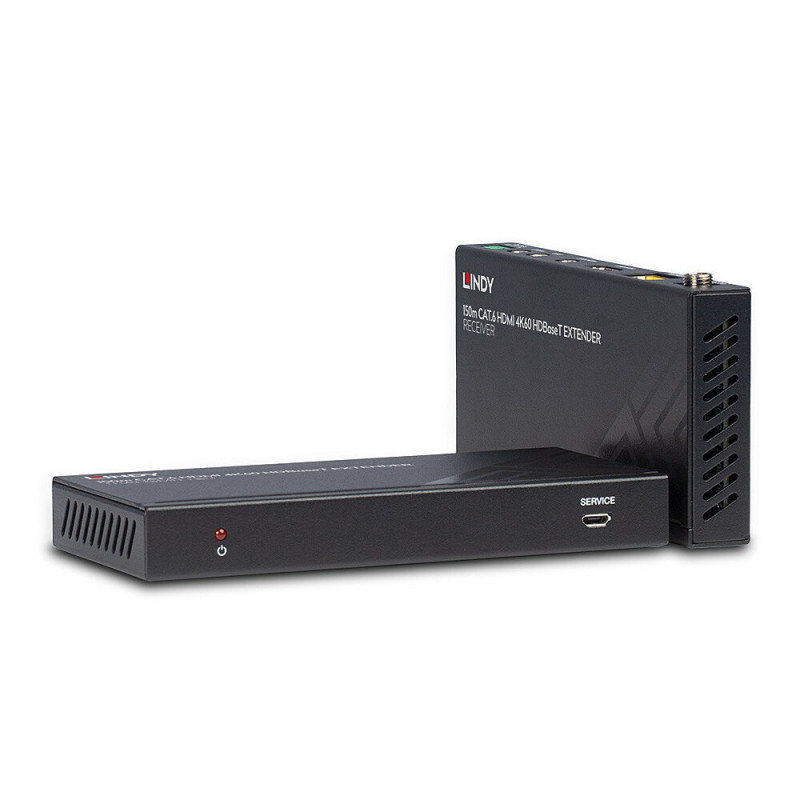

LINDY Cat.6 HDMI 4K60 AND RS-232 HDBaseT 18Gbps 150 m
Extends HDMI resolutions up to 150m, supporting 4K60 and IR RS-232 control. Compatible with HDMI 2.0 and offers 18Gbps bandwidth.
- Supports 4K resolution 60Hz with a maximum distance of up to 150 m using Cat.6 cable.
- Offers bidirectional RS-232 control and IR support for seamless integration.
- Includes HDMI loop-out port and Power over Cat.6 (PoC) for added convenience.
- Meets CE, UKCA, FCC, RoHS and REACH standards for safety and reliability.
Features | |
|---|---|
| Product type | AV extender |
| Model | 150m Cat.6 HDMI 4K60, IR RS-232 HDBaseT extender |
Specifications | |
| AV interface | HDMI® |
| Interface standard | 2.0 |
| Supported bandwidth | 18Gbps |
| Maximum resolution | 3840x2160@60Hz 4:4:4 8bit |
| HDCP support | 2.2 |
| EDID Skip | Skipping |
| IR support | 20KHz - 60KHz |
| Serial interface | RS-232 (two-way) |
| Transmission protocol | HDBaseT |
| Transmission medium | 1 x Cat.6 |
| Chip | VS010-A0 |
| Special features | HDMI® Loop Out port, PoC (Power over Cat.6) |

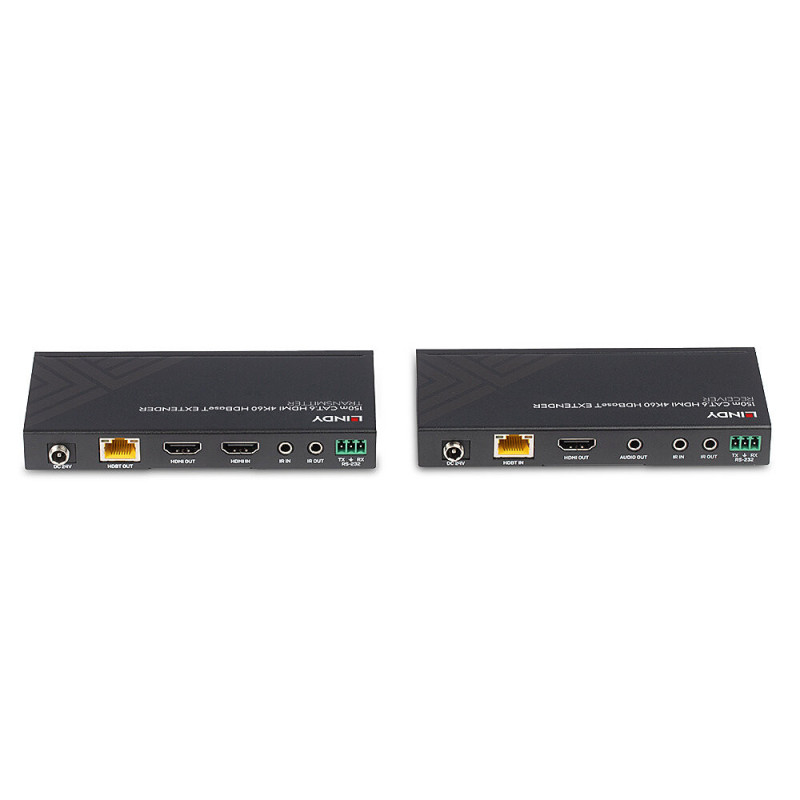

Connectors | |

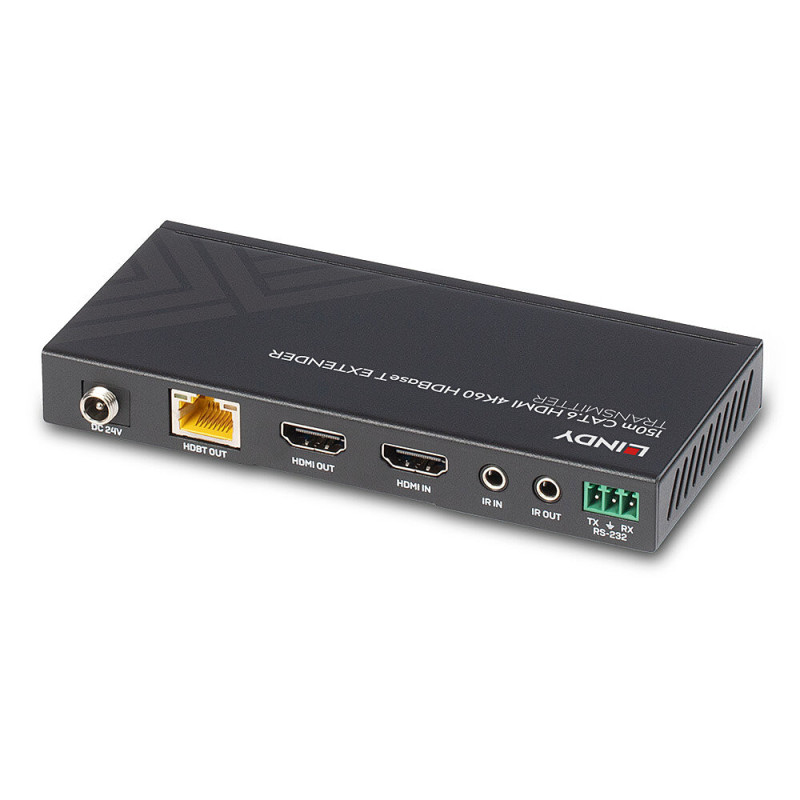

| Sender input | HDMI® Type A (Female), IR (Female) |
| Sender output | HDMI® Type A (Female), RJ-45 (Female), IR (Female) |
| Receiver input | RJ-45 (Female) |
| Receiver output | HDMI® Type A (Female), 3.5mm (Female) |
| Bidirectional ports | RS-232 (Female) |
| Power connector | 5.5/2.1mm |
Physical properties | |
| Dimensions (approximate) | 140x65x18mm (5.51x2.56x0.71in) |
| Housing | Metal |
| Net weight | 0.76kg (1.68lb) |
| Working temperature | 0°C - 40°C (32°F - 104°F) |
| Storage temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20 - 90% RH (non-condensing) |
| Power requirements | 24VDC 1A |
| Color | Black |
Additional information | |
| Product compliance | CE, UKCA, FCC, RoHS, REACH California Proposition 65 |
www.lindy.lt
| Height | 185 mm |
| Length | 250mm |
| Weight | 970g |
| Width | 75 mm |
