AV Extender - LINDY Cat.6 HDMI 4K30 IR Extender with PoC Loop Out Amplify, 70 m, Black
Product reference:
14-4002888382083
HDMI and IR signals can be amplified up to 70m using Cat.6 cable, supporting resolutions up to 3840x2160@30Hz. The device has PoC, loop out and EDID copy functions.
AV Extender - LINDY Cat.6 HDMI 4K30 IR Extender with PoC Loop Out Amplify, 70 m, Black
Product reference:
14-4002888382083
HDMI and IR signals can be amplified up to 70m using Cat.6 cable, supporting resolutions up to 3840x2160@30Hz. The device has PoC, loop out and EDID copy functions.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 3
business days

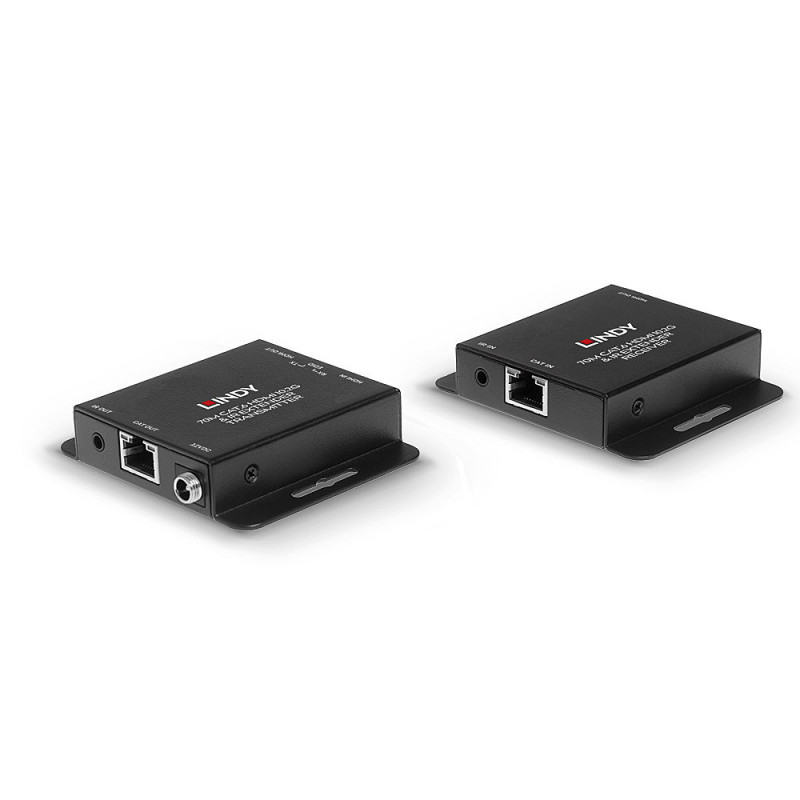

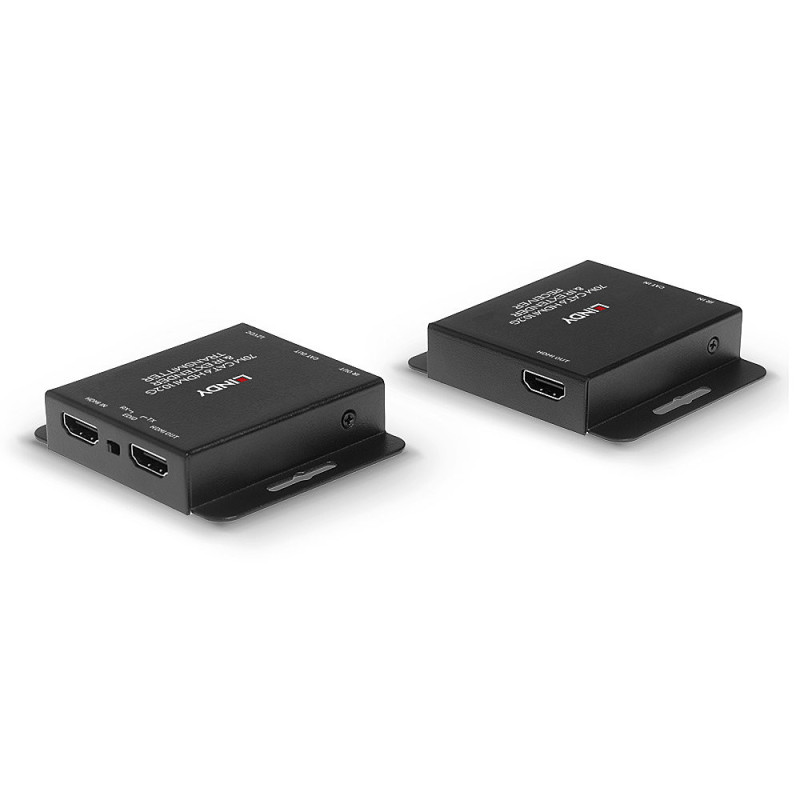

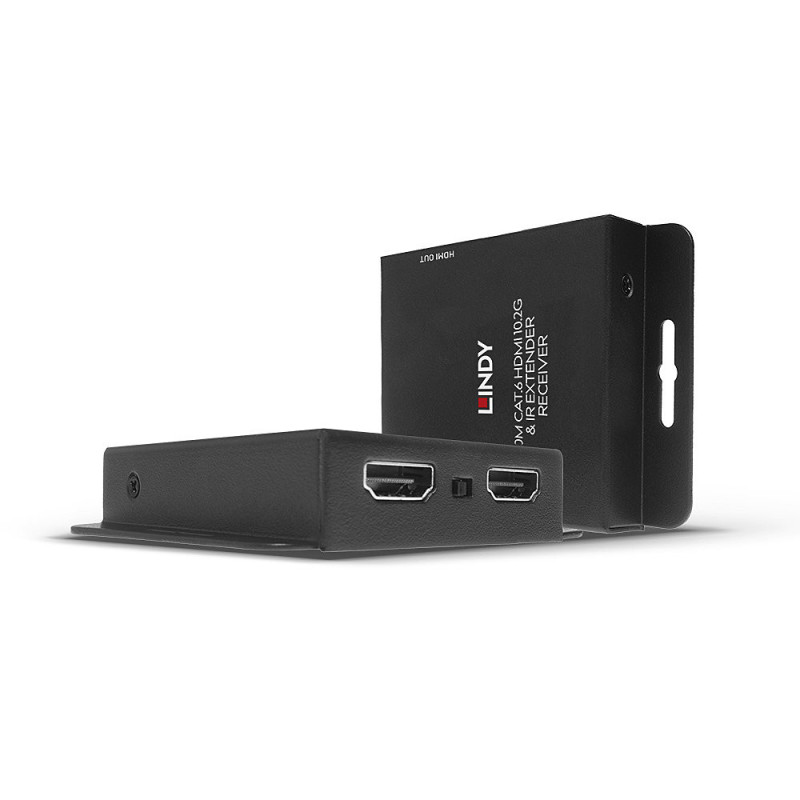

LINDY Cat.6 HDMI 4K30 IR Extender with PoC and Loop Out, 70 m, Black
Amplifies HDMI and IR signals over 70m using Cat.6 cable, supporting resolutions up to 3840x2160@30Hz. Features include PoC, loop out and EDID copy capabilities.
- Extends HDMI signals up to 70 m (229.66 ft) 1080p or 40 m (131.23 ft) 4K@30Hz.
- The Power over Cable (PoC) function simplifies installation without additional power supplies.
- Supports IR pass-through for remote control function.
- The compact metal housing ensures durability and reliable operation.
Features | |
|---|---|
| Product type | AV extender |
| Model | 70m Cat.6 HDMI 4K30 IR extender |
Specifications | |
| AV interface | HDMI® |
| Interface standard | 1.4 |
| Supported tape | 10.2Gbps |
| Maximum distance | 70m (229.66 feet) - 1920x1080@60Hz, 40m (131.23 feet) - 3840x2160@30Hz |
| Maximum resolution | 3840x2160@30Hz 4:4:4 8bit |
| HDCP support | HDCP 1.4 |
| EDID Skip | EDID copy functionality |
| Supported audio | Up to 7.1 (skip) |
| IR support | 20-60kHz |
| Transmission medium | 1 x Cat.6 |
| Chipset | GSV1001 |
| Special features | PoC (Power over Cable), IR Skip, Loop Out |

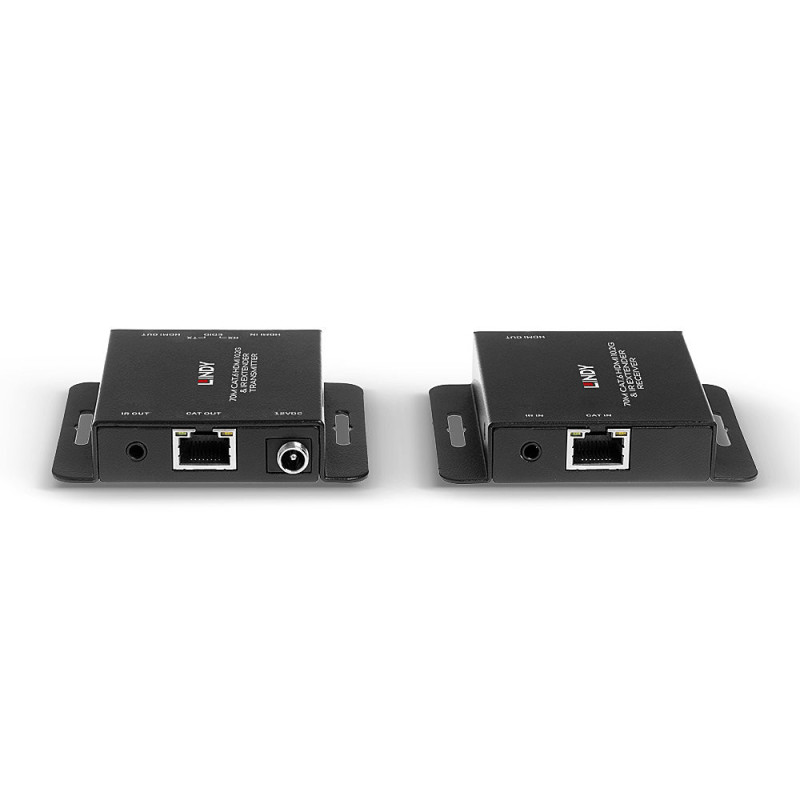

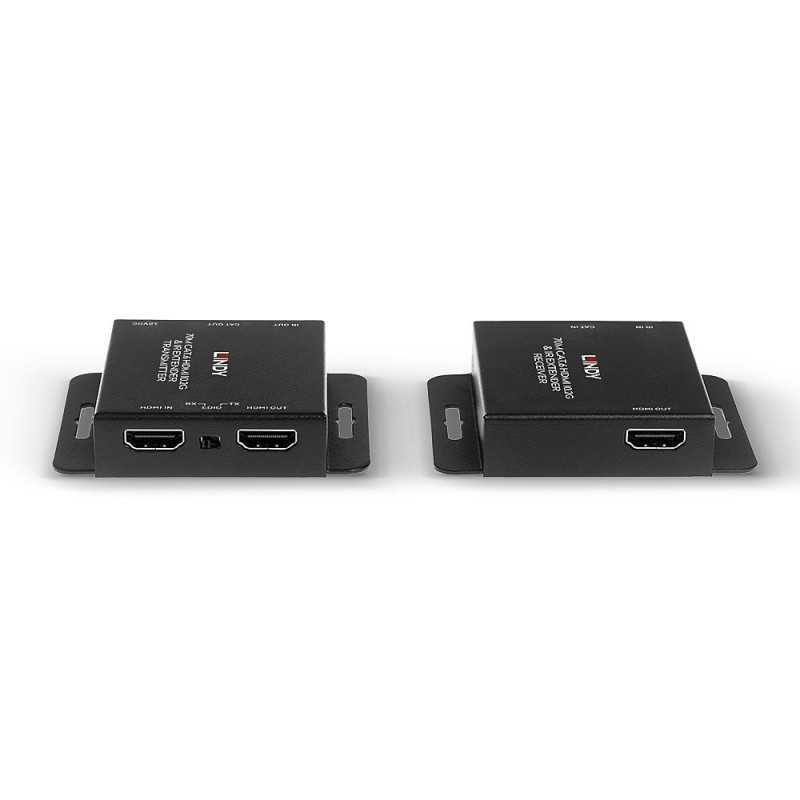

Connectors | |
| Sender input | HDMI® Type A (Female) |
| Sender output | HDMI® Type A (Female), RJ-45 (Female), IR (Female) |
| Receiver input | RJ-45 (Female), AND (Female) |
| Receiver output | HDMI® Type A (Female) |
| Power connector | 5.5/2.1mm |
Physical properties | |
| Dimensions (approximate) | 79.5x16.5x69mm (3.13x0.65x2.72in) |
| Housing material | Metal |
| Net weight | 0.13kg (0.29lb) per unit |
| Operating temperature | 0°C - 40°C (32°F - 104°F) |
| Storage temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20 - 90% RH (non-condensing) |
| Power requirements | 12VDC 1A |
| Color | Black |
www.lindy.lt
| Height | 75 mm |
| Length | 203 mm |
| Weight | 414 grams |
| Width | 115 mm |
