LINDY 4K60 HDMI USB SDVoE Extender, USB, Audio, IR, RS232 Signals, Black
Extends 4K60 HDMI, USB, audio, IR and RS232 signals over 10G copper or fiber network switch. Supports maximum resolution 3840x2160@60Hz and distance up to 100m.
- Supports 4K resolution 60Hz with a maximum distance to 100m (393.7ft).
- Equipped with HDMI, USB and audio connections for versatile AV integration.
- Uses PoE+ technology, allowing easy installation without additional power supplies.
- Compact metal housing designed for durability and efficient heat dissipation.
Features | |
|---|---|
| Product type | AV Extender |
| Model | 4K60 HDMI USB SDVoE Extender |
Specifications | |
| AV interface | HDMI® |
| Console interface | USB |
| Interface standard | 2.0b, USB 2.0, PoE+ 802.3at |
| Supported bandwidth | 18Gbps |
| Transmission protocol | IP |
| Transmission medium | Cat.6A |
| Special features | API support, ENC/DEC modes |
Connectors | |

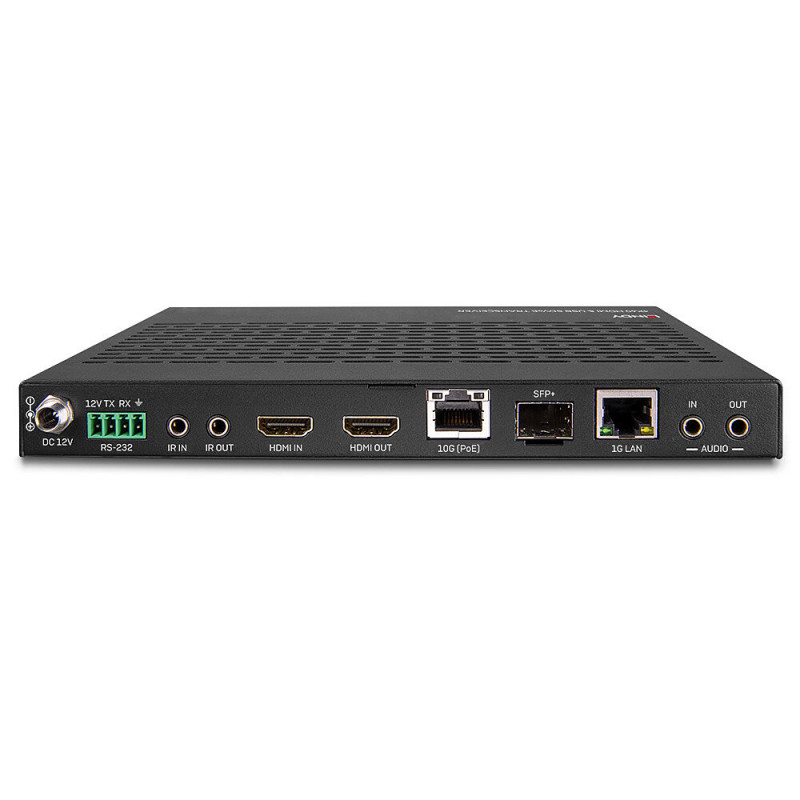

| Input ports | HDMI® Type A (Female), USB Type B (Female), 3.5mm Audio (Female), 3.5mm IR (Female) |
| Output ports | HDMI® Type A (Female), 2x USB Type A (Female), 3.5mm Audio (Female), 3.5mm IR (Female) |
| Two-way ports | RS-232 4-Pin Terminal Block |
| Network ports | 10G BaseT RJ-45 (Female), 10G SFP+ fiber socket, 1G LAN RJ-45 (Female) |
| Power supply | 5.5/2.1mm DC socket |
Physical properties | |
| Dimensions | 204x134x21.5mm (8.03x5.28x0.85in) |
| Housing material | Metal |
| Net weight | 0.98kg (2.16lb) |
| Working temperature | 0°C - 40°C (32°F - 104°F) |
| Safety temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20 - 90% RH (non-condensing) |
| Power requirements | 12VDC 2.5A |
| MTBF | 50000 hours |
| Color | Black |
www.lindy.lt
| Height | 75 mm |
| Length | 245 mm |
| Weight | 1300g |
| Width | 185 mm |
