AV Extender - Lindy 100m Cat.6 HDMI 4K60 HDBaseT Extender with PoC
Product reference:
14-4002888382076
The 100m Cat.6 HDMI 4K60 HDBaseT extender transmits HDMI signals up to 100 meters at 3840x2160@30Hz using a single Cat.6 cable. It supports IR control, RS-232 communication and has Power over Cat.6, ensuring easy installation.
AV Extender - Lindy 100m Cat.6 HDMI 4K60 HDBaseT Extender with PoC
Product reference:
14-4002888382076
The 100m Cat.6 HDMI 4K60 HDBaseT extender transmits HDMI signals up to 100 meters at 3840x2160@30Hz using a single Cat.6 cable. It supports IR control, RS-232 communication and has Power over Cat.6, ensuring easy installation.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
100M Cat.6 HDMI 4K60, IR RS-232 HDBaseT Extender With PoC, Receiver For Use With 38206 Only - Lindy
100m Cat.6 HDMI 4K60 HDBaseT Extender transmits HDMI signals up to 100 meters at 3840x2160@30Hz using a single Cat.6 cable. It supports IR control, RS-232 communication, and includes power via Cat.6 (PoC) for easy installation.
- Extends HDMI signals up to 100m (328ft) 4K resolution (3840x2160) at 30Hz, ensuring high-quality video transmission.
- Supports power via Cat.6 (PoC), simplifying installation as no separate power supply is required.
- Offers bidirectional RS-232 control and IR support for remote control and device monitoring.
- Compatible with HDMI 2.0 and HDCP 2.2, ensuring support for the latest audio and video standards.
Features | |
|---|---|
| Product Type | HDMI Extender |
| Model | 38207 |
Specifications | |
| AV Interface | HDMI |
| Interface Standard | HDMI 2.0 |
| Supported Bandwidth | 18Gbps |
| Maximum Distance | 100m (328.08ft) at 3840x2160@30Hz |
| Maximum Resolution | 3840x2160@60Hz 4:4:4 8bit |
| HDCP Support | 2.2 |
| EDID Past | Yes |
| Supported Audio Transmission Type | HDMI Audio Past, 2CH Analog |
| IR Support | 20KHz - 60KHz |
| Serial Interface | RS-232 (Bidirectional) |
| Transmission Protocol | HDBaseT |
| Transmission Medium | 1 x Cat.6 |
| Chip | VS010-A0 |
| Special Features | 2CH Analog Audio Extraction, PoC (Energy via Cat.6) |
Physical Properties | |
| Dimensions | 140x65x18mm (5.51x2.56x0.71in) |
| Weight | 0.478kg (1.05lb) |
| Housing | Metal |
| Operating Temperature | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20 - 90% RH (non-condensing) |
| Power Requirements | 24VDC 1A |
| Color | Black |
Connectors | |
| Receiver Input | RJ-45 (Female) |

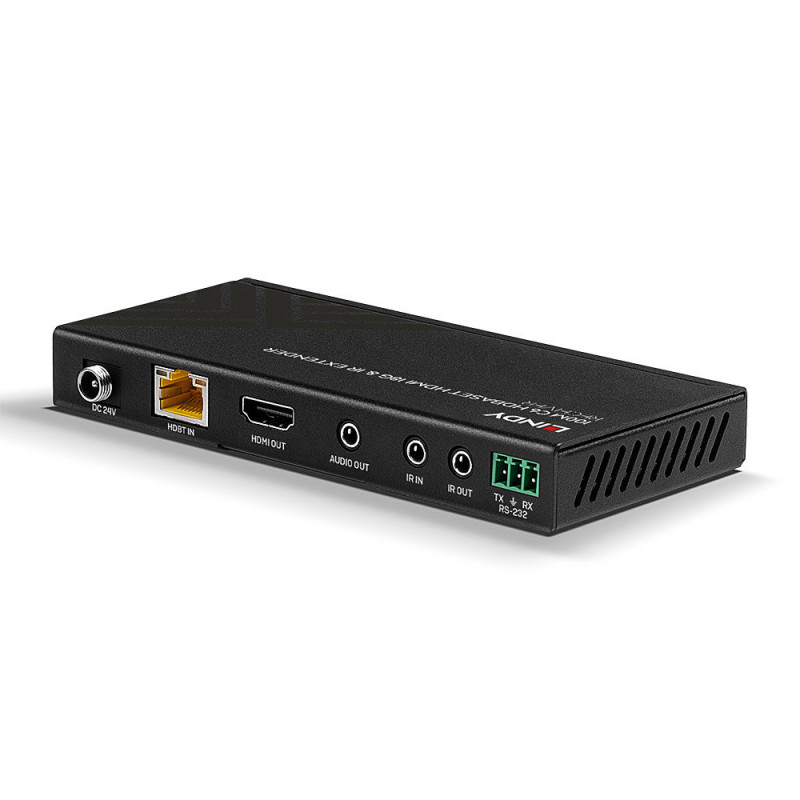

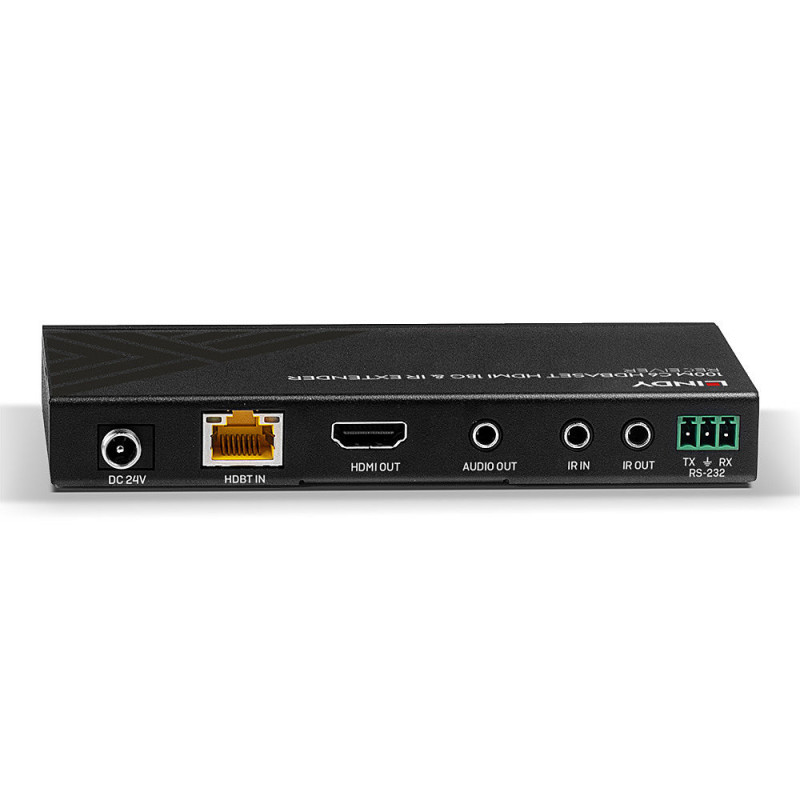

| Receiver Output | HDMI Type A (Female), 3.5mm (Female) |
| Bidirectional Connectors | RS-232 (Female) |
| Power Connector | 5.5/2.1mm |
Package Contents | |
| |
www.lindy.lt
| Height | 80mm |
| Length | 230mm |
| Weight | 644 grams |
| Width | 120mm |
