AV Controller - LINDY 4K30 HDMI and USB over IP System Controller, 100m, PoE, RS-232
Product reference:
14-4002888383950
Supports 4K30 HDMI and USB over IP transmission up to 100m. Features include PoE, RS-232 serial interface and compact metal housing.
AV Controller - LINDY 4K30 HDMI and USB over IP System Controller, 100m, PoE, RS-232
Product reference:
14-4002888383950
Supports 4K30 HDMI and USB over IP transmission up to 100m. Features include PoE, RS-232 serial interface and compact metal housing.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

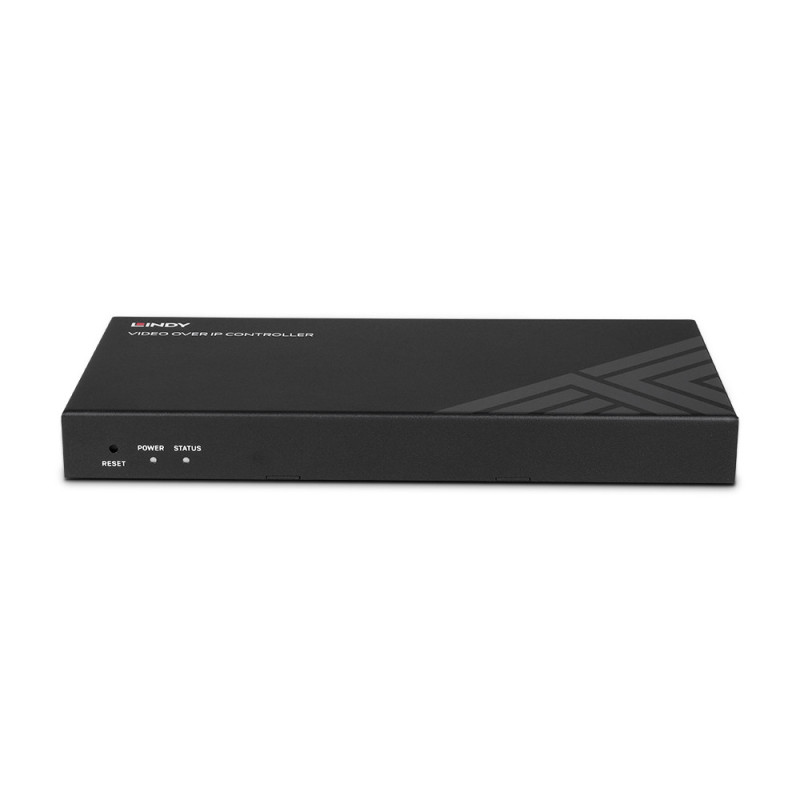

LINDY 4K30 HDMI USB over IP System Controller, 100m, PoE, RS-232
Facilitates 4K30 HDMI and USB transmission over IP up to 100m distance. Features: PoE, RS-232 serial interface and compact metal housing.
- Facilitates 4K30 HDMI and USB over IP transmission for high-quality video and audio.
- Maximum transmission distance - 100 meters (328.08 feet) using Cat.6 cable.
- Bidirectional RS-232 control included for various integrations.
- Compact metal housing with lightweight design for easy installation.
Features | |
|---|---|
| Product type | AV Controller |
| Model | 4K30 HDMI USB over IP System - Controller |
Specifications | |
| Lightened tape | 1Gbps |
| Maximum distance | 100m (328.08 feet) |
| IR support | 20-60KHz |
| Serial interface | RS-232 |
| Transmission protocol | IP |
| Transmission medium | Cat.6 |
| Special features | PoE |

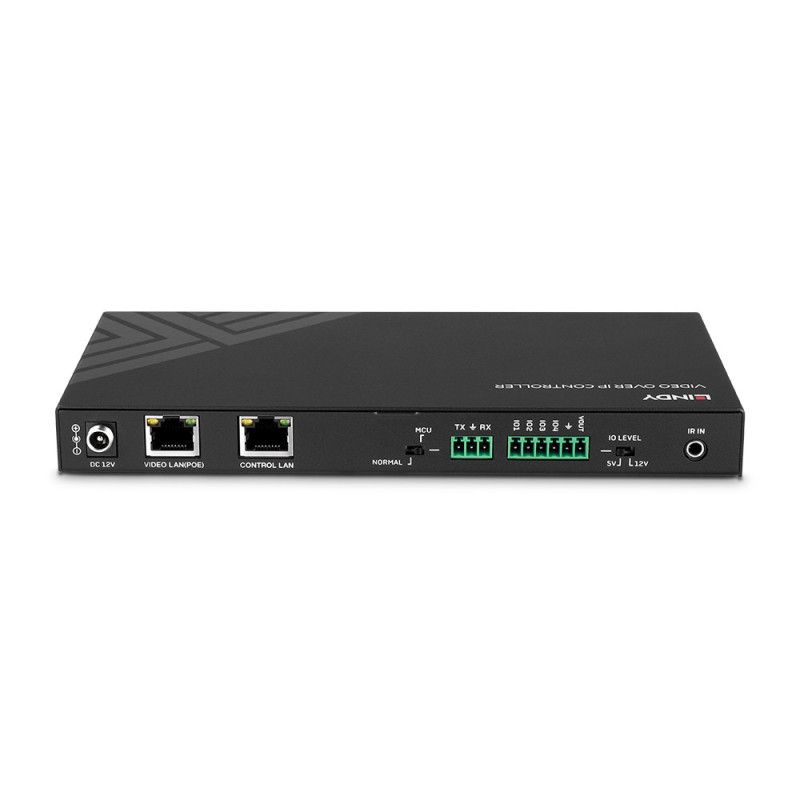

| Bidirectional ports | 1 x RS-232 (3-pin terminal block), 6-Pin Phoenix Connector |
| Power | 5.5/2.1mm |
Physical properties | |
| Dimensions (WxDxH) | 204 x 98.5 x 21.5 mm (8.03 x 3.88 x 0.85 in) |
| Housing material | Metal |
| Net weight | 0.74 kg (1.63 lb) |
| Working temperature | 0°C - 40°C (32°F - 104°F) |
| Storage temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20 - 90% RH (non-condensing) |
| Power requirements | 12VDC 1A |
| MTBF | 50,000 hours |
| Color | Black |
Additional information | |
| Packaging type | Cardboard box |
| Package dimensions | 255 x 157 x 77 mm (10.04 x 6.18 x 3.03 in) |
| Total weight | 0.95 kg (2.09 lb) |
| Product compliance | CE, UKCA, FCC, RoHS, REACH California Proposition 65 |
www.lindy.lt
| Height | 77 mm |
| Length | 255mm |
| Weight | 950g |
| Width | 157 mm |
