Audio Extractor - LINDY HDMI 4K60 Audio Extractor 18Gbps HDCP 2.2 Metal Housing
Product reference:
14-4002888383615
Supports HDMI 2.0 with a maximum resolution of 3840x2160@60Hz and outputs stereo or multi-channel audio via SPDIF and analog L/R outputs. Features include 18Gbps bandwidth, HDCP 2.2/1.4 support, and a compact metal housing.
Audio Extractor - LINDY HDMI 4K60 Audio Extractor 18Gbps HDCP 2.2 Metal Housing
Product reference:
14-4002888383615
Supports HDMI 2.0 with a maximum resolution of 3840x2160@60Hz and outputs stereo or multi-channel audio via SPDIF and analog L/R outputs. Features include 18Gbps bandwidth, HDCP 2.2/1.4 support, and a compact metal housing.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 3
business days
LINDY HDMI 4K60 Audio Extractor 18Gbps HDCP 2.2 Metal Housing
Supports HDMI 2.0 with maximum resolution 3840x2160@60Hz and outputs stereo or multi-channel audio via SPDIF and analog L/R outputs. Features: 18Gbps bandwidth, HDCP 2.2/1.4 support and compact metal housing.
- Extracts stereo or multi-channel audio from HDMI® sources to various audio outputs.
- Supports 4K resolution 60Hz, ensuring high-quality video performance.

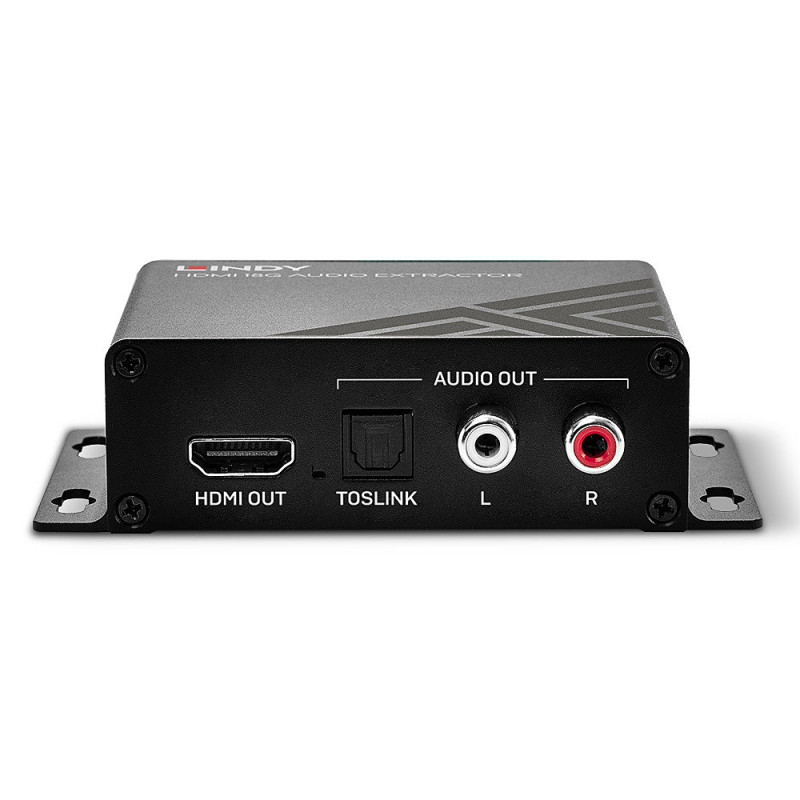

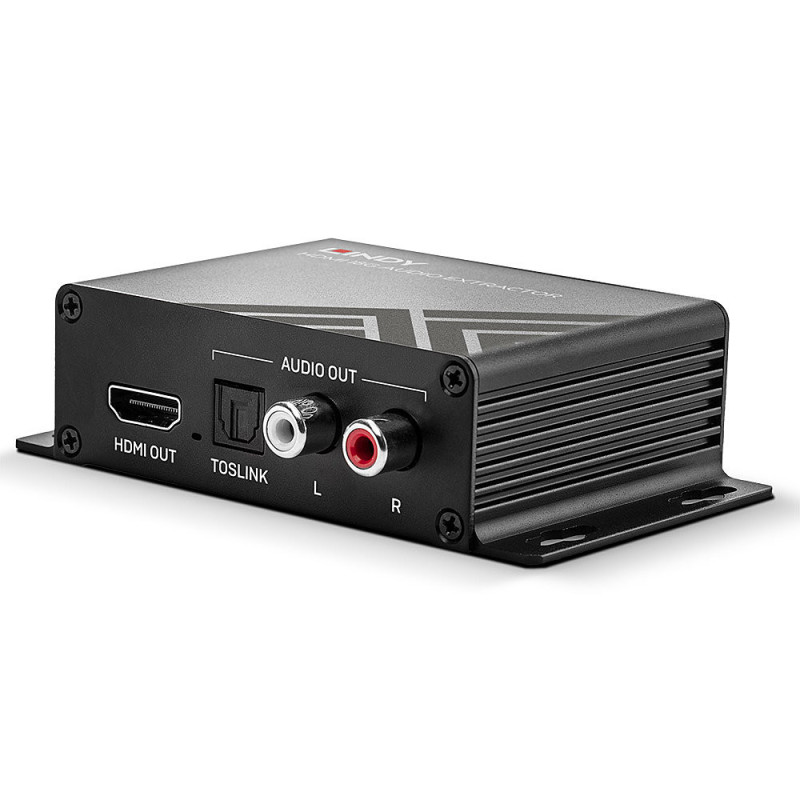

- Multiple audio output options are included: SPDIF, analog L/R, and HDMI® pass-through.
- Compact and durable metal housing with a lightweight design for easy installation.
Features | |
|---|---|
| Product Type | Audio Extractor |
| Model | HDMI 4K60 Audio Extractor |
Specifications | |
| Video Interface | HDMI® 2.0 |
| Supported Bandwidth | 18Gbps |
| Maximum Resolution | 3840x2160@60Hz (4:4:4 8bit, 4:2:2 12bit) |
| HDCP Support | 2.2 / 1.4 |
| Audio Interface | SPDIF, Analog L/R |
| Chip | IT66321 |
| Maximum Supported Audio Sampling Frequency | 24-bit/192kHz |
| Input Impedance | 1KΩ |
| Output Impedance | 10KΩ |
| Output Voltage | 5V 1A |
| Frequency Response | lt;3db; 20Hz - 20kHz |
| Signal to Noise Ratio | 85dB |
| Special Features | CEC Throughput |
Connectors | |
| Input Connector | HDMI® Type A (Female) |
| Output Connectors | HDMI® Type A (Female), SPDIF (Female), Analogue L/R (Female), USB Micro-B (Female) |
| Power Connector | 5.5/2.1mm |
Physical Properties | |
| Dimensions | 104.4 x 64 x 28.3 mm (4.11 x 2.52 x 1.11 in) |
| Housing Material | Metal |
| Net Weight | 0.118 kg (0.26 lb) |
| Operating Temperature | -5°C to 55°C (23°F to 131°F) |
| Storage Temperature | -5°C to 55°C (23°F to 131°F) |
| Humidity | 5 - 90% RH (non-condensing) |
| Power Requirements | 5VDC 1A |
| Color | Black |
www.lindy.lt
| Height | 153mm |
| Length | 208 mm |
| Weight | 350 g |
| Width | 55 mm |
