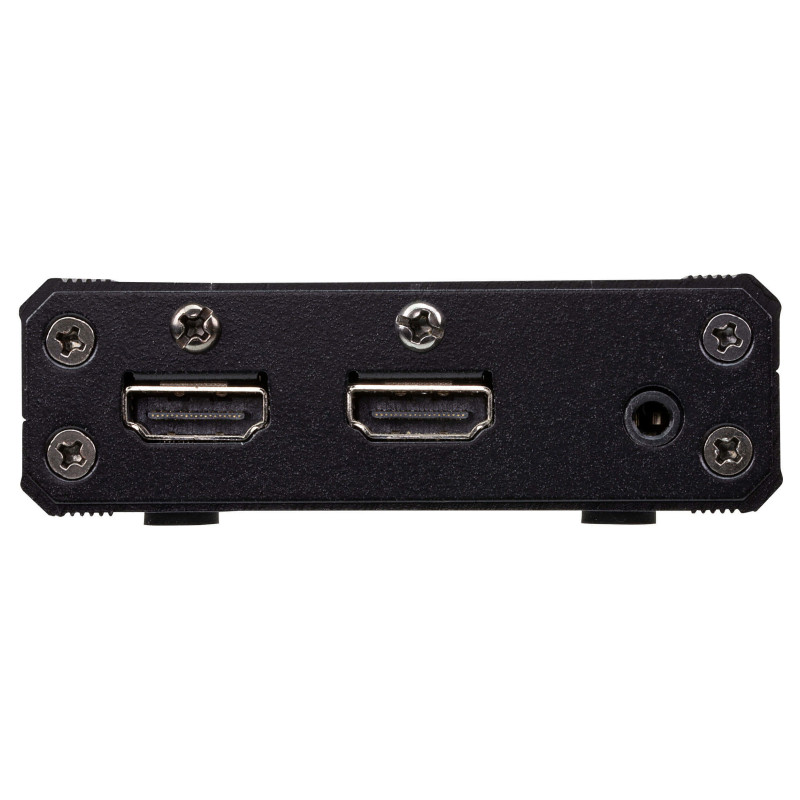

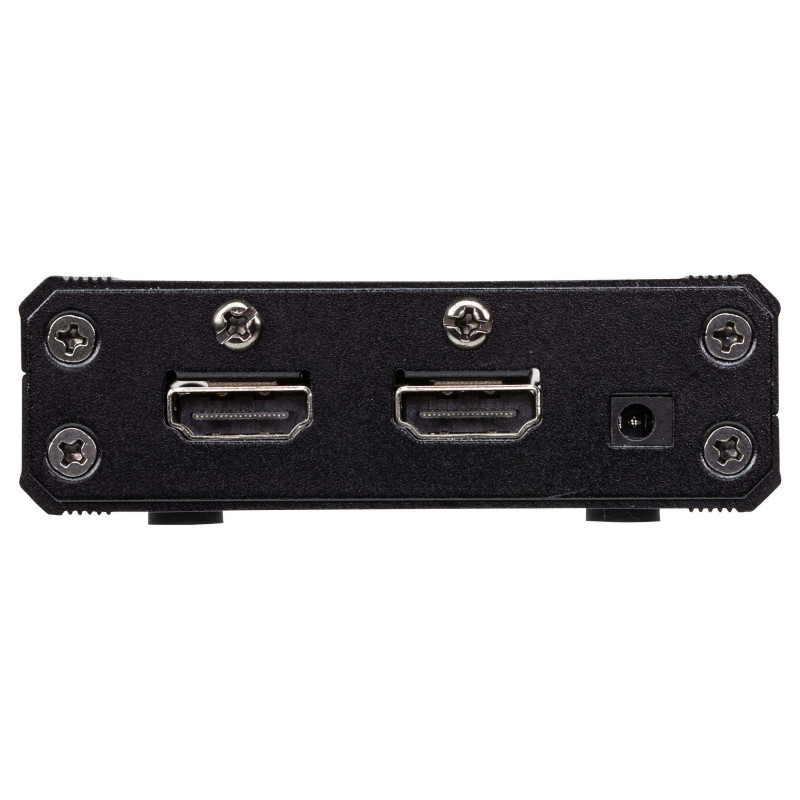

ATEN VS381B video switch

ATEN 3-Port True 4K HDMI Switch. Video port type: HDMI. Material: Metal, Product colour: Black, Maximum refresh rate: 60 Hz. Power consumption (typical): 1.46 W. Width: 71.6 mm, Depth: 79 mm, Height: 25.5 mm

The VS381B 3-Port True 4K HDMI Switch with Auto Switching provides you to switch 3 HDMI input sources to an HDMI display. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, HDR, 3D, Deep Color, and HD lossless audio formats. Furthermore, the VS381B offers switching methods between HDMI sources by front panel pushbuttons and IR remote control, enabling users to effortlessly select desired input.

Featuring above functionalities provides you a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more.

Package Contents

- 1x VS381B 3-Port True 4K HDMI Switch
- 1x USB to DC Power Cord
- 1x IR Remote Control
- 1x IR Receiver
- 1x User Instructions

Ports & interfaces

Video port type: HDMI
HDMI ports quantity: 4
HDMI in: 3
Number of HDMI outputs: 1
Feature: 3.5 mm (1/8-inch) in
Feature: DC-in jack

Features

Material: Metal
Product colour: Black
Feature: Plug and Play
Feature: HDCP
Maximum refresh rate: 60 Hz
Maximum operating distance: 5 m
Supported graphics resolutions: 3840 x 2160, 4096 x 2160
Bandwidth: 18 Gbit/s
Bandwidth: 600 MHz
Maximum resolution: 4096 x 2160 pixels
Feature: External power adapter
Feature: 3D
HD type: 4K Ultra HD
Dolby technologies: Dolby Vision
Input impedance: 100 Ω
HDCP version: 2.2

Power

Power consumption (typical): 1.46 W

Weight & dimensions

Width: 71.6 mm
Depth: 79 mm
Height: 25.5 mm
Weight: 150 g

Packaging content

Feature: AC adapter included

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Storage relative humidity (H-H): 0 - 80%

Logistics data

Harmonized System (HS) code: 85176990
