ATEN UH3233

ATEN UH3233. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Product colour: Black, HD type: 4K Ultra HD, Maximum digital resolution: 3840 x 2160 pixels. Power source type: USB, Power connector: USB Type-C. Width: 93.7 mm, Depth: 93 mm, Height: 26.8 mm. Quantity per pack: 1 pc(s), Package width: 55 mm, Package depth: 155 mm

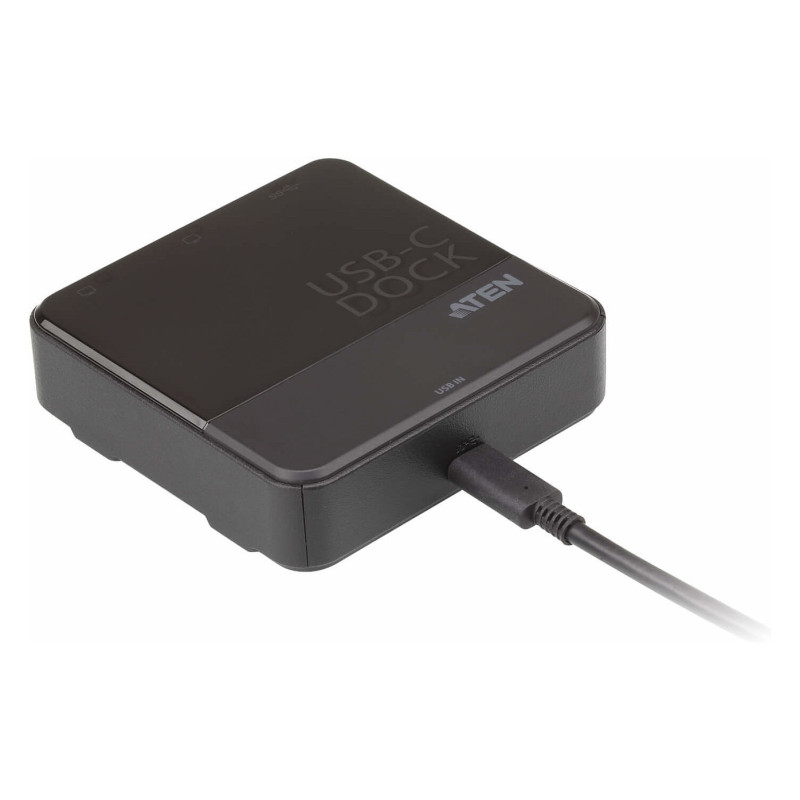

The ATEN UH3233 is a USB-C Dual-HDMI Mini Dock which transforms your USB-C device to a dual monitor workstation. It's compliant with the latest USB 3.2 Type-C specifications and supports dual display mode. The UH3233 can route video from the source device to two HDMI monitors, splitting the video transmission for a dual-view display via a single cable while maintaining a high quality resolution up to 1080p.

The UH3233 uses USB-C connections to deliver reliable highspeed data transfers. You can connect up to 128 additional peripherals, including Dual HDMI and USB 3.2 Gen1 devices. The UH3233's slim and light design makes it ideal to maximize your workspace and travel with for business on the go.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C

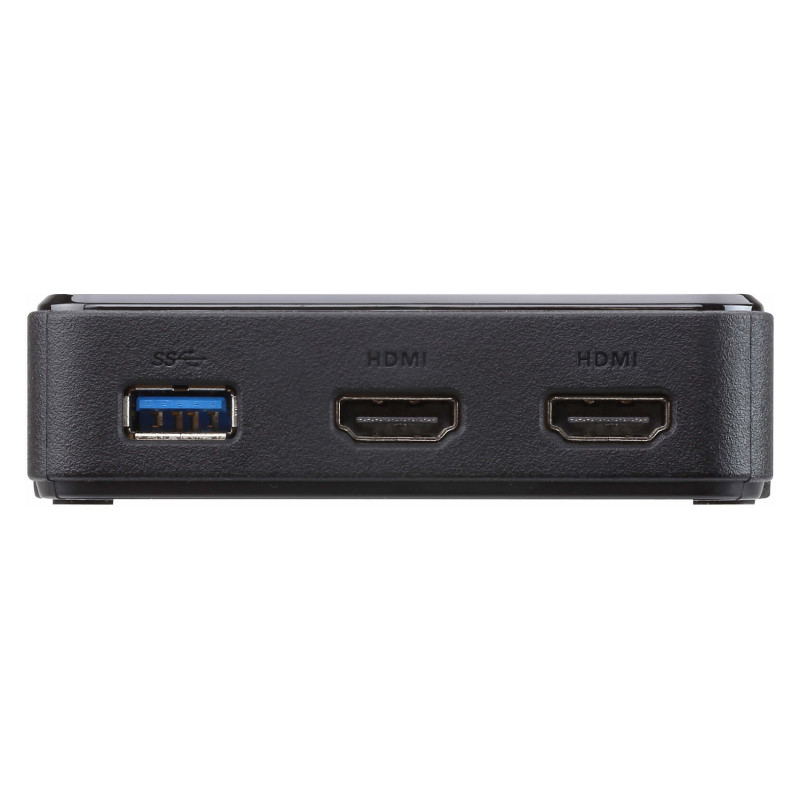

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

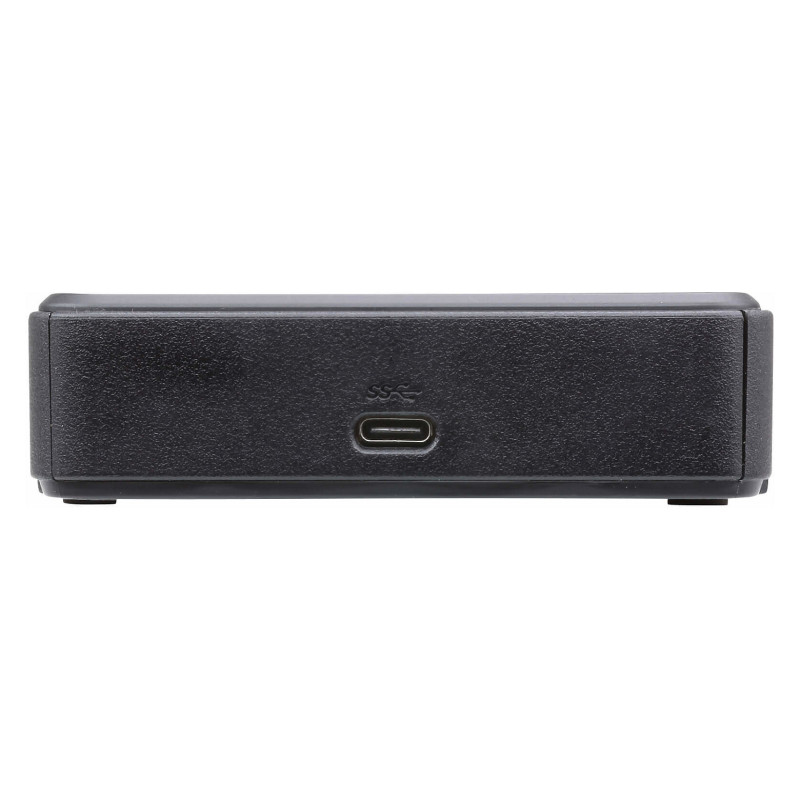

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 2

Performance

HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Number of displays supported: 2
Product colour: Black
LED indicators: Yes
Feature: Plug and Play
Housing material: Plastic
Compatibility: UH3231, UH3230, UH3232, UH7230, CS1842, CS1844

Power

Power source type: USB
Power connector: USB Type-C

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 93.7 mm
Depth: 93 mm
Height: 26.8 mm
Weight: 100 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 55 mm
Package depth: 155 mm
Package height: 185 mm

Packaging content

Cables included: USB Type-C
Feature: Quick start guide
Feature: Manual

Logistics data

Master (outer) case width: 297 mm
Master (outer) case length: 385 mm
Master (outer) case height: 33 mm
Master (outer) case gross weight: 5.9 kg
Master (outer) case net weight: 2.8 kg
Harmonized System (HS) code: 84733020
