ATEN PE1216G-AX-G power distribution unit (PDU)

ATEN 16-Port 0U Power Distribution Unit (PDU) (16 x C13) (IP-ready). PDU types: Metered, Housing material: Metal, Product colour: Black. AC outlets quantity: 16 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Cable length: 3 m. Nominal input voltage: 100-240 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz. Certification: CE, C-Tick, TUV-CB, GOST

-PE1216A: 100~120V; North America, Mexico, Japan, Taiwan
-PE1216B: 200~240V; North America, Mexico, Japan, Taiwan
-PE1216G: International

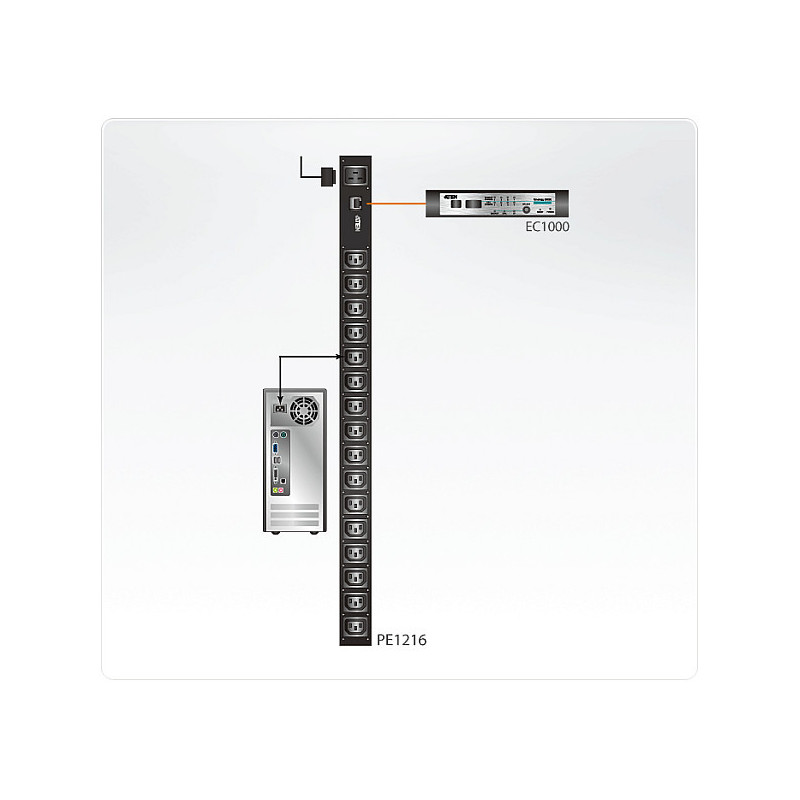

The PE1216 Energy PDU contains 16 AC outlets and is available in IEC or NEMA socket configurations. The PE1216 Energy PDU features a space-saving 0U design that allows it to be mounted vertically on the outside of a rack, resulting in a more efficient use of space in the server room, while providing 16 AC outlets.
1x PE1216 Energy PDU
1x Power Cord
(310 cm- Seperate cable with power connectors C19 and C20)
1x Mounting Kit
1x User Instructions

Design

PDU types: Metered
Housing material: Metal
Product colour: Black

Ports & interfaces

AC outlets quantity: 16 AC outlet(s)
Power plug: C20 coupler
AC outlet types: C13 coupler
Ethernet LAN (RJ-45) ports: 1

Features

Cable length: 3 m

Power

Nominal input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
Maximum current: 16 A
Nominal output voltage: 100 - 240 V

Certificates

Certification: CE, C-Tick, TUV-CB, GOST

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Storage relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 44 mm
Depth: 730 mm
Height: 44 mm
Weight: 1.88 kg

Packaging content

Cables included: AC
Feature: Manual

Packaging data

Package weight: 2.18 kg
Package width: 90 mm
Package depth: 790 mm
Package height: 109 mm

Logistics data

Master (outer) case net weight: 3.76 kg
Master (outer) case width: 203 mm
Master (outer) case length: 806 mm
Master (outer) case height: 127 mm
Master (outer) case gross weight: 4.85 kg
Products per master (outer) case: 2 pc(s)
