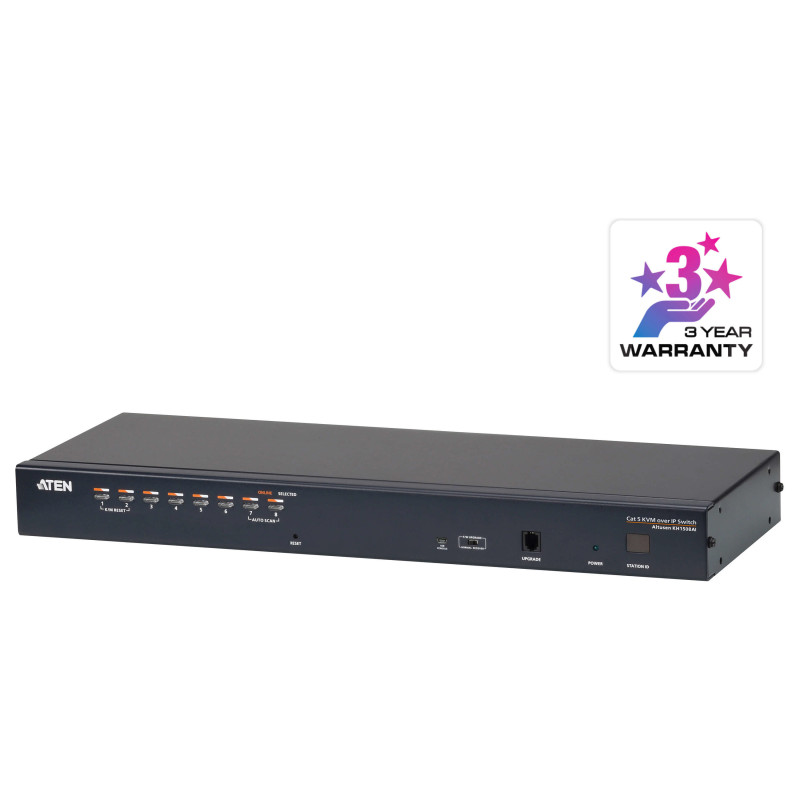

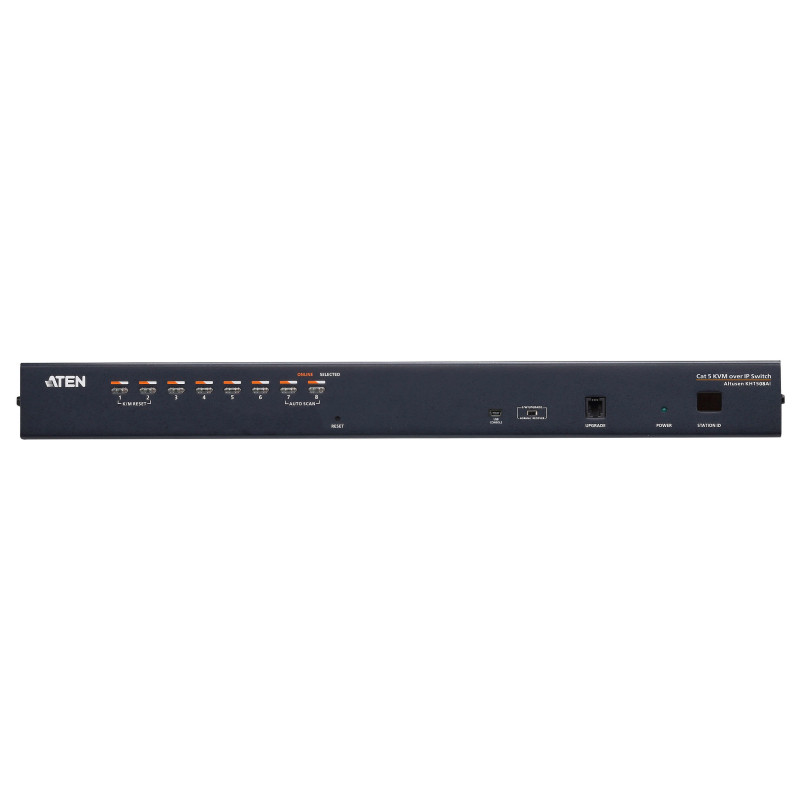

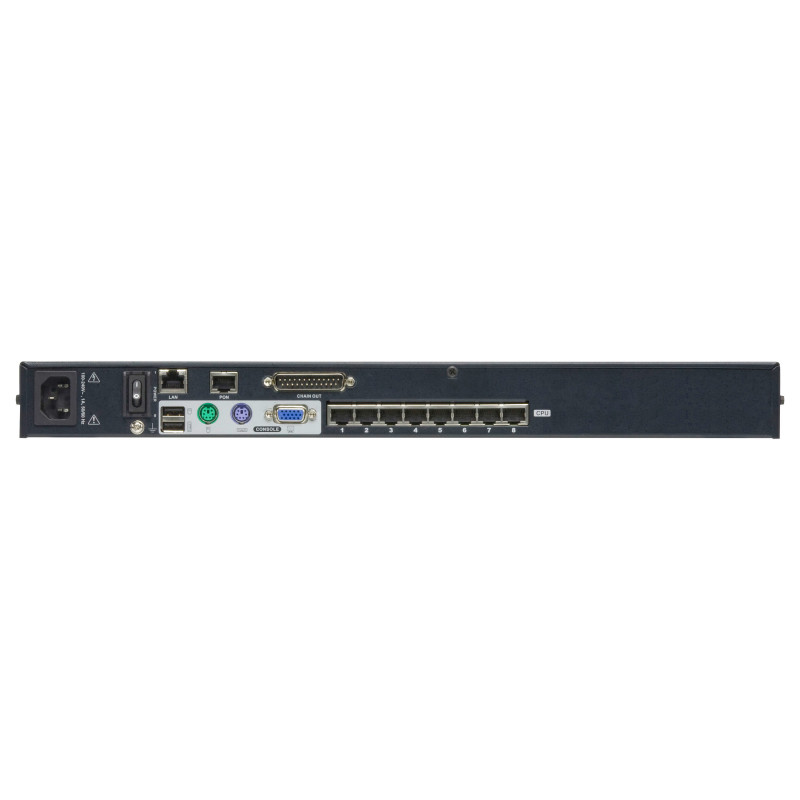

ATEN KH1508AI-AX-G KVM switch

ATEN 8-Port CAT5e/6 KVM Over IP Switch. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 437.2 mm, Depth: 163.6 mm, Height: 44 mm

The KH1508Ai Cat 5 High-Density KVM over IP Switch offers 8 computer port configurations in a 1U-high housing for convenient rack mounting. They allow local and remote operators to monitor and access the entire enterprise data center over the Internet using a web-based browser.

The KH1508Ai features RJ-45 connectors and Cat 5e/6 cable to link to the computers and supports multiplatform. This ensures that high quality signals can travel over long distance- up to 50m* without the need for KVM extenders. Utilizing KVM Adapter Cables for the final linkup, the KH1508Ai permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.

In addition to TCP/IP connectivity, the KH1508Ai provides console ports for a locally attached USB or PS/2 console and a Laptop USB console (LUC) - allowing access and control from the data center as well as over the Net.
1x KH1508Ai Cat 5 High-Density KVM over IP Switch
1x Firmware Upgrade Cable
1x LIN6-04U1-M18G Laptop USB Console Cable USB-A to Micro USB-B
1x LIN2-481K-E12G Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions

Ports & interfaces

Number of computers controlled: 8
Keyboard port type: USB, PS/2
Mouse port type: USB, PS/2
Video port type: VGA
Console ports: PS/2, USB A, VGA (D-Sub)
Console USB ports quantity: 2
Feature: USB hub
PS/2 ports quantity: 2

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 8

Performance

HD type: WUXGA
Maximum resolution: 1920 x 1200 pixels
Video bandwidth: 60 Hz
Scan interval: 1,255 s

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes

Power

Power source: AC
Input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 1 A
Power consumption (typical): 8.7 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Storage relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 437.2 mm
Depth: 163.6 mm
Height: 44 mm
Weight: 3.18 kg

Packaging data

Package width: 131 mm
Package depth: 540 mm
Package height: 233 mm
Package weight: 3.58 kg

Packaging content

Feature: Quick installation guide
Feature: Manual

Logistics data

Master (outer) case net weight: 9.54 kg
Harmonized System (HS) code: 85176200
Master (outer) case width: 420 mm
Master (outer) case length: 565 mm
Master (outer) case height: 258 mm
Master (outer) case gross weight: 11.4 kg
Products per master (outer) case: 3 pc(s)
