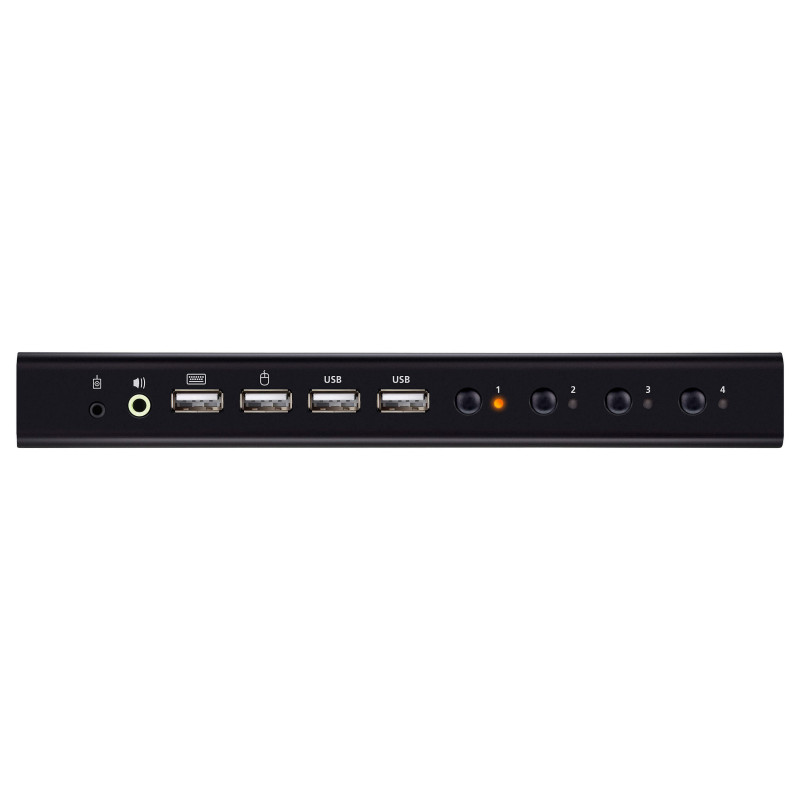

ATEN CS784H KVM switch

ATEN 4-Port USB 4K HDMI KVMP™ Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, Plastic. Power source: DC, Power consumption (typical): 1.73 W. Width: 81.7 mm, Depth: 202.3 mm, Height: 25 mm
The CS784H is a 4-port desktop KVM switch designed for those who demand a streamlined workflow and uncompromising visual quality across multiple systems. It enables fast, reliable switching between four HDMI computers with up to 4K DCI resolution, while sharing a single keyboard, monitor, mouse, audio output, and USB peripherals through one KVM console. With multiple switching methods - including pushbuttons, hotkeys, and a remote port selector - the CS784H is the perfect companion for desktop setups in offices, content creation, remote work, design, and more.
Space-Efficient Desktop Setup
The CS784H simplifies control of up to four HDMI computer systems by sharing a single keyboard, monitor, and mouse from one KVM console, delivering a clutter-free and organized desktop workspace.
Superior Visual Clarity
The KVM switch is designed to deliver exceptional visual performance, supporting 1080p@60, 4K@60, and up to 5120×1440@60.

USB Peripheral Sharing
Media and data sharing between computers is fast and effortless via plug-n-play connection (e.g. hard drive, flash drive, printer, etc) to the USB ports on the KVM switch.
Flexible Port Selection
Port switching is quick and flexible via pushbuttons, hotkeys, or the remote port selector - whichever best fits your workflow.

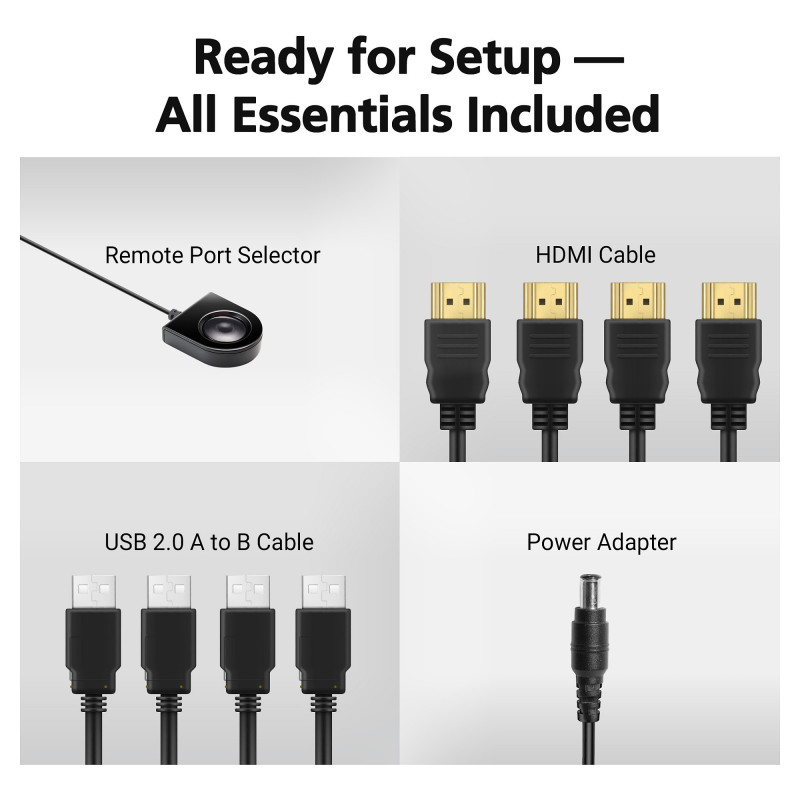

All Essentials Packed. No Extras Needed.
Everything you need is included - 4 HDMI cables, 2 USB 2.0 A to B cables, 1 power adapter, and 1 remote port selector (wired switch button) - for instant setup.

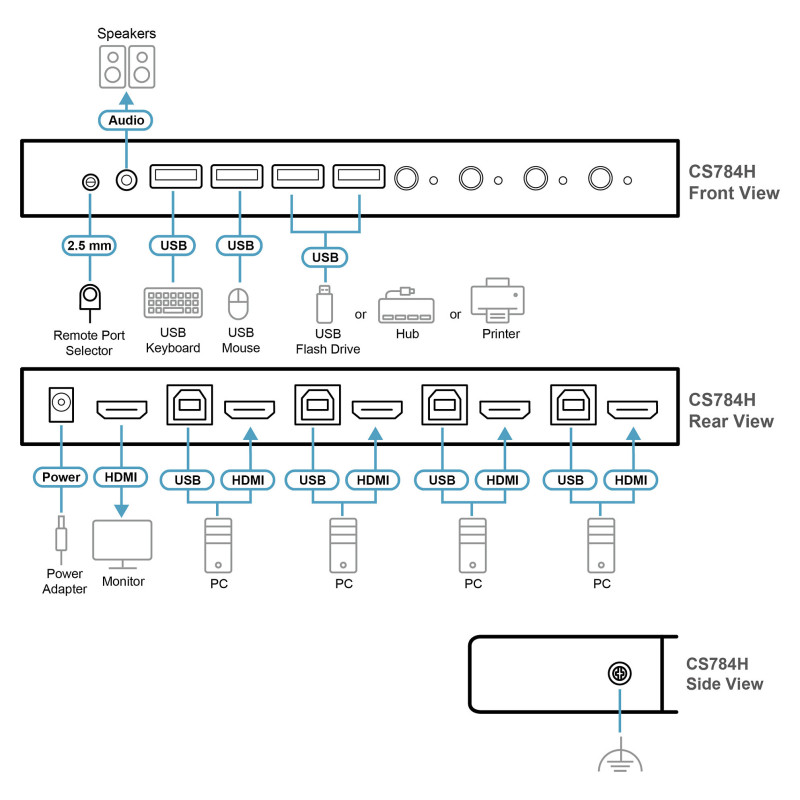

Applications
The CS784H enables centralized control of up to 4 HDMI computers via one keyboard, mouse, and monitor, delivering a tidy and efficient desktop workspace where multitasking is streamlined and cable clutter is minimized.

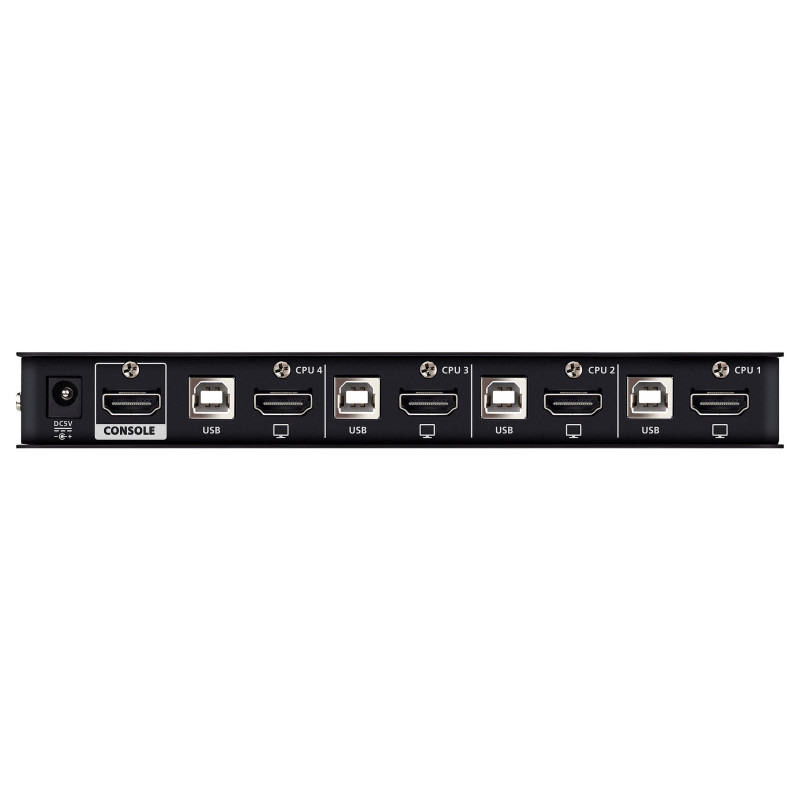

Ports interfaces

Number of computers controlled: 4
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI
HDMI ports quantity: 4
USB 2.0 Type-B ports quantity: 4
Console ports: 3.5mm headphone, HDMI, USB A
Console USB ports quantity: 2
Console HDMI ports quantity: 1
Feature: USB hub
USB 2.0 Type-A hub ports quantity: 2
Feature: Audio connections

Performance

HD type: 4K Ultra HD
Maximum resolution: 4096 x 2160 pixels
Video bandwidth: 60 Hz
Scan interval: 1,99 s

Design

Product colour: Black
Housing material: Metal, Plastic
LED indicators: Yes
Feature: Push button

Power

Power source: DC
Power consumption (typical): 1.73 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight dimensions

Width: 81.7 mm
Depth: 202.3 mm
Height: 25 mm
Weight: 470 g

Packaging data

Package width: 100 mm
Package depth: 283 mm
Package height: 173 mm
Package weight: 1.52 kg

Logistics data

Master (outer) case width: 292 mm
Master (outer) case length: 517 mm
Master (outer) case height: 194 mm
Master (outer) case gross weight: 8.3 kg
Country of origin: Thailand
