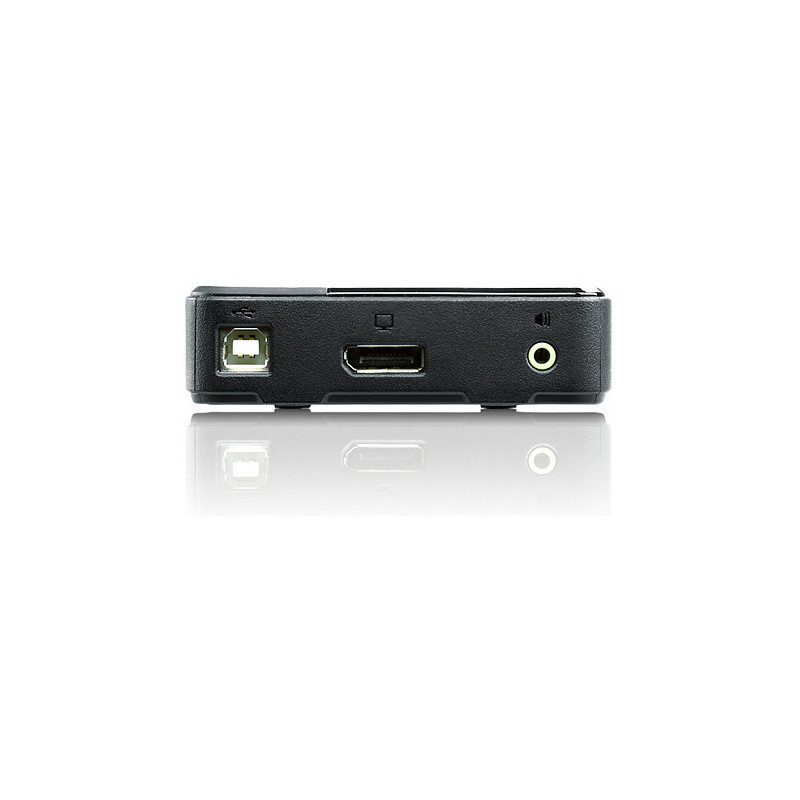

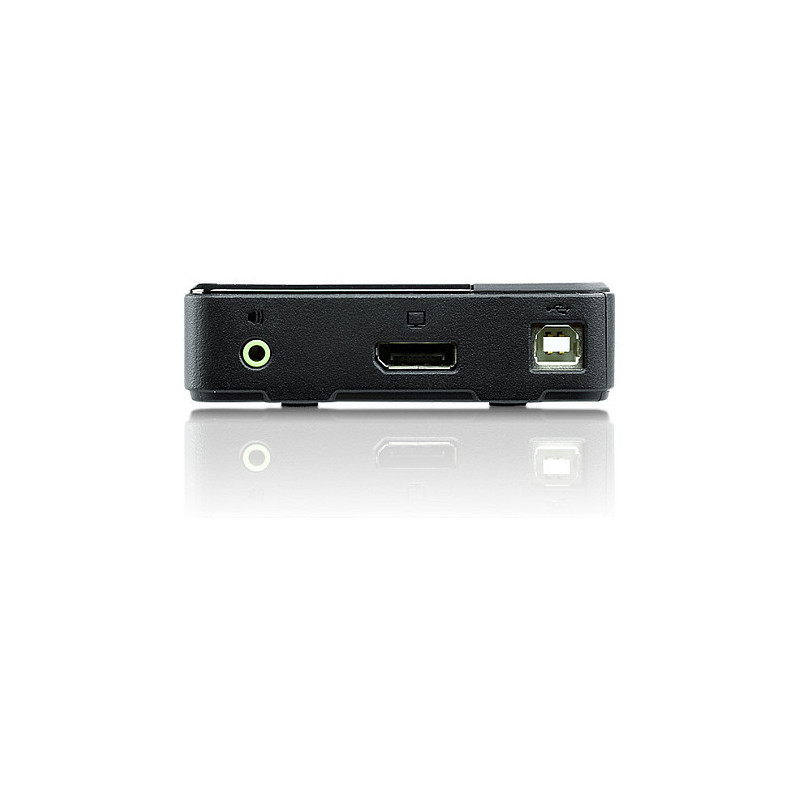

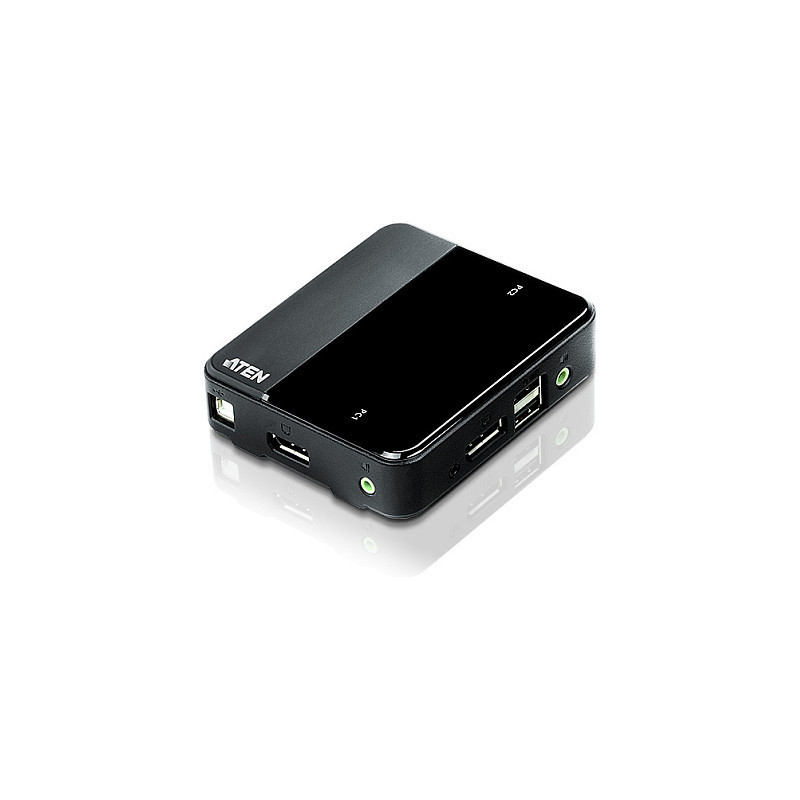

ATEN CS782DP-AT KVM switch

ATEN 2-Port USB 4K DisplayPort 1.2 KVM Switch (KVM cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Plastic. Power source: DC, Input voltage: 5 V, Power consumption (typical): 2.18 W. Width: 93 mm, Depth: 93.7 mm, Height: 26.8 mm
With the ever-growing demand for higher video quality and the evolution of DisplayPort technology, 4K-enabled computers and displays are now widely adopted in visually-intensive and commercial applications. Offering up to 4K resolution, the ATEN CS782DP is at home amongst these demanding scenarios and technological advancements.
1x CS782DP 2-Port USB DisplayPort KVM Switch
2x LIN5-20K1-K12G DisplayPort Cables
2x LIN6-04U1-V1BG USB Cables
2x LIN5-0205-21CG Audio Cables
1x Remote Port Selector
1x User Instructions

Ports interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
DisplayPorts quantity: 2
USB 2.0 Type-B ports quantity: 2
Console ports: 3.5mm headphone, DisplayPort, USB A
USB connector type: USB Type-A, USB Type-B
Feature: Audio connections
Headphone outputs: 1
Number of microphone inputs: 1

Performance

HD type: 4K Ultra HD
Maximum resolution: 4096 x 2160 pixels
Video bandwidth: 60 Hz
Scan interval: 3,5,10,20 s

Design

Product colour: Black
Housing material: Plastic
LED indicators: Yes
Feature: Hot keys

Power

Power source: DC
Input voltage: 5 V
Power consumption (typical): 2.18 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Storage relative humidity (H-H): 0 - 80%

Weight dimensions

Width: 93 mm
Depth: 93.7 mm
Height: 26.8 mm
Weight: 543 g

Packaging data

Package width: 59 mm
Package depth: 239 mm
Package height: 175 mm
Package weight: 687 g

Packaging content

Feature: Quick installation guide
Feature: Manual

Logistics data

Master (outer) case net weight: 5.43 kg
Harmonized System (HS) code: 85176200
Master (outer) case width: 328 mm
Master (outer) case length: 497 mm
Master (outer) case height: 196 mm
Master (outer) case gross weight: 7.71 kg
Products per master (outer) case: 10 pc(s)
