ATEN CS742H KVM switch

ATEN 2-Port USB 4K HDMI Dual-Display KVMP Switch (Cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: Dual QHD, Maximum resolution: 5120 x 1440 pixels, Scan interval: 1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99 s. Product colour: Black, Housing material: Metal, Plastic. Power consumption (typical): 3.63 W. Width: 81.7 mm, Depth: 202.3 mm, Height: 25 mm
The CS742H is a 2-port KVM switch designed to boost multitasking productivity for a 2-PC, dual-display desktop. With a single keyboard and mouse, you can maintain a tidy workspace while simplifying control of two HDMI computers and two HDMI displays.
With the CS742H, you can benefit from:
- Intuitive and flexible switching via pushbutton, hotkey, mouse, or the remote port selector
- A 2-port USB hub for peripheral sharing with a simple plug-and-play setup
- A pristine visual experience up to 4K60
- Multi-system compatibility across Windows, Mac, and Linux
Whether you're a professional seeking a productivity booster for your daily office routines, a content creator, a hybrid worker, or someone looking for a better entertainment setup, the CS742H is definitely your perfect desktop companion.
Superior Visual Clarity
The KVM switch is designed to deliver exceptional video performance, supporting up to 4K60 visual clarity.

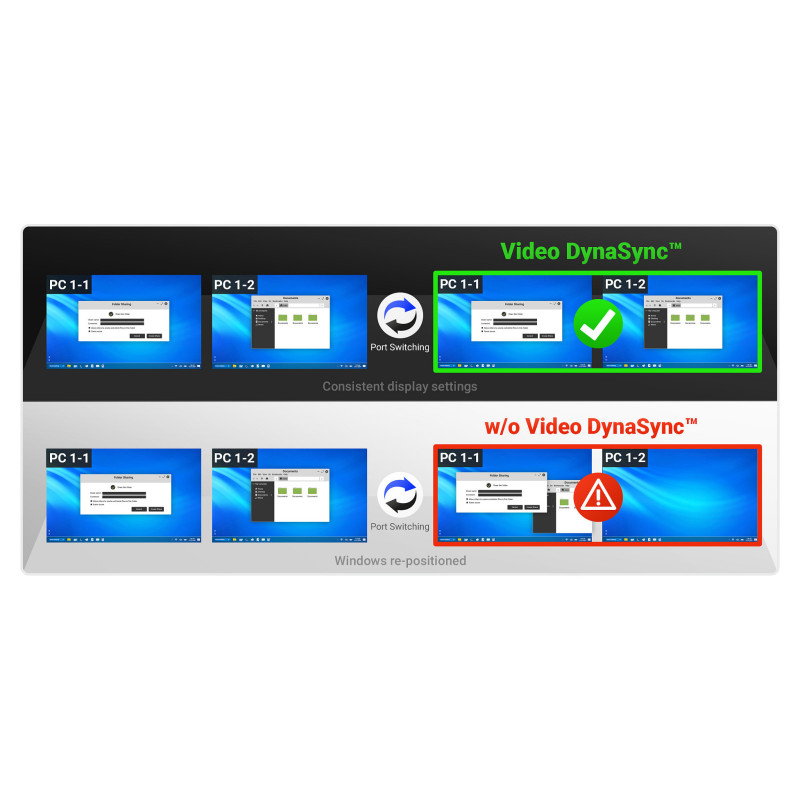

Video DynaSync™
Built with ATEN's exclusive Video DynaSync™, the CS742H optimizes display resolution by preserving consistent window sizes and icon positions during every port switch, ensuring a smooth, flicker-free multitasking experience.
USB 2.0 Peripheral Hub
Media and data sharing between computers is fast and effortless via plug-n-play connections (e.g. hard drive, flash drive, printer, etc) to the USB ports on the KVM switch, without the need for an extra docking station.

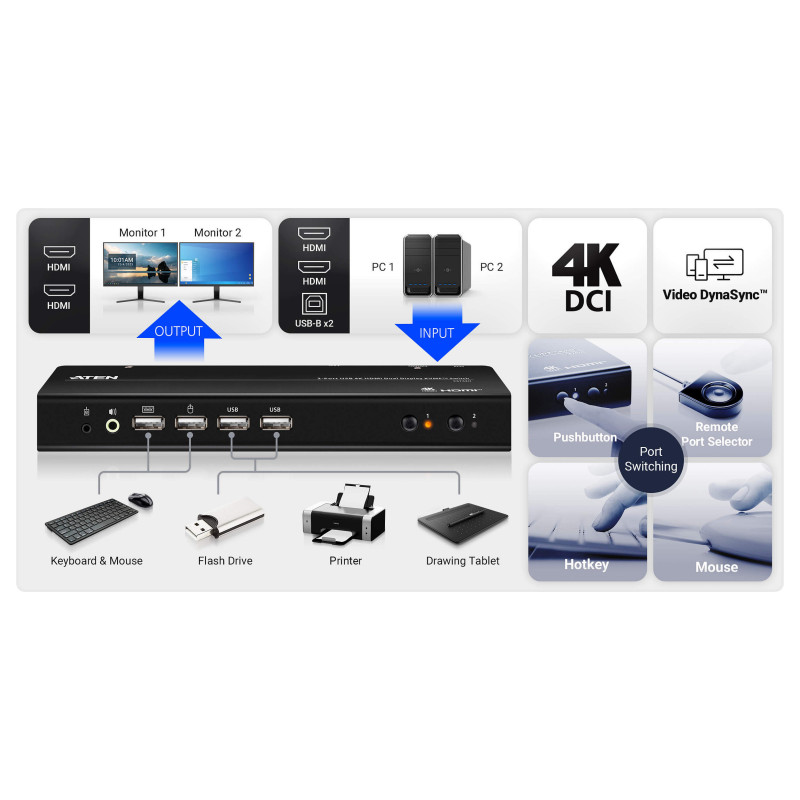

Flexible Port Switching
Port switching is quick and flexible via pushbuttons, hotkeys, mouse or the remote port selector - whichever best fits your workflow.
All Cables Included. No Extras Needed.
Everything you need is included - 4 HDMI cables, 2 USB 2.0 A to B cables, 1 power adapter, and 1 remote port selector (wired switch button) - for instant setup.
Applications
The CS742H promotes a streamlined multitasking workflow and delivers a tidy setup with a single keyboard and mouse on a 2-PC, dual-display desktop, making it perfect for any personal or professional routine.

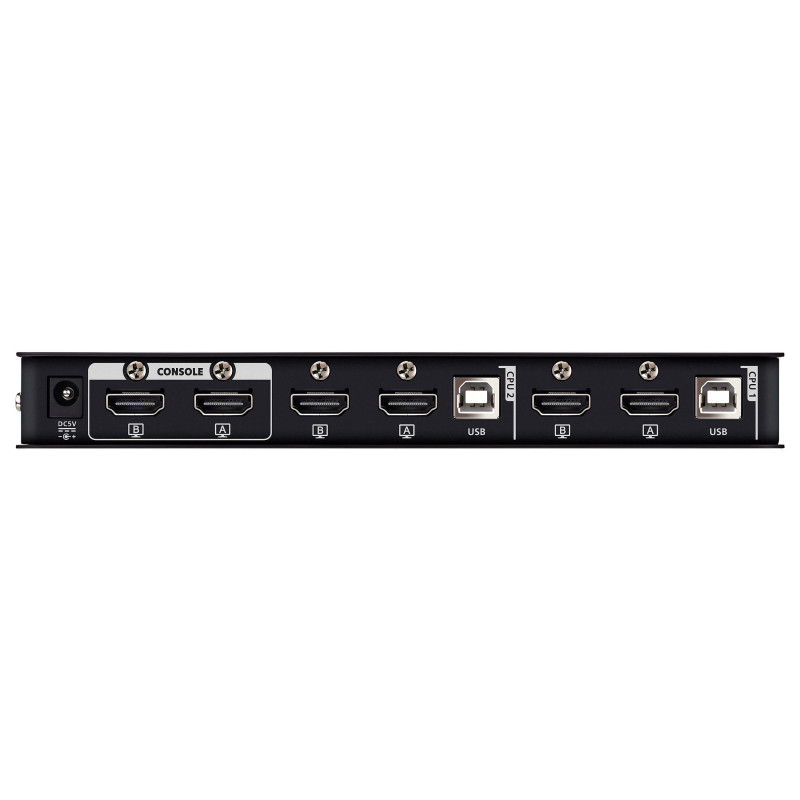

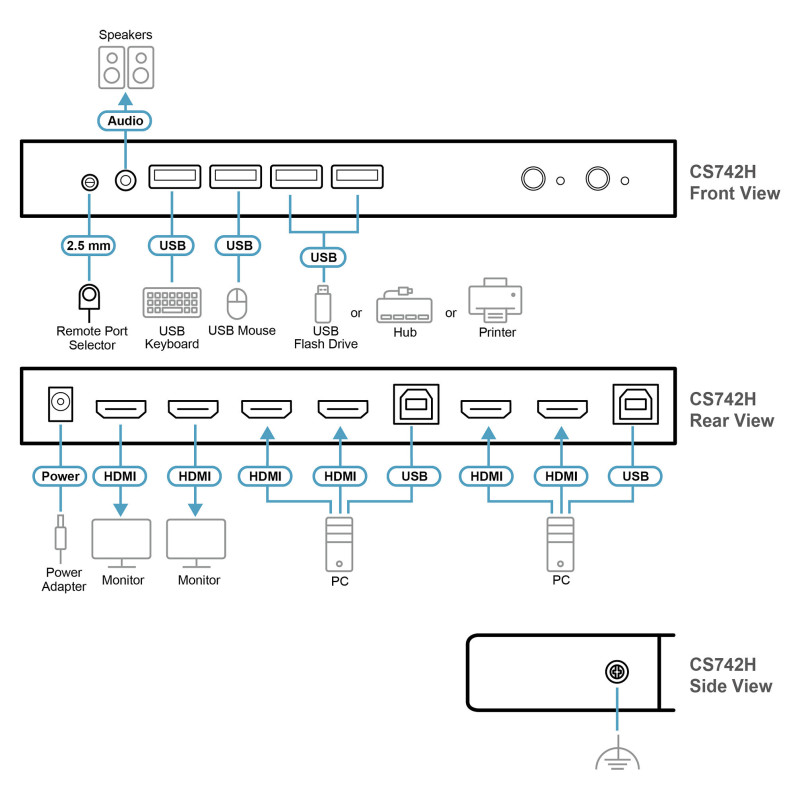

Ports interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI
HDMI ports quantity: 4
USB 2.0 Type-B ports quantity: 2
Console ports: HDMI, USB A, 3.5mm headphone
Console USB ports quantity: 2
Console HDMI ports quantity: 2
USB hub: Yes
USB 2.0 Type-A hub ports quantity: 2
DC-in jack: Yes

Performance

HD type: Dual QHD
Maximum resolution: 5120 x 1440 pixels
Scan interval: 1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99 s
Hot-Plug support: Yes
Plug and Play: Yes
Firmware upgradeable: Yes

Design

Product colour: Black
Housing material: Metal, Plastic
LED indicators: Yes
Push button: Yes
Hot keys: Yes

Display

Built-in display: No

Power

Power consumption (typical): 3.63 W

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight dimensions

Width: 81.7 mm
Depth: 202.3 mm
Height: 25 mm
Weight: 1.21 kg

Packaging data

Package width: 95 mm
Package depth: 265 mm
Package height: 220 mm
Package volume: 5550.101932032 cm³
Package weight: 1.33 kg

Packaging content

Cables included: HDMI, USB Type-A to USB Type-B
Manual: Yes
AC adapter included: Yes
Rubber feet: Yes
Remote control included: Yes

Logistics data

Master (outer) case net weight: 6.05 kg
Harmonized System (HS) code: 84718000
Master (outer) case width: 232 mm
Master (outer) case length: 500 mm
Master (outer) case height: 283 mm
Master (outer) case gross weight: 7.53 kg
Master (outer) case volume: 32819.225200128 cm³
Country of origin: Thailand
