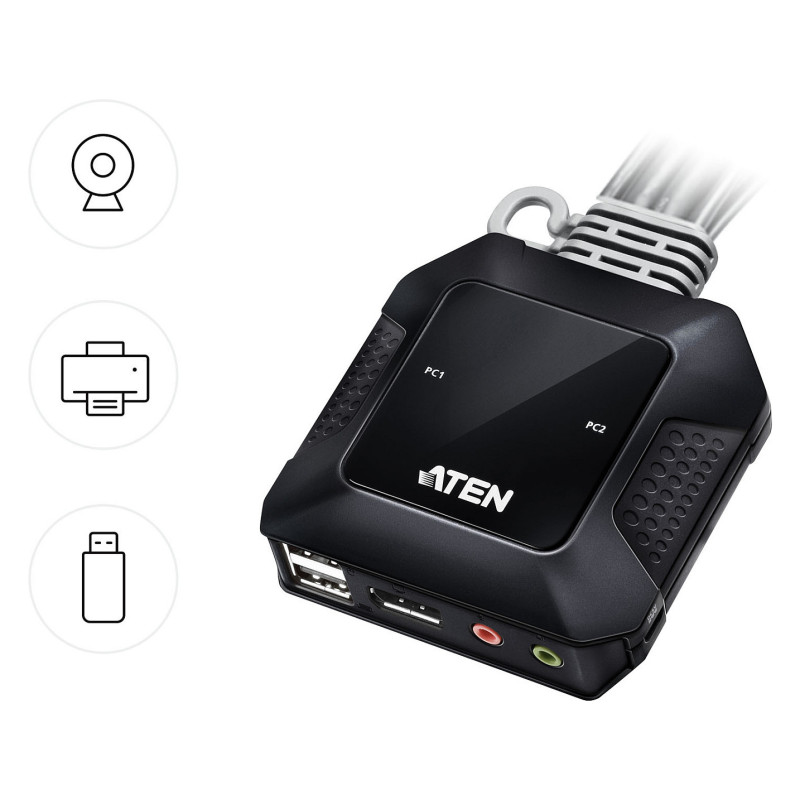

ATEN CS52DP KVM switch

ATEN 2-Port USB-C DisplayPort Hybrid Cable KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels. Product colour: Black, Housing material: Plastic, Cable length: 1.2 m. Power source: USB, Power consumption (typical): 0.74 W. Other operating systems supported: Android, iOS

As an increasingly mobile workforce hot-desks between home and hybrid offices, agility is the key to effective multitasking and remaining engaged in productivity. The compact CS52DP is one of the best choices to meet these hybrid work challenges head on by revamping your workspace with the power of a cable KVM switch and the mobility of USB-C connectivity. Streamline even the most complex workflows by simply pushing the button on the remote port selector to switch between your tasks on one DisplayPort PC and a mobile USB-C device from a DisplayPort and USB console. The DisplayPort-enabled shared screen further assures outstanding 4K audiovisual quality across two computer platforms. Get agile with the CS52DP to jump start your hybrid work productivity and stay ahead of the pack.

Exceptional AV Performance in Vivid 4K
The CS52DP empowers your desktop workflows with 4K DCI audiovisual enhancement by presenting visual content in outstanding precision.

Space-Cost Efficient Desktop Setup

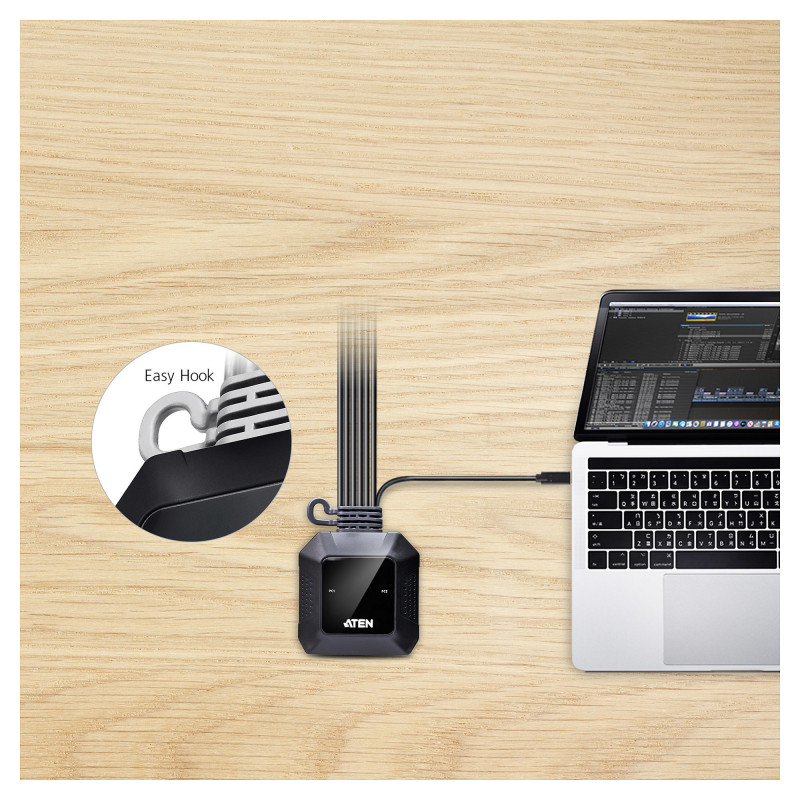

The compact CS52DP enables plug-n-play USB-C connection to a mobile device such as a laptop without going through a docking station, which is a useful, budget-friendly option to expand desktop workspace in a neat and tidy way.

Smooth Cross-Platform Integration
The CS52DP enables the integration of different computer systems (Windows, Mac, Sun, Linux, Android and iOS) that are accessible over one KVM console.

Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirements.

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
DisplayPorts quantity: 1
DisplayPort version: 1.2

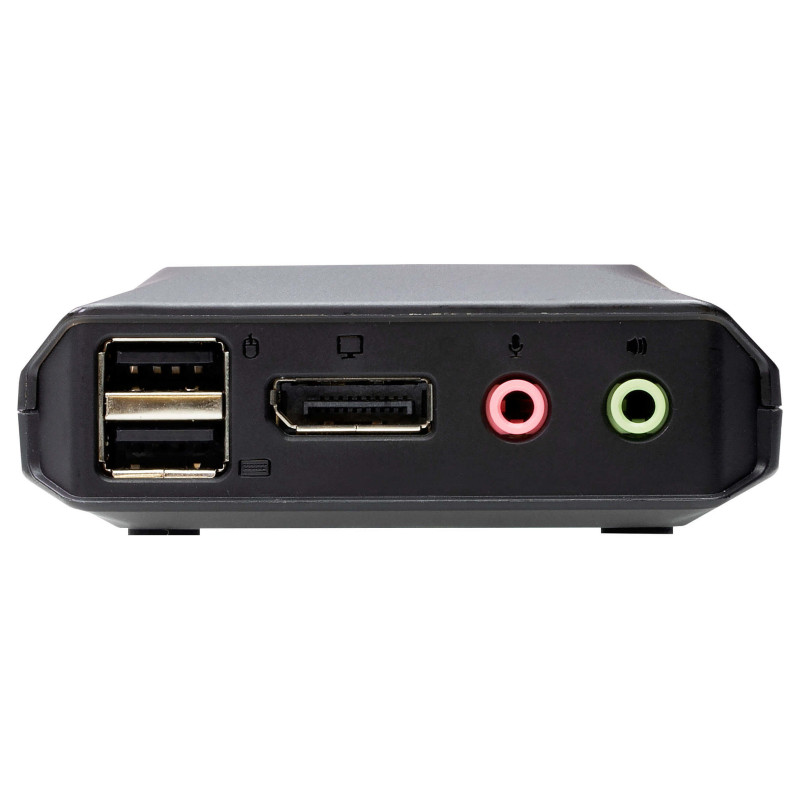

Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort
Console USB ports quantity: 2
USB connector type: USB Type-A, USB Type-C
Headphone outputs: 2
Number of microphone inputs: 2

Performance

HD type: 4K Ultra HD
Maximum resolution: 4096 x 2160 pixels
Feature: HDCP
Feature: Hot-Plug support

Design

Product colour: Black
Housing material: Plastic
Cable length: 1.2 m
Remote switch cable length: 1.8 m
LED indicators: Yes

Power

Power source: USB
Power consumption (typical): 0.74 W

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes
Other operating systems supported: Android, iOS

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 84.2 mm
Depth: 83.4 mm
Height: 30.4 mm
Weight: 303 g

Packaging data

Package width: 55 mm
Package depth: 155 mm
Package height: 223 mm
Package volume: 1897.2287222 cm³
Package weight: 407 g

Logistics data

Master (outer) case net weight: 6.06 kg
Master (outer) case width: 328 mm
Master (outer) case length: 389 mm
Master (outer) case height: 330 mm
Master (outer) case gross weight: 8.49 kg
Master (outer) case volume: 42107.1508942 cm³
Country of origin: Taiwan
