ATEN CS22H KVM switch

ATEN 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Plastic, Cable length: 1.2 m. Power source: USB, Input voltage: 5 V, Power consumption (typical): 3.47 W. Width: 84.2 mm, Depth: 83.4 mm, Height: 30.4 mm

Switching between two computers can be as easy as the push of a button. Refresh your workspace with the CS22H by setting up a desktop console with one set of keyboard/mouse/display for control over two computers via USB and HDMI connections, and you're all set. The compact CS22H helps create an organized desktop with reduced cable clutter, and brings in vivid 4K viewing quality to lift up work performance.

Superior AV Performance in Vivid 4K
The CS22H empowers your desktop operations with audiovisual enhancement with 4K DCI compliance and audio connectivity.

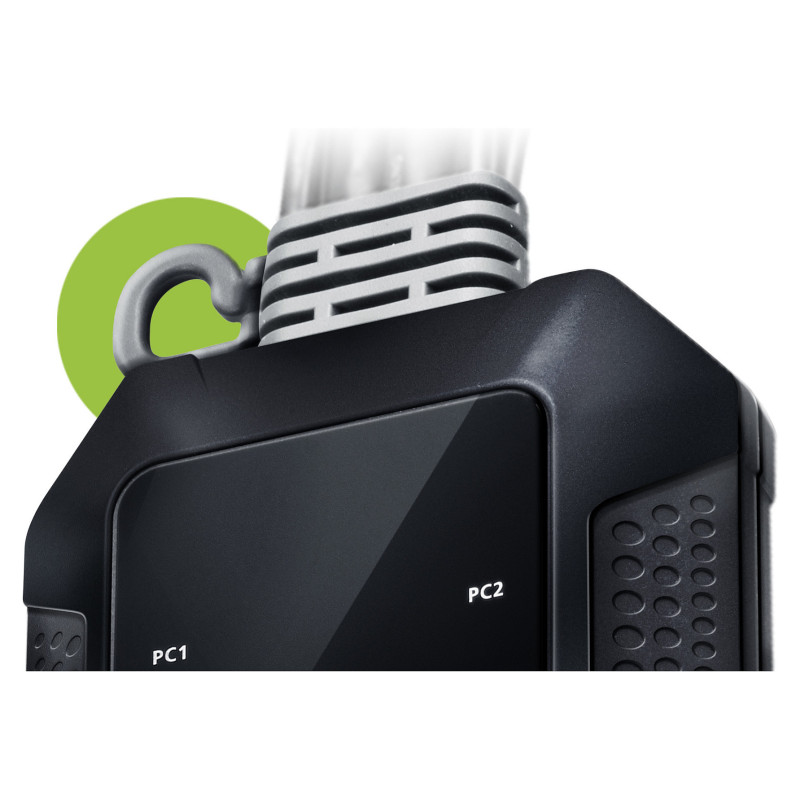

Space Efficient Desktop Setup
The compact and easy-hook design is helpful to expanding desktop workspace in an orderly fashion for improved work productivity.

Smooth Cross-Platform Integration
The CS22H enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console.

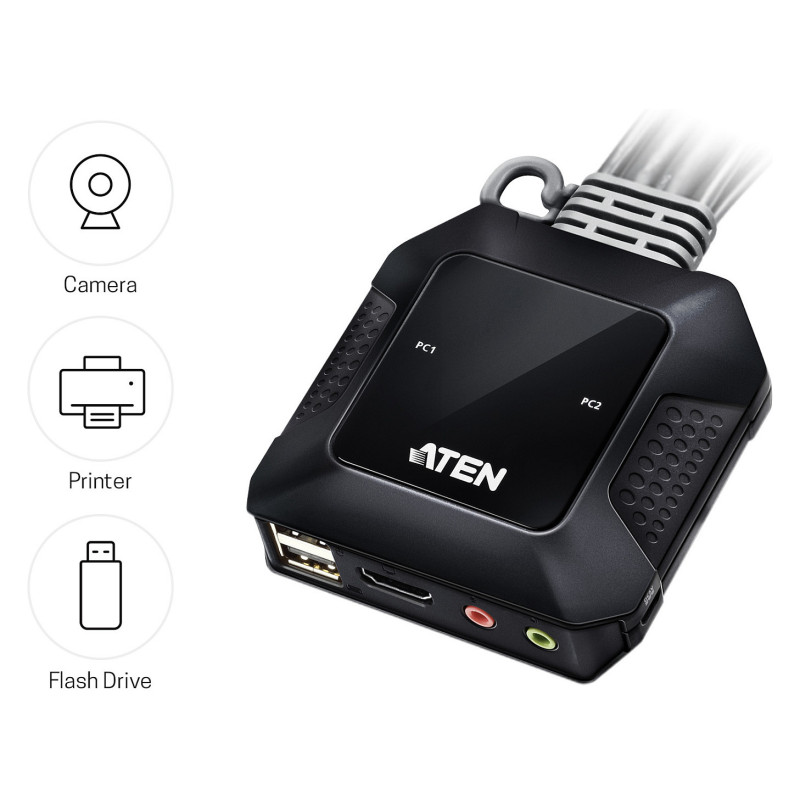

Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.

Plug in. Power on
The CS22H supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.

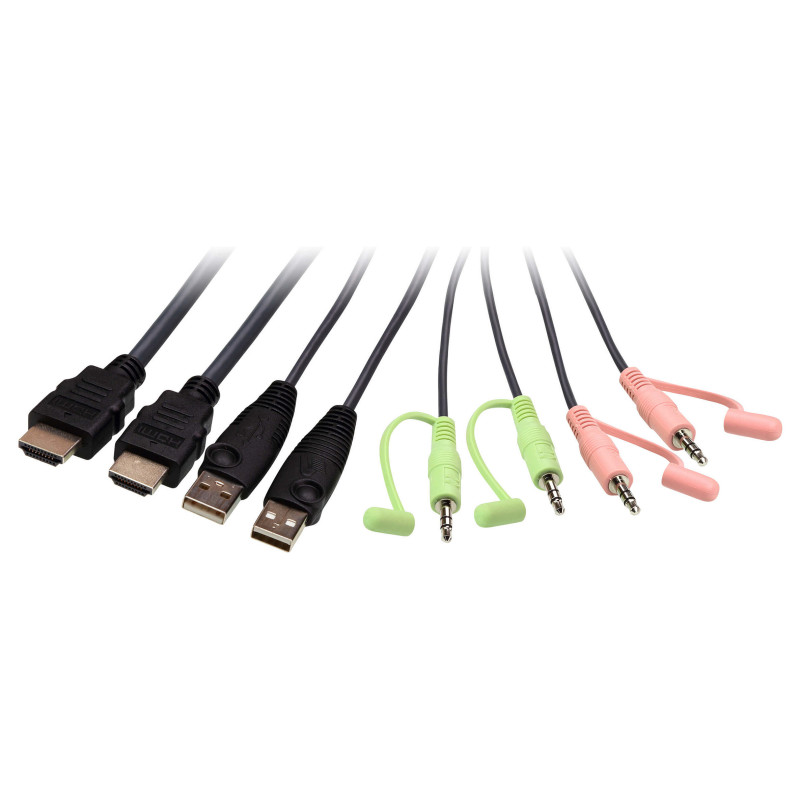

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI
HDMI ports quantity: 3

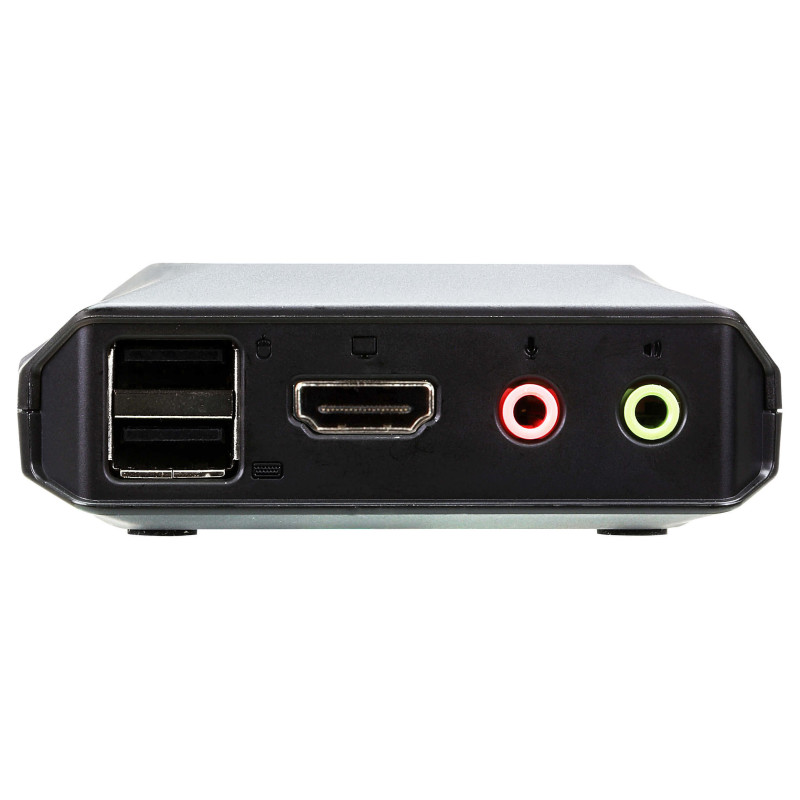

Console ports: 3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity: 2
Console HDMI ports quantity: 1
USB connector type: USB Type-A
Feature: Audio connections
Headphone outputs: 3
Number of microphone inputs: 3

Performance

HD type: 4K Ultra HD
Maximum resolution: 4096 x 2160 pixels
Video bandwidth: 60 Hz
Feature: HDCP
Feature: Hot-Plug support
Feature: Plug and Play
HDCP version: 2.2

Design

Product colour: Black
Housing material: Plastic
Feature: Wired remote switch
Cable length: 1.2 m
Remote switch cable length: 1.8 m
LED indicators: Yes

Power

Power source: USB
Input voltage: 5 V
Power consumption (typical): 3.47 W

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Storage relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 84.2 mm
Depth: 83.4 mm
Height: 30.4 mm
Weight: 340 g

Packaging data

Package width: 55 mm
Package depth: 155 mm
Package height: 223 mm
Package weight: 420 g

Packaging content

Feature: Quick installation guide
Feature: Manual

Logistics data

Master (outer) case net weight: 6.8 kg
Harmonized System (HS) code: 85176200
Master (outer) case width: 328 mm
Master (outer) case length: 389 mm
Master (outer) case height: 330 mm
Master (outer) case gross weight: 9.3 kg
Products per master (outer) case: 20 pc(s)
