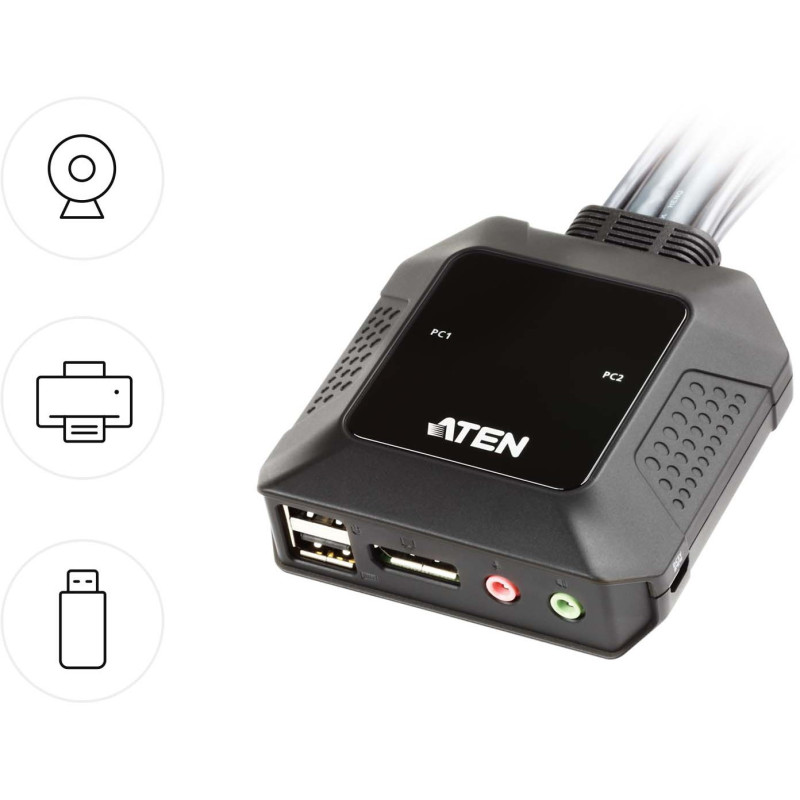

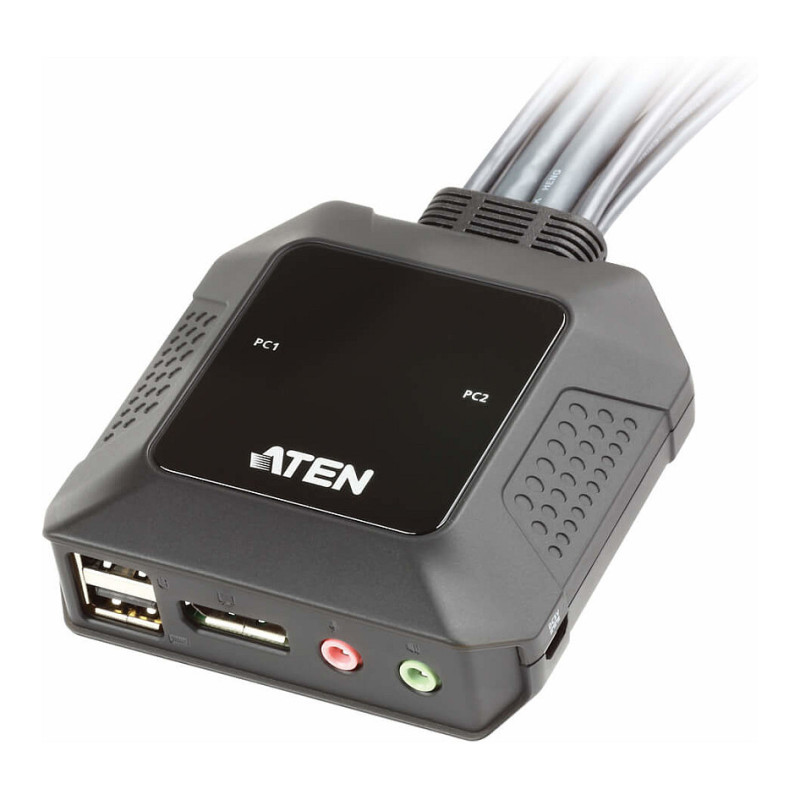

ATEN CS22DP-AT KVM switch

ATEN 2-Port USB DisPlayPort Cable KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 30 Hz. Product colour: Black, Housing material: Plastic, Cable length: 1.2 m. Power source: DC, Input voltage: 5 V, Power consumption (typical): 1.38 W. Sustainability certificates: RoHS, Compliance certificates: RoHS

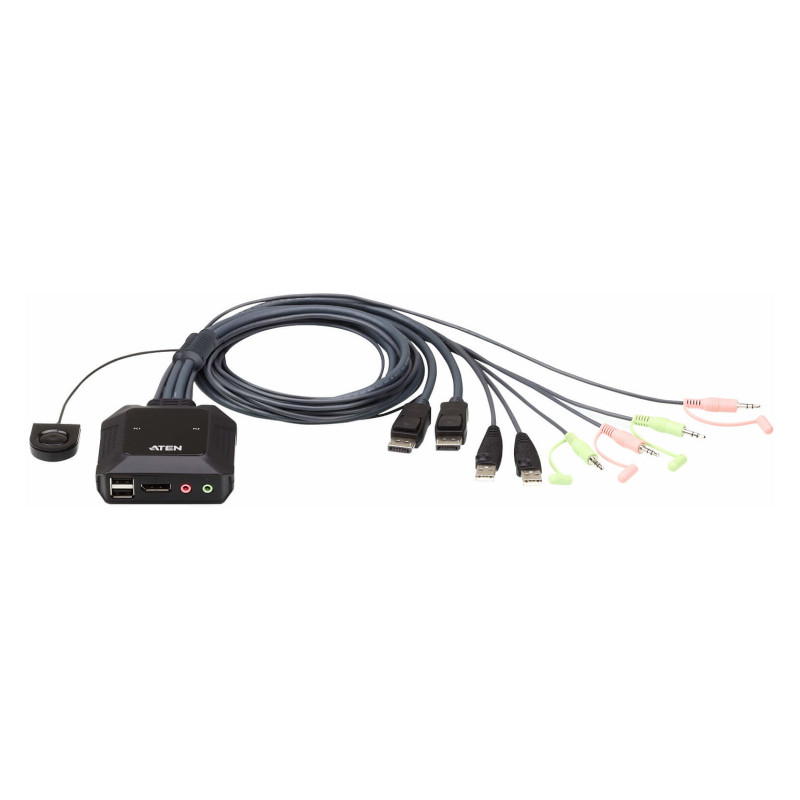

The CS22DP 2-Port USB DisplayPort Cable KVM Switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio. With the CS22DP, you can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton.
1x CS22DP 2-Port USB DisplayPort Cable KVM Switch
1x User Instructions

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
DisplayPorts quantity: 1
DisplayPort version: 1.1

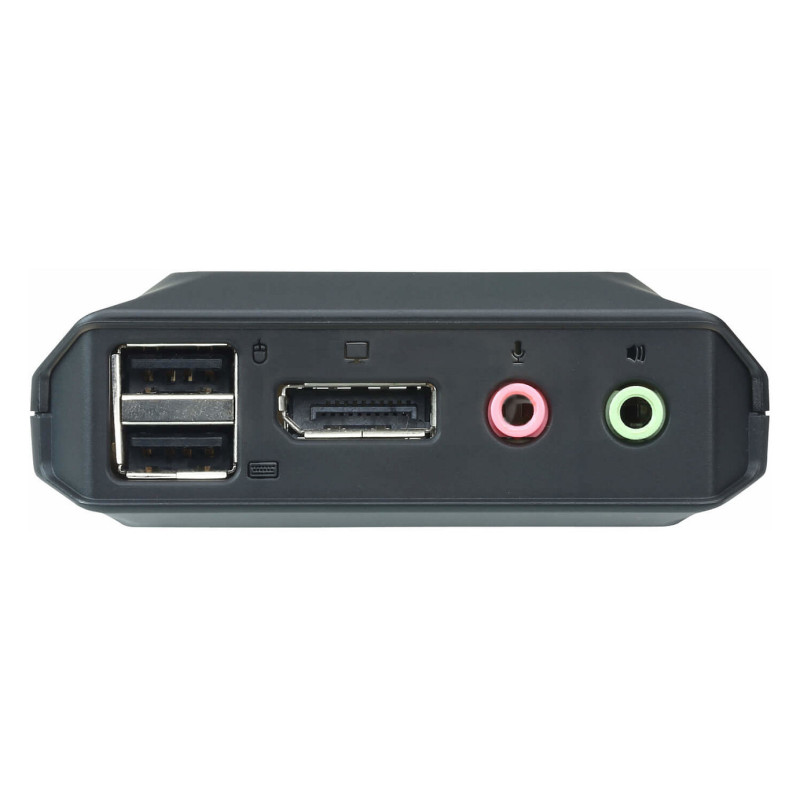

Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity: 2
USB 2.0 ports quantity: 2
USB connector type: Micro-USB B, USB Type-A
Feature: Audio connections
Headphone outputs: 1
Number of microphone inputs: 1

Performance

HD type: 4K Ultra HD
Maximum resolution: 4096 x 2160 pixels
Video bandwidth: 30 Hz
Feature: HDCP
Feature: Hot-Plug support

Design

Product colour: Black
Housing material: Plastic
Feature: Wired remote switch
Cable length: 1.2 m
Remote switch cable length: 1.8 m
LED indicators: Yes

Power

Power source: DC
Input voltage: 5 V
Power consumption (typical): 1.38 W
Feature: USB powered

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes

Sustainability

Sustainability certificates: RoHS
Compliance certificates: RoHS

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 84.2 mm
Depth: 83.4 mm
Height: 30.4 mm
Weight: 360 g

Packaging data

Package width: 55 mm
Package depth: 155 mm
Package height: 225 mm
Package weight: 435 g

Packaging content

Feature: Manual

Logistics data

Master (outer) case net weight: 7.2 kg
Harmonized System (HS) code: 85176200
Master (outer) case width: 328 mm
Master (outer) case length: 389 mm
Master (outer) case height: 330 mm
Master (outer) case gross weight: 9.33 kg
Products per master (outer) case: 20 pc(s)
