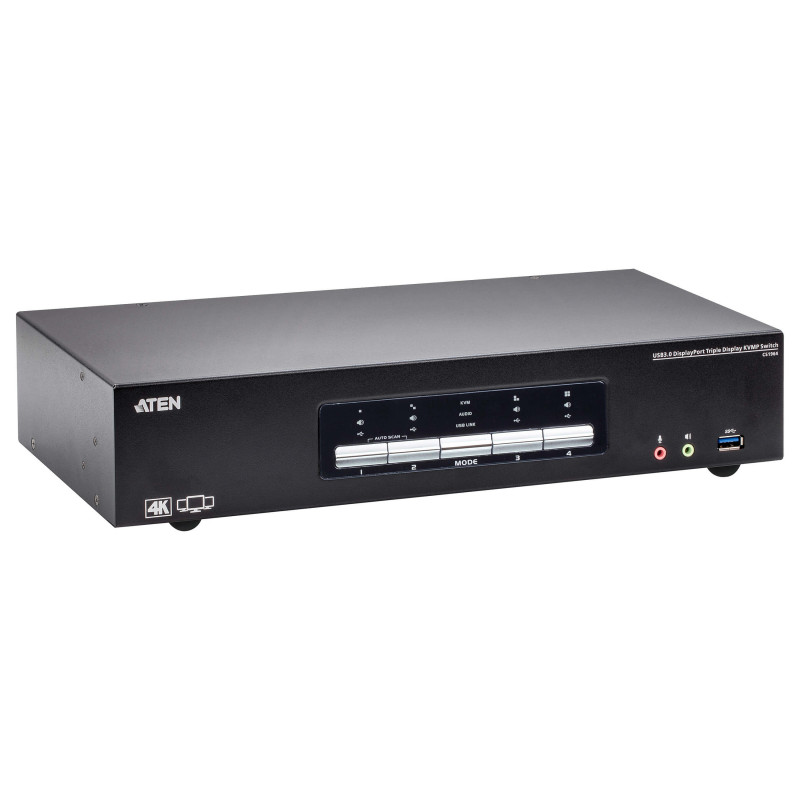

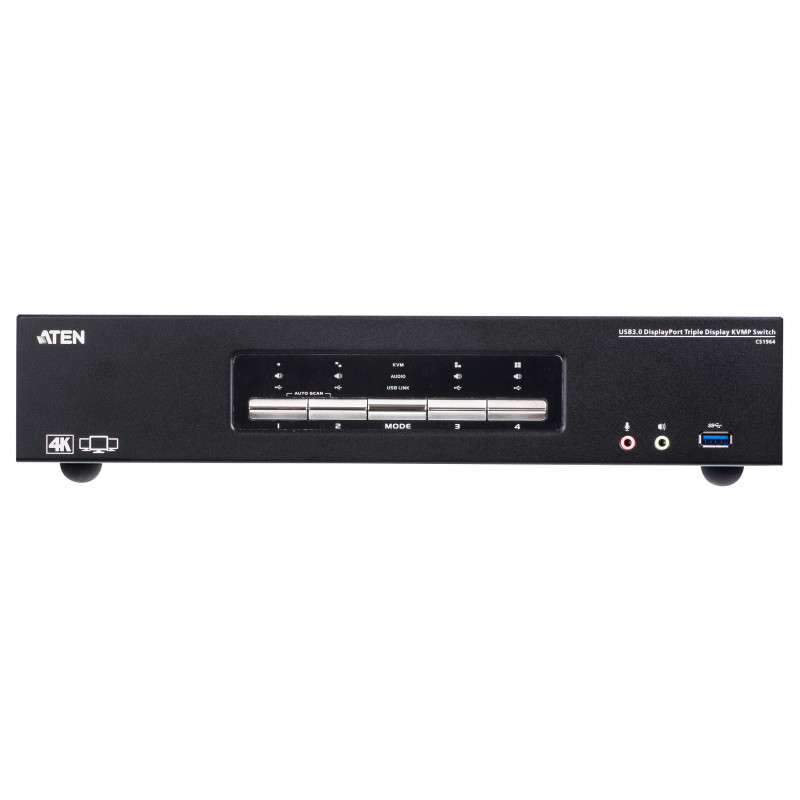

ATEN CS1964-AT-G KVM switch

ATEN 4P USB3.0 4K DP TRIPLE VIEW KVMP SW. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 15.49 W. Width: 335 mm, Depth: 156 mm, Height: 65.5 mm


1x 4-Port USB3.0 4K DisplayPort Triple Display KVMP™ Switch
6x LIN5-20K1-K13G DisplayPort 1.2 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cables
2x LIN5-0205-21DG Audio Cables
1x 0AD8-8012-33MG Power Adapter
1x LIN2-418K-E12G Power cable
1x User Instructions
Note: The included cable sets are for two computer port connection only. Optional cable sets (2L-7D02UDPX6) are available with a separate purchase for the remaining computer port connection.

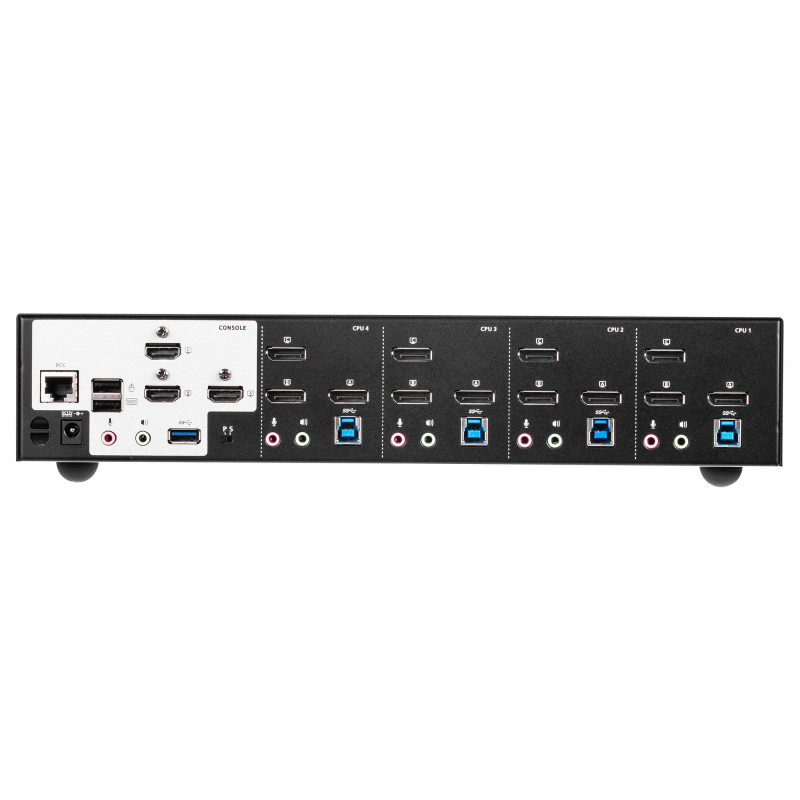

Ports & interfaces

Number of computers controlled: 4
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
DisplayPorts quantity: 12
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 4
Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
Console USB ports quantity: 2
Feature: USB hub
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
USB connector type: USB Type-A, USB Type-B
Feature: Audio connections
Headphone outputs: 6
Number of microphone inputs: 6
Feature: DC-in jack

Performance

HD type: 4K Ultra HD
Maximum resolution: 4096 x 2160 pixels
Video bandwidth: 60 Hz
Scan interval: 1,5,99 s

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes
Feature: Push button
Feature: Hot keys

Power

Power source: DC
Input voltage: 12 V
Power consumption (typical): 15.49 W

System requirements

Windows operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Storage relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 335 mm
Depth: 156 mm
Height: 65.5 mm
Weight: 3.57 kg

Packaging data

Package width: 131 mm
Package depth: 540 mm
Package height: 233 mm
Package weight: 4.03 kg

Packaging content

Feature: Quick installation guide
Feature: Manual

Logistics data

Master (outer) case net weight: 10.7 kg
Harmonized System (HS) code: 85176200
Master (outer) case width: 420 mm
Master (outer) case length: 555 mm
Master (outer) case height: 258 mm
Master (outer) case gross weight: 13 kg
Products per master (outer) case: 3 pc(s)
