ATEN CS1922 KVM switch

ATEN 2-Port USB 3.1 Gen 1 4K DisplayPort 1.2 KVMP™ Switch with Audio (KVM cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Scan interval: 1,99 s. Product colour: Black, Housing material: Metal, Plastic, LED indicators: Operation, USB. Power source: DC, Output voltage: 5 V, Power consumption (typical): 2 W. Width: 88 mm, Depth: 210 mm, Height: 55.5 mm

The ATEN CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology for the increasing demand of higher video quality and transfer speeds on modern computers. The ATEN CS1922 offers an unprecedented performance of delivering 4K resolution, the next generation USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates and enhanced user-friendly operations.

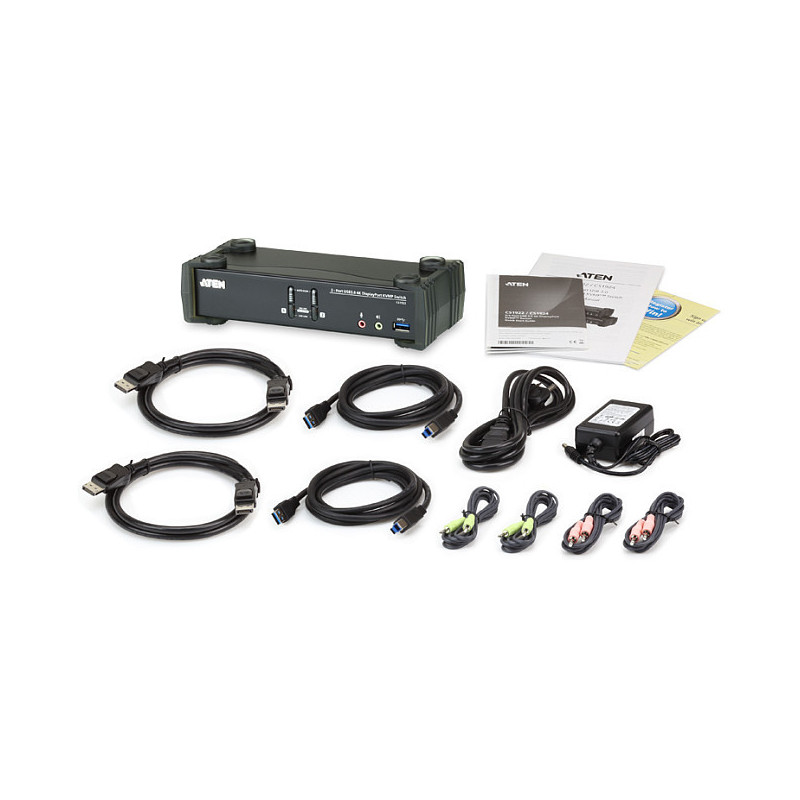

1x CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch
2x LIN5-20K1-K13G DisplayPort Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cable
2x LIN5-0205-21DG Audio Cable
1x 0AD8-8005-40MG Power Adapter
1x LIN2-418K-E12G Power Cord
1x User Instructions

Ports & interfaces

Number of computers controlled: 4
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
DisplayPorts quantity: 3

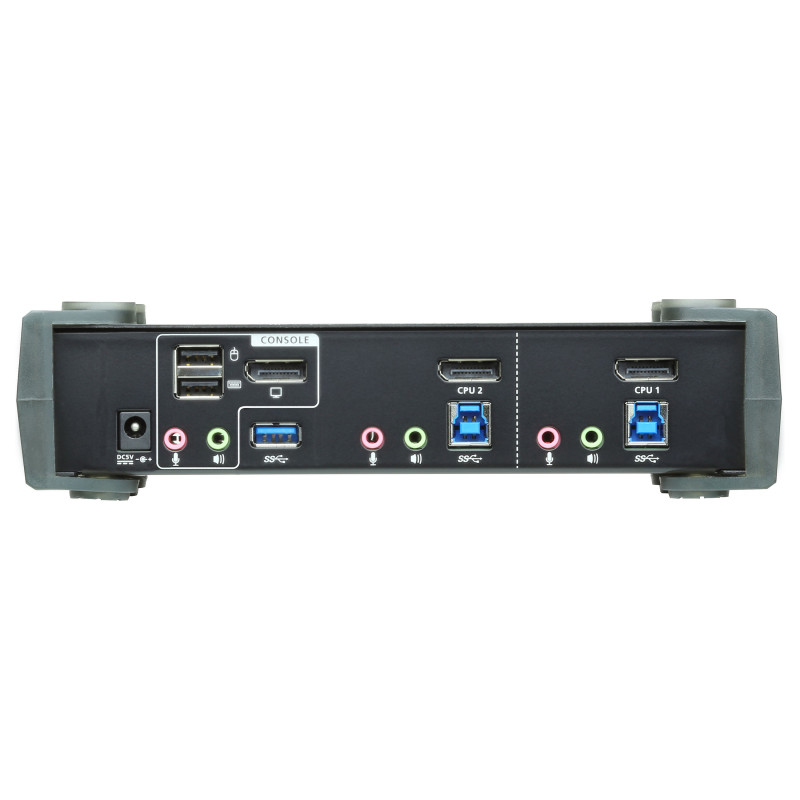

Console ports: 3.5mm mic, DisplayPort, USB B
Console USB ports quantity: 2
Feature: USB hub
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
USB connector type: USB Type-B
USB version: 3.2 Gen 1 (3.1 Gen 1)
Feature: Audio connections
Headphone outputs: 4
Number of microphone inputs: 4
Feature: DC-in jack

Performance

HD type: 4K Ultra HD
Maximum resolution: 4096 x 2160 pixels
Scan interval: 1,99 s
Feature: HDCP
Feature: Hot-Plug support

Design

Product colour: Black
Housing material: Metal, Plastic
LED indicators: Operation, USB
Feature: Push button

Power

Power source: DC
Output voltage: 5 V
Power consumption (typical): 2 W
Feature: External power adapter

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 88 mm
Depth: 210 mm
Height: 55.5 mm
Weight: 1.42 kg

Packaging data

Package width: 100 mm
Package depth: 283 mm
Package height: 173 mm
Package weight: 1.86 kg

Packaging content

Cables included: Audio (3.5mm), DisplayPort, USB
Feature: Manual
Feature: AC adapter included

Logistics data

Master (outer) case net weight: 7.1 kg
Harmonized System (HS) code: 85176200
Master (outer) case width: 292 mm
Master (outer) case length: 517 mm
Master (outer) case height: 194 mm
Master (outer) case gross weight: 9.8 kg
Products per master (outer) case: 5 pc(s)
