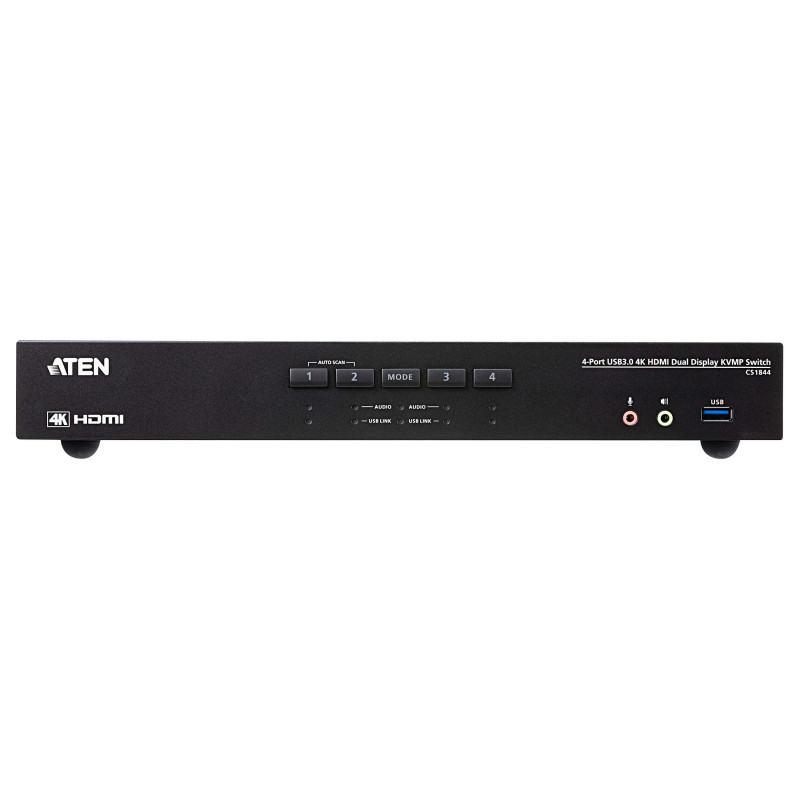

ATEN CS1844-AT-G KVM switch

ATEN 4-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 4.42 W. Width: 335 mm, Depth: 160.5 mm, Height: 44 mm
1x CS1844 4-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch
8x LIN6-19V1-V18G HDMI 2.0 Cables
4x LIN6-11C1-E12G USB 3.0 Cables
4x LIN5-0205-21CG Speaker Cables
4x LIN5-0205-21DG Microphone Cables
1x 0AD8-8012-33MG Power Adapter
1x 2XRT-0016G Remote Port Selector
1x User Instructions

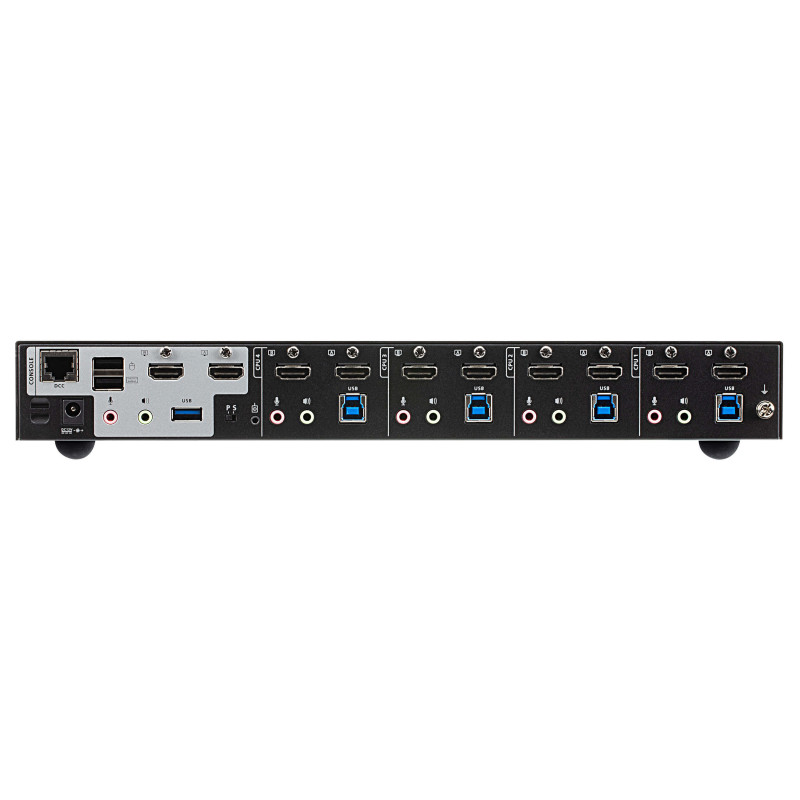

Ports interfaces

Number of computers controlled: 4
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI
HDMI ports quantity: 8
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 4
Console ports: 3.5mm headphone, HDMI, USB A
Console USB ports quantity: 2
Feature: USB hub
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
USB connector type: USB Type-A, USB Type-B
Feature: Audio connections
Headphone outputs: 6
Number of microphone inputs: 6
Feature: DC-in jack

Performance

HD type: 4K Ultra HD
Maximum resolution: 4096 x 2160 pixels
Video bandwidth: 60 Hz
Scan interval: 1,5,99 s

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes
Feature: Push button
Feature: Hot keys

Power

Power source: DC
Input voltage: 12 V
Power consumption (typical): 4.42 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Storage relative humidity (H-H): 0 - 80%

Weight dimensions

Width: 335 mm
Depth: 160.5 mm
Height: 44 mm
Weight: 3.38 kg

Packaging data

Package width: 116 mm
Package depth: 540 mm
Package height: 233 mm
Package weight: 4.35 kg

Packaging content

Feature: Quick installation guide
Feature: Manual

Logistics data

Master (outer) case net weight: 10.1 kg
Harmonized System (HS) code: 85176200
Master (outer) case width: 375 mm
Master (outer) case length: 565 mm
Master (outer) case height: 258 mm
Master (outer) case gross weight: 13.8 kg
Products per master (outer) case: 3 pc(s)
