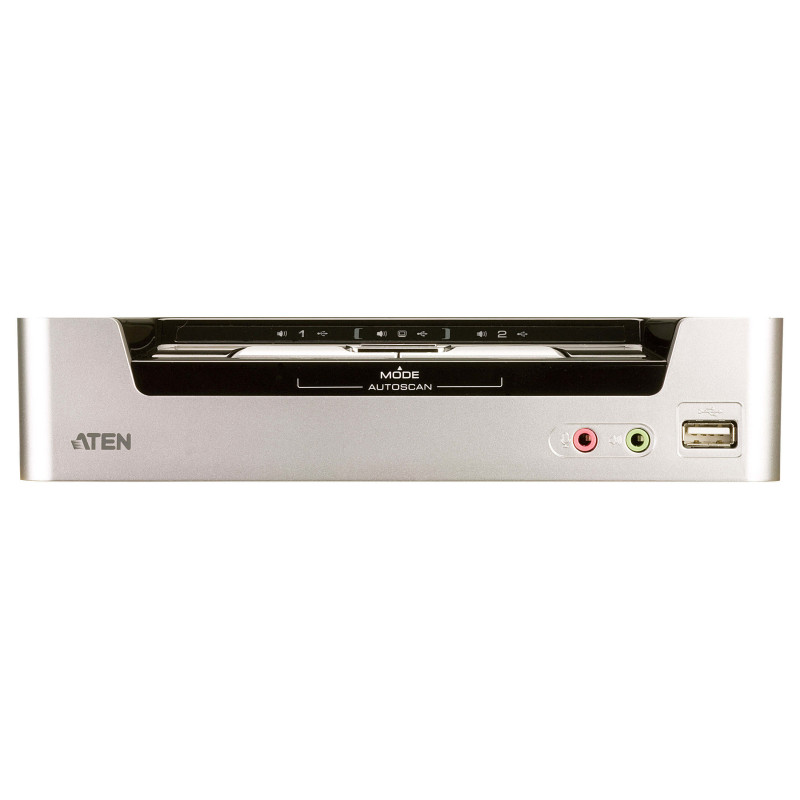

ATEN CS1792-AT-G KVM switch

ATEN 2-Port USB HDMI KVM Switch with Audio & USB 2.0 Hub (KVM cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Grey, Housing material: Metal, Plastic. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 5.35 W. Width: 206.3 mm, Depth: 72.4 mm, Height: 44 mm

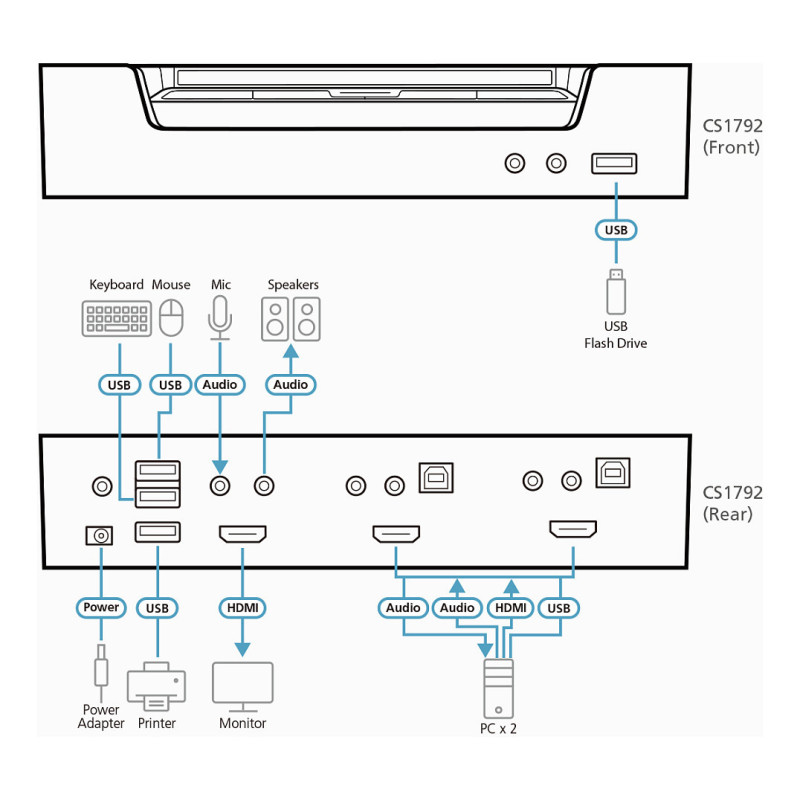

With its unique design and innovative features, the CubiQ™ CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.
1x CS1792 USB 2.0 HDMI KVMP™ Switch
2x 2L-7D02UH HDMI KVM Cable Sets (1.8m)
1x LIN5-04A2-J13G Firmware Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions

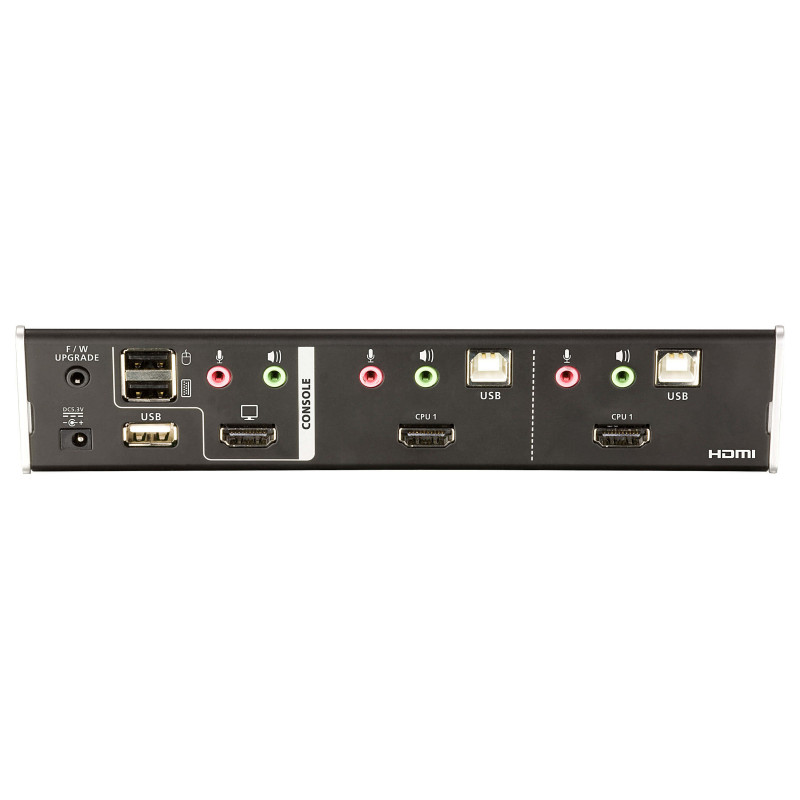

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI
HDMI ports quantity: 2
Console ports: 3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity: 2
Feature: USB hub
USB 2.0 Type-A hub ports quantity: 2
USB connector type: USB Type-A, USB Type-B
Feature: Audio connections
Headphone outputs: 4
Number of microphone inputs: 4
Feature: DC-in jack

Performance

HD type: WUXGA
Maximum resolution: 1920 x 1200 pixels
Video bandwidth: 60 Hz
Scan interval: 1,5,99 s

Design

Product colour: Black, Grey
Housing material: Metal, Plastic
LED indicators: Yes
Feature: Hot keys

Power

Power source: DC
Input voltage: 5.3 V
Power consumption (typical): 5.35 W

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Storage relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 206.3 mm
Depth: 72.4 mm
Height: 44 mm
Weight: 1.04 kg

Packaging data

Package width: 95 mm
Package depth: 265 mm
Package height: 220 mm
Package weight: 1.37 kg

Packaging content

Feature: Quick installation guide
Feature: Manual

Logistics data

Master (outer) case net weight: 5.2 kg
Harmonized System (HS) code: 85176200
Master (outer) case width: 232 mm
Master (outer) case length: 500 mm
Master (outer) case height: 283 mm
Master (outer) case gross weight: 7.3 kg
Products per master (outer) case: 5 pc(s)
