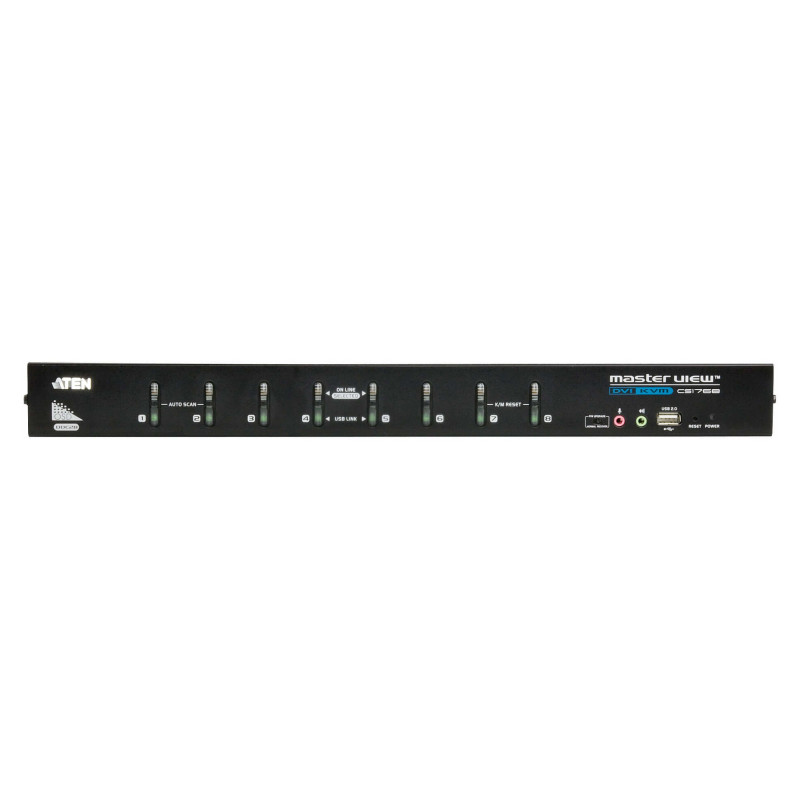

ATEN CS1768-AT-G KVM switch

ATEN 8-Port USB DVI KVM Switch with Audio. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 4.53 W. Width: 437.2 mm, Depth: 161.2 mm, Height: 44 mm

The CS1768 8-port USB DVI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console.

It can be cascaded to three levels - allowing up to 73 CS1768s to control up to 512 computers - all from the original single console, making it ideal for industry-grade IT applications and management.
1x CS1768 8-Port USB DVI KVM Switch with Rack Mounting Kit
2x 2L-7D02U USB DVI-D KVM Cable Sets
1x Firmware Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x Foot Pad Set (4 pcs)
1x User Instructions

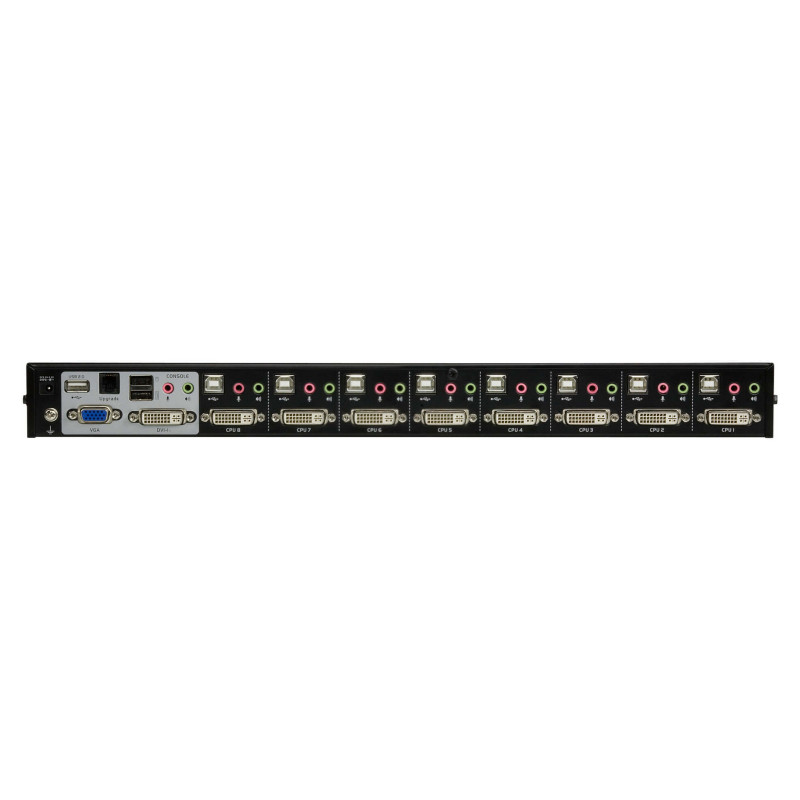

Ports & interfaces

Number of computers controlled: 8
Keyboard port type: USB
Mouse port type: USB
Video port type: DVI-I
DVI-I ports quantity: 8
USB 2.0 Type-B ports quantity: 8
Console ports: 3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)
Console USB ports quantity: 2
Feature: USB hub
USB 2.0 Type-A hub ports quantity: 2
USB connector type: USB Type-A, USB Type-B
Feature: Audio connections
Headphone outputs: 10
Number of microphone inputs: 10
Feature: DC-in jack

Performance

HD type: QXGA
Maximum resolution: 2048 x 1536 pixels
Video bandwidth: 60 Hz
Scan interval: 1,5,255 s
Feature: DDC2B support

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes
Feature: Push button
Feature: Hot keys

Power

Power source: DC
Input voltage: 5.3 V
Power consumption (typical): 4.53 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Storage relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 437.2 mm
Depth: 161.2 mm
Height: 44 mm
Weight: 3.61 kg

Packaging data

Package width: 116 mm
Package depth: 540 mm
Package height: 233 mm
Package weight: 4.07 kg

Packaging content

Feature: Quick installation guide
Feature: Manual

Logistics data

Master (outer) case net weight: 10.8 kg
Harmonized System (HS) code: 85176200
Master (outer) case width: 375 mm
Master (outer) case length: 565 mm
Master (outer) case height: 258 mm
Master (outer) case gross weight: 13.6 kg
Products per master (outer) case: 3 pc(s)
