ATEN CL3116NX rack console

ATEN CL3116NX. Display diagonal: 47 cm (18.5"), Display resolution: 1366 x 768 pixels, Display: LCD. Keyboard port type: USB, Mouse port type: USB, PS/2, Video port type: VGA. Keyboard language: French, Keyboard layout: AZERTY. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz, Input current: 1 A. Other operating systems supported: SunOS

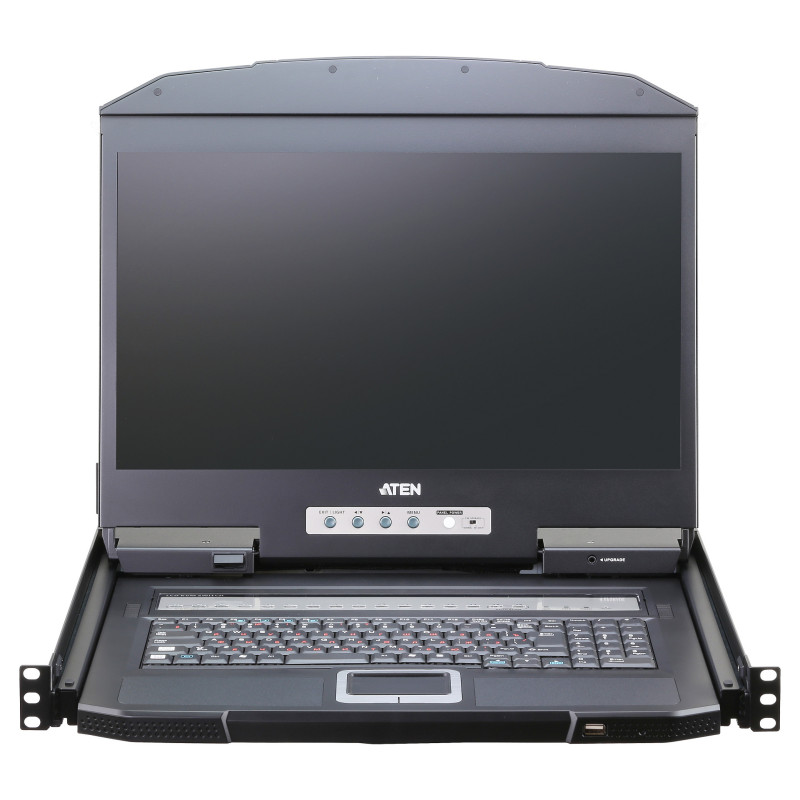

The ATEN CL3116 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions.

The CL3116 can control up to 16 computers; when 16 additional KVM switches are cascaded, a single CL3116 LCD KVM Switch can control up to 256 computers. To achieve greater operational efficiency, the CL3116 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, and establishing a reliable working environment for users.

To enhance information safety, the CL3116 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience, the CL3116 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse.

As a feature-rich LCD KVM Switch, the CL3116 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and thus is ideal for control rooms with limited space in any industry.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

Display

Display diagonal: 47 cm (18.5")
Display resolution: 1366 x 768 pixels
Display: LCD
Display brightness: 450 cd/m²
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 170°
Viewing angle, vertical: 160°
Feature: On Screen Display (OSD)
Pixel pitch: 0.3 x 0.3 mm
Display type: TFT
Response time: 5 ms
Supported resolutions: up to 1920 x 1200 @ 60 Hz; 1366 x 768 @ 60 Hz, DDC2B

Technical details

Material: Metal, Plastic
Product colour: Black
Feature: Hot-Plug support
Operating relative humidity (H-H): 0 - 80%
Feature: Built-in KVM switch
KVM switch ports quantity: 16
Maximum resolution: 1920 x 1200 pixels
Feature: Rack mounting
Number of computers controlled: 256
Feature: On/off switch
LED indicators: Yes
Feature: Push button
Compliance certificates: RoHS
Rack capacity: 1U

Ports & interfaces

Feature: 3.5 mm (1/8-inch) in
VGA (D-Sub) ports quantity: 1

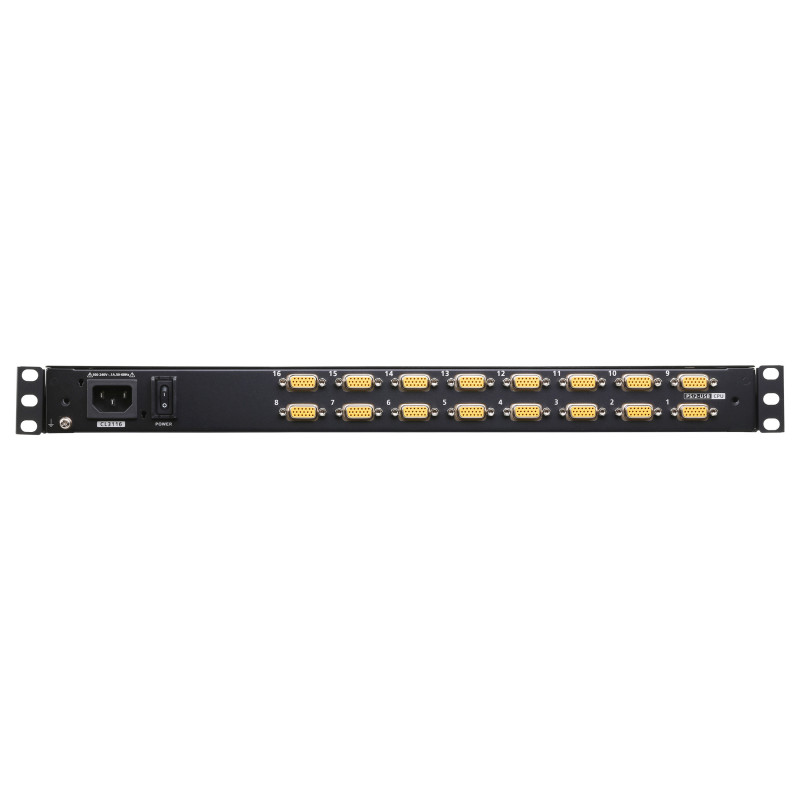

I/O ports: 16x SPHD
Keyboard port type: USB
Mouse port type: USB, PS/2
Video port type: VGA
USB 2.0 Type-A ports quantity: 1

Keyboard

Feature: Built-in touchpad
Keyboard language: French
Keyboard layout: AZERTY
Feature: Hot keys

Power

AC adapter input voltage: 100 - 240 V
AC adapter frequency: 50/60 Hz
Input current: 1 A
Feature: AC (power) in

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Other operating systems supported: SunOS

Weight & dimensions

Width: 631 mm
Height: 42.8 mm
Depth: 480.6 mm
Weight: 10.6 kg

Packaging content

Cables included: AC, KVM
Feature: Quick installation guide
Feature: Manual
Feature: AC adapter included
Feature: Rack mount kit
Package type: Box
