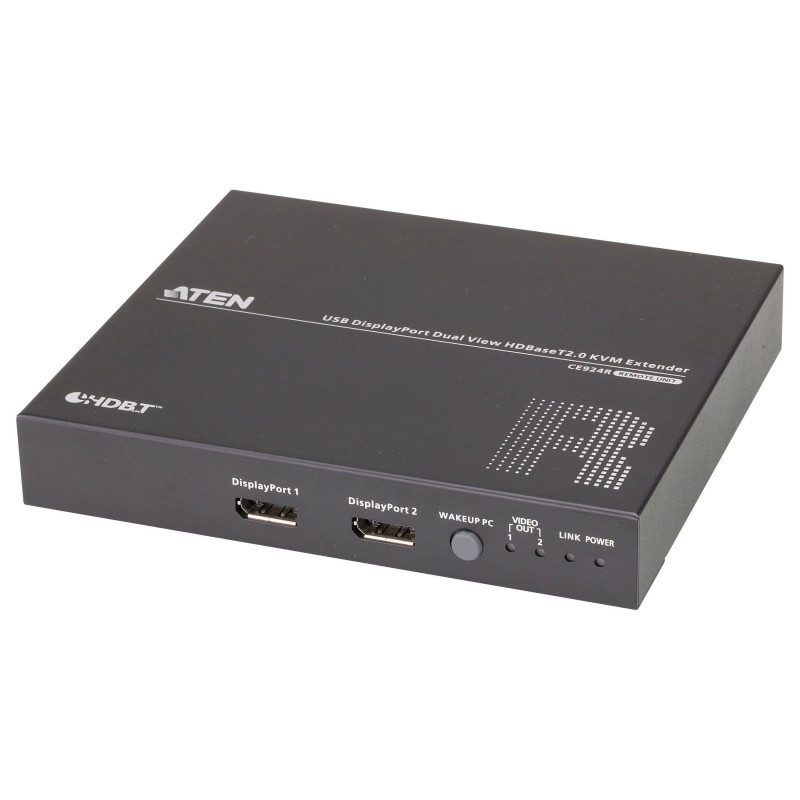

ATEN CE924-AT-G KVM extender

ATEN USB DisplayPort Dual View HDBaseT™ 2.0 KVM Extender (4K@100m for Single View). Type: Transmitter receiver, Connectivity technology: Wired, Maximum digital resolution: 4096 x 2160 pixels. Transmitter video port type: DisplayPort. Receiver local video port type: DisplayPort. USB port type: USB Type-A. Transmitter width: 15.4 cm, Transmitter depth: 17.4 cm, Transmitter height: 2.88 cm
The ATEN CE924 USB DisplayPort Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, and RS-232 signals. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as it provides long-reach capability that extends Full HD 1080P signals up to 150 meters. In addition, CE924 supports single 4K display or dual 1080p display for DisplayPort video output resolution up to 100m by using a single Cat6 / 2L-2910 Cat 6 cable.
With an easy cable installation supporting various signals, the CE924 is ideal for applications where convenient remote access is required - such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
1x CE924L USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Local Unit)
1x CE924R USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Remote Unit)
2x DisplayPort cables
1x pink audio jack cable set
1x green audio jack cable set
1x USB Type-A to Type-B cable
2x power adapters
2x mounting kits
1x user instructions

Features

Type: Transmitter receiver
Connectivity technology: Wired
Maximum digital resolution: 4096 x 2160 pixels
Product colour: Black
Material: Metal
LED indicators: Yes

Transmitter

Transmitter video port type: DisplayPort
RJ-45 ports quantity (transmitter): 1

Receiver

Receiver local video port type: DisplayPort
RJ-45 ports quantity (receiver): 1

Ports interfaces

USB port type: USB Type-A

Weight dimensions

Transmitter width: 15.4 cm
Transmitter depth: 17.4 cm
Transmitter height: 2.88 cm
Transmitter weight: 820 g
Receiver width: 15.6 cm
Receiver depth: 17.4 cm
Receiver height: 2.88 cm
Receiver weight: 850 g

Packaging data

Package width: 131 mm
Package depth: 540 mm
Package height: 233 mm
Package weight: 4.04 kg

Packaging content

AC adapter included: Yes
Cables included: DisplayPort, USB Type-A to USB Type-B

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Storage relative humidity (H-H): 0 - 80%

Technical details

Weight: 3.08 kg

Logistics data

Master (outer) case net weight: 3.08 kg
Harmonized System (HS) code: 84733080
Master (outer) case width: 247 mm
Master (outer) case length: 556 mm
Master (outer) case height: 153 mm
Master (outer) case gross weight: 4.28 kg
Products per master (outer) case: 1 pc(s)
