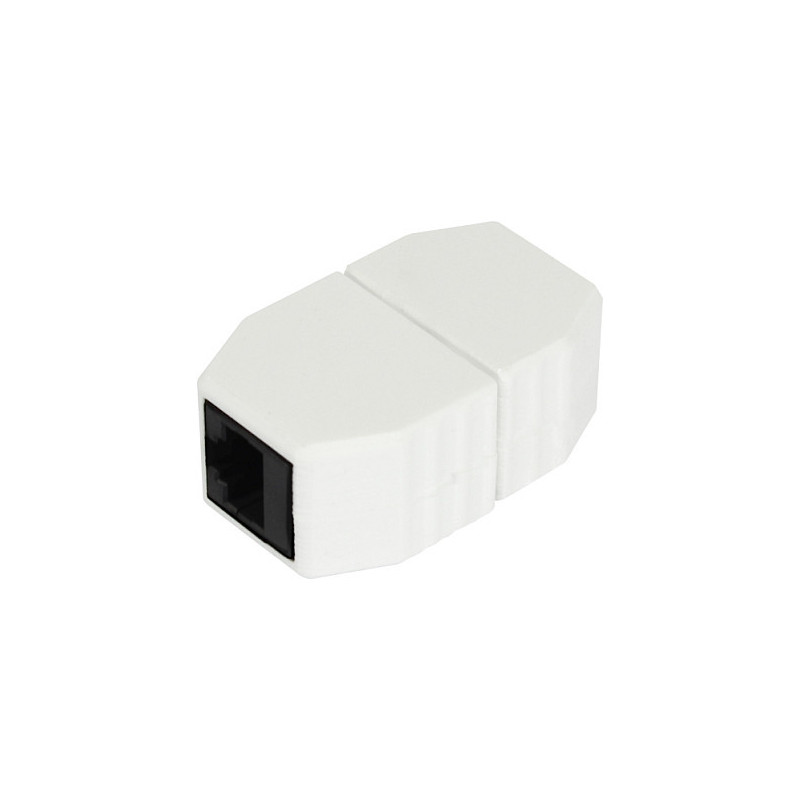

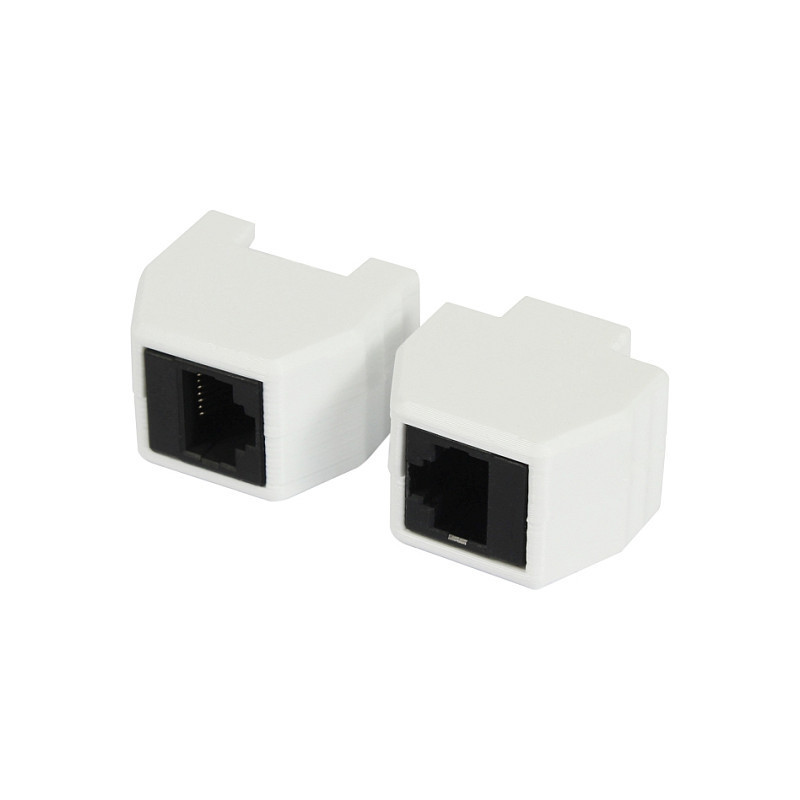

ALLNET ALL-RJ45-MAGNET interface cards / adapter

ALLNET ALL-RJ45-MAGNET. Host interface: RJ-45, Output interface: RJ-45. Product colour: White. Power consumption (typical): 90 W. Weight: 29 g

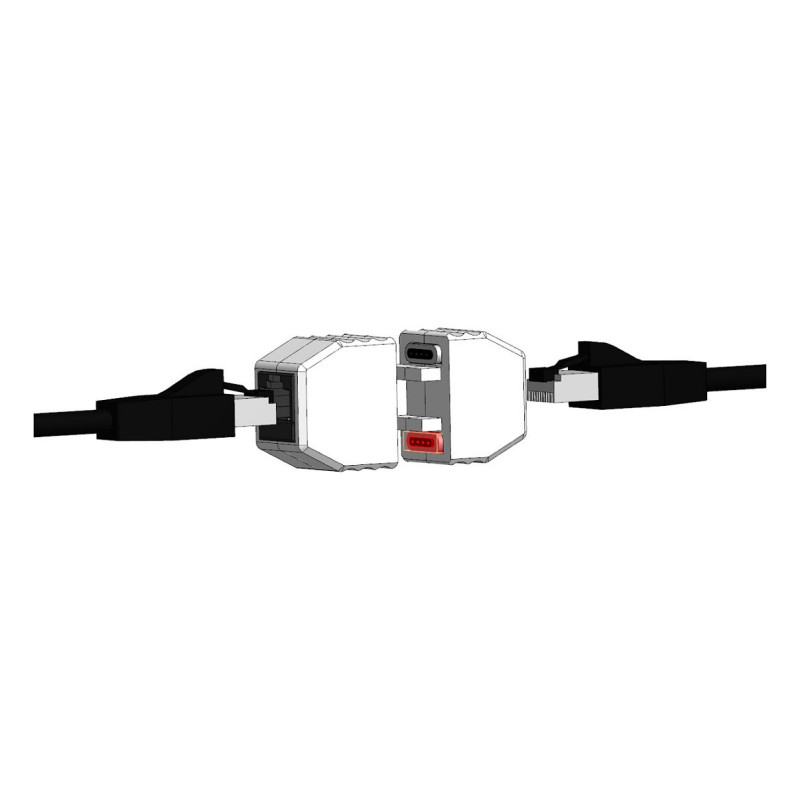

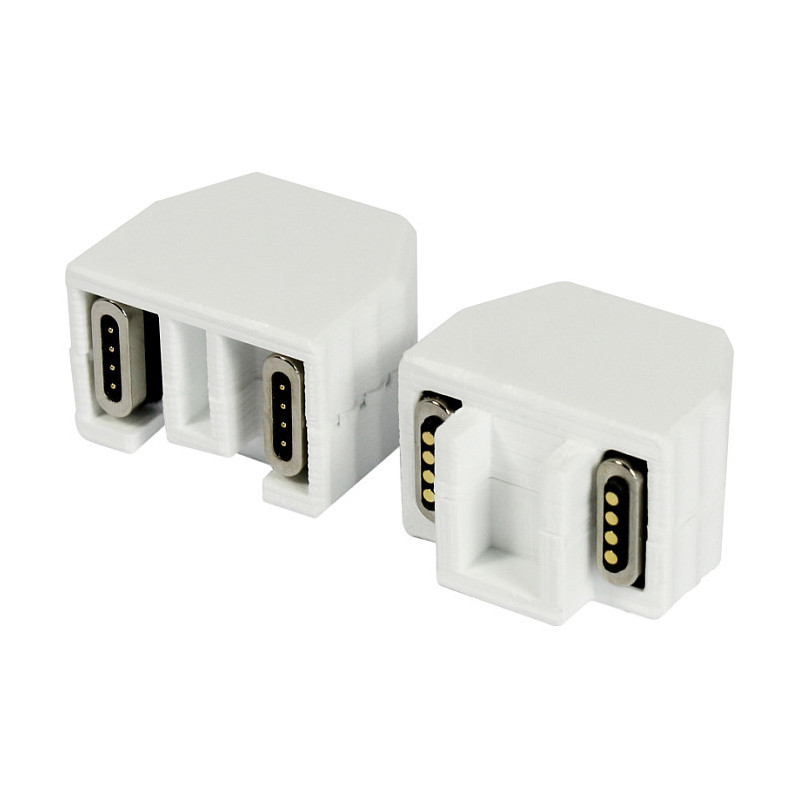

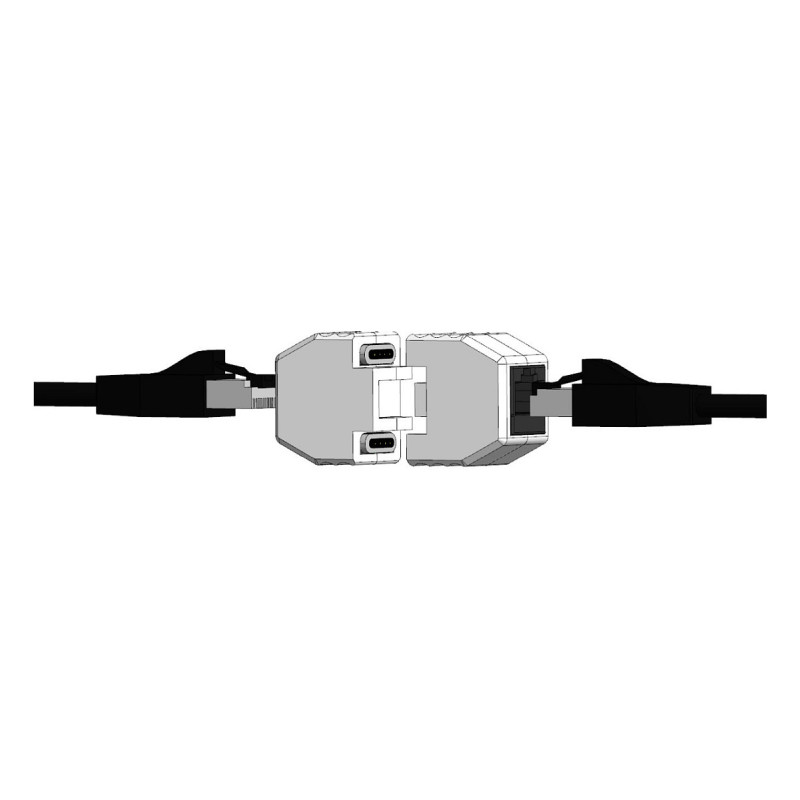

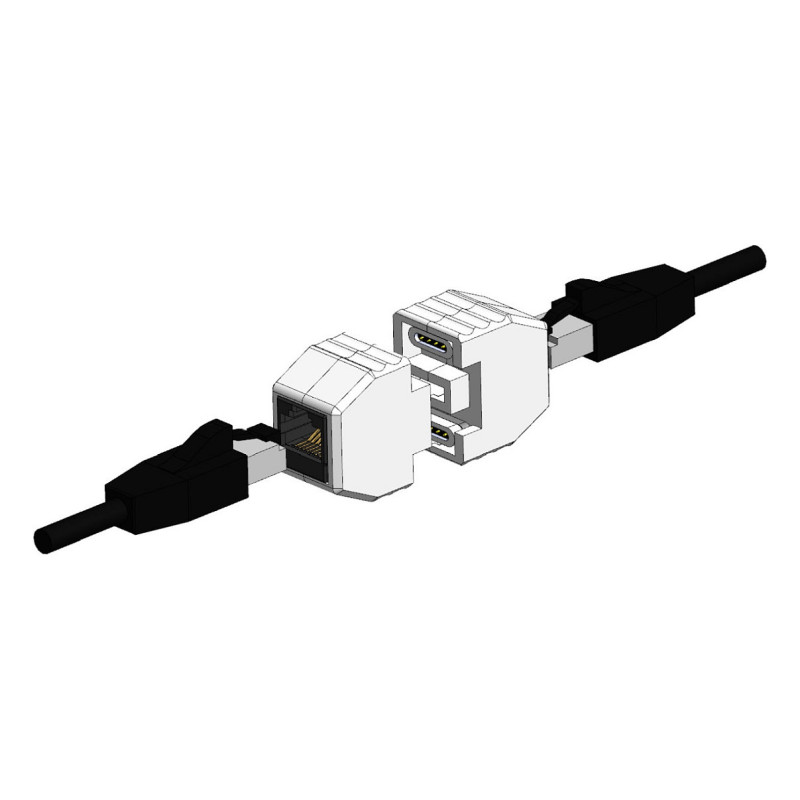

With this coupling you can easily and effectively protect your valuable IT equipment from damage. The two parts are fixed by magnetic contacts and detach if the tensile load is too high. This prevents RJ45 sockets from being torn out and devices from being destroyed through carelessness. This security product from ALLNET was developed especially for our hospitality customers and IT system houses. The standard specifications for the release force of RJ45 plugs and sockets according to IEC 60603-7 is higher than that of our ejector socket. This ensures that the connection between the two magnetic couplings always falls apart before any damage to the device occurs. An unintentional disconnection of the magnetic connection is nevertheless not possible.

You can continue to use the existing infrastructure because the connector supports all types of RJ45 connectors, from Cat5-Cat6a, PoE according to IEEE 802.3 af/at/bt (90Watt) and up to 10GBit.

Ports & interfaces

Host interface: RJ-45
Output interface: RJ-45

Design

Product colour: White
LED indicators: No

Features

Feature: Full duplex
Feature: Bidirectional

Power

Power consumption (typical): 90 W

Operational conditions

Operating temperature (T-T): -20 - 85 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Weight: 29 g
