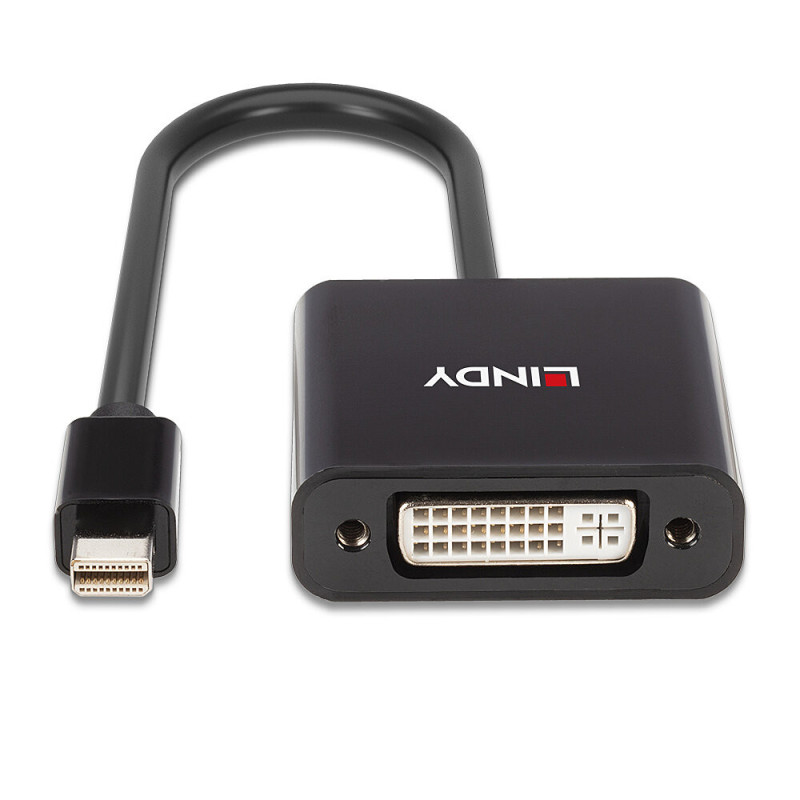

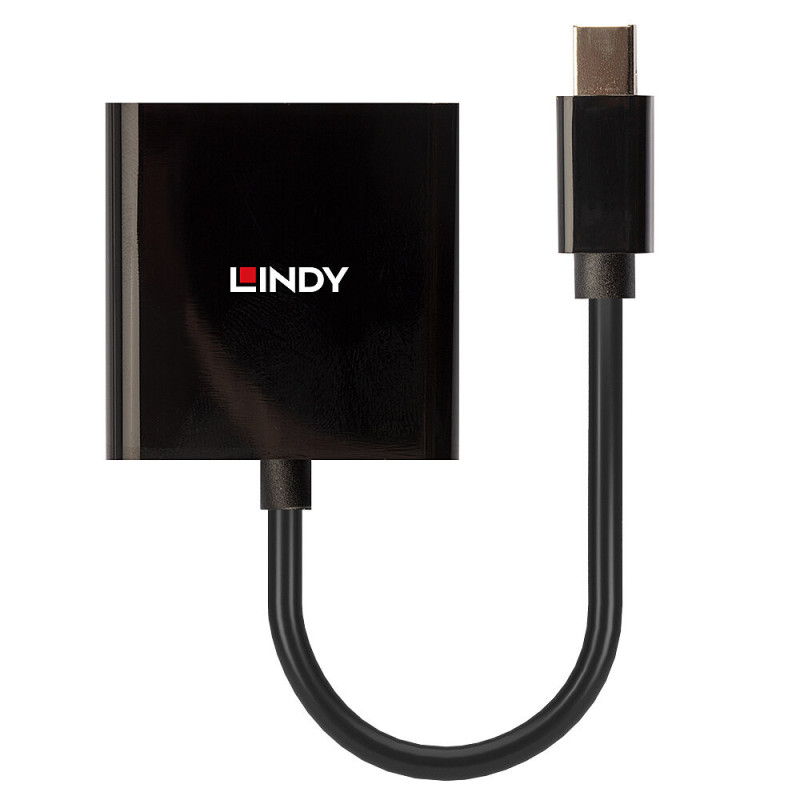

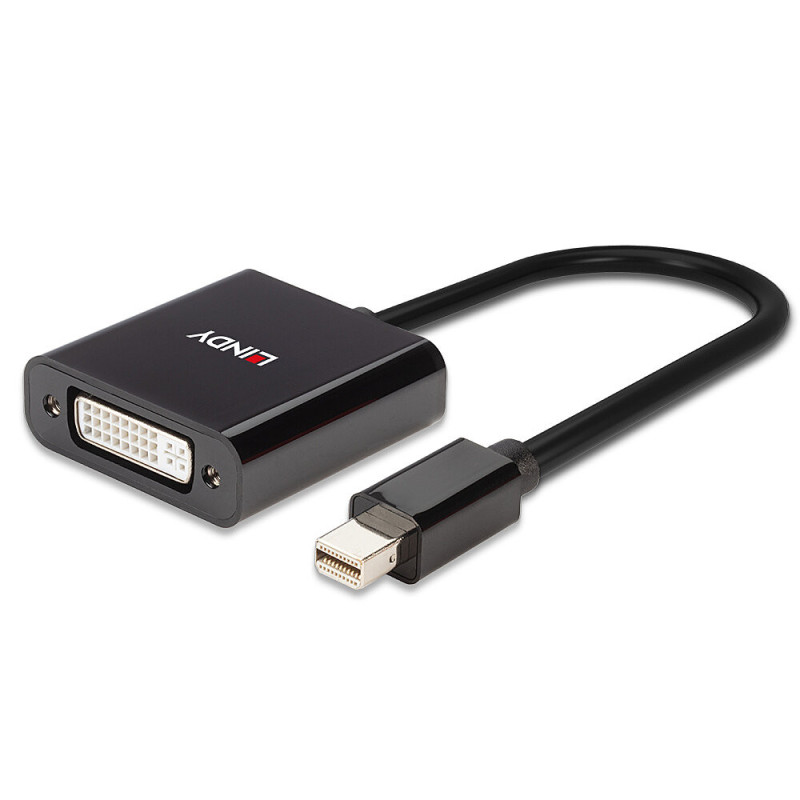

This Mini DisplayPort to DVI-D adapter allows you to connect a Mini DisplayPort source to a DVI-D monitor, providing a maximum resolution of 1920x1200@60Hz. The compact design and 160mm cable length support DisplayPort 1.2 and HDCP 1.3.
This Mini DisplayPort to DVI-D adapter allows you to connect a Mini DisplayPort source to a DVI-D monitor, providing a maximum resolution of 1920x1200@60Hz. The compact design and 160mm cable length support DisplayPort 1.2 and HDCP 1.3.




This Mini DisplayPort to DVI-D adapter allows you to connect a Mini DisplayPort source to a DVI-D monitor, providing a maximum resolution of 1920x1200@60Hz. The compact design and 160mm cable length support DisplayPort 1.2 and HDCP 1.3.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Connects a Mini DisplayPort source to a DVI-D monitor with a maximum output resolution of 1920x1200@60Hz. Compact design with a 160mm long cable, supports DisplayPort 1.2 and HDCP 1.3.
Features | |
|---|---|
| Product Type | Adapter |
| Model | Mini DisplayPort to DVI Active Converter |
Specifications | |
| AV Interface | Mini DisplayPort to DVI |
| Interface Standard | DisplayPort 1.2 / DVI |
| Supported by Tape | 5.4Gbps |
| Maximum Input Resolution | 1920x1200@60Hz |
| Maximum Output Resolution | 1920x1200@60Hz |
| Chipset | PS171 |
| HDCP Support | HDCP 1.3 |
Connectors | |
| Input | Mini DisplayPort Male |
| Output | DVI-D Female |
Physical Properties | |
| Dimensions (WxDxH) | 11x18.7x9mm (0.43x0.74x0.35in) / 45x44.3x14.8mm (1.77x1.74x0.58in) |
| Cable Length | 160mm (6.3in) |
| Housing Material | ABS |
| Shell Material | PVC |
| Shell Diameter | 5.0mm (0.20in) |
| Minimum Bending Radius | 45mm (1.77in) |
| Net Weight | 0.030kg (0.07lb) |
| Operating Temperature | 0°C - 45°C (32°F - 113°F) |
| Storage Temperature | -10°C - 70°C (14°F - 158°F) |
| Humidity | 20 - 90% RH (non-condensing) |
| Color | Black |
Additional Information | |
| Packaging Type | Polyethylene bag |
| Packaging Dimensions | 174x194mm (6.85x7.64in) |
| Total Weight | 0.04kg (0.09lb) |
| Product Compliance | CE, FCC, RoHS REACH, CP65 |
Safety Warning | |
| Use this product only for its intended purpose to avoid potential hazards. | |
| Height | 194 mm |
| Length | 174 mm |
| Weight | 40 grams |
| Width | 20 mm |
