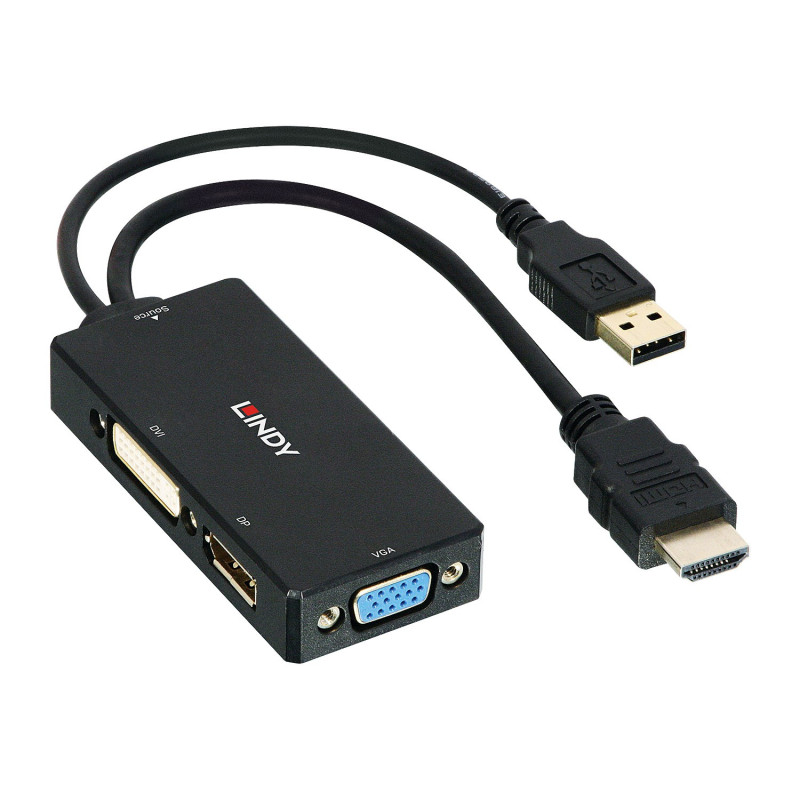

Connects one HDMI device to DisplayPort, DVI or VGA displays, supporting a maximum output resolution of 4K@30Hz on DisplayPort and 1920x1200@60Hz on DVI/VGA. Additional power can be supplied via USB, and also supports 7.1 LPCM digital audio up to 192kHz 24bit.
Connects one HDMI device to DisplayPort, DVI or VGA displays, supporting a maximum output resolution of 4K@30Hz on DisplayPort and 1920x1200@60Hz on DVI/VGA. Additional power can be supplied via USB, and also supports 7.1 LPCM digital audio up to 192kHz 24bit.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Connects one HDMI device to DisplayPort, DVI or VGA displays with a maximum output resolution of 4K@30Hz DisplayPort and 1920x1200@60Hz DVI/VGA. Additional power can be supplied via USB, and it supports 7.1 LPCM digital audio up to 192kHz 24bit.
Features | |
|---|---|
| Product type | HDMI to DisplayPort, DVI and VGA converter |
Specifications | |
| AV interface | HDMI® to DP, DVI and VGA |
| Interface standard | HDMI®, DP 1.2, DVI-D and VGA |
| Supported bandwidth | Max. 3Gbps per lane |
| Maximum input resolution | 4K@30Hz |
| Maximum output resolution |
|
| Chipset | STDP2600, PS8222, AG6200 |
| HDCP support | HDCP |
| Supported audio | 7.1 LPCM digital audio up to 192kHz 24bit |
| Special features | Additional power via USB |
Connectors | |
| Input | HDMI® Type A Male, USB Type A Male (for power) |
| Output | DisplayPort Female, DVI-D Female, VGA Female |
Physical properties | |
| Dimensions (approximate) |
|
| Cable length | 150mm |
| Housing material | ABS |
| Net weight | 0.06kg |
| Working temperature | 0°C - 65°C |
| Storage temperature | -10°C - 125°C |
| Humidity | 20 - 95% RH (non-condensing) |
| Color | Black |
Miscellaneous | |
| Packaging type | Polyethylene bag |
| Package dimensions | 160x160x20mm |
| Total weight | 0.07kg |
| Product compliance | CE, FCC, RoHS and REACH |
