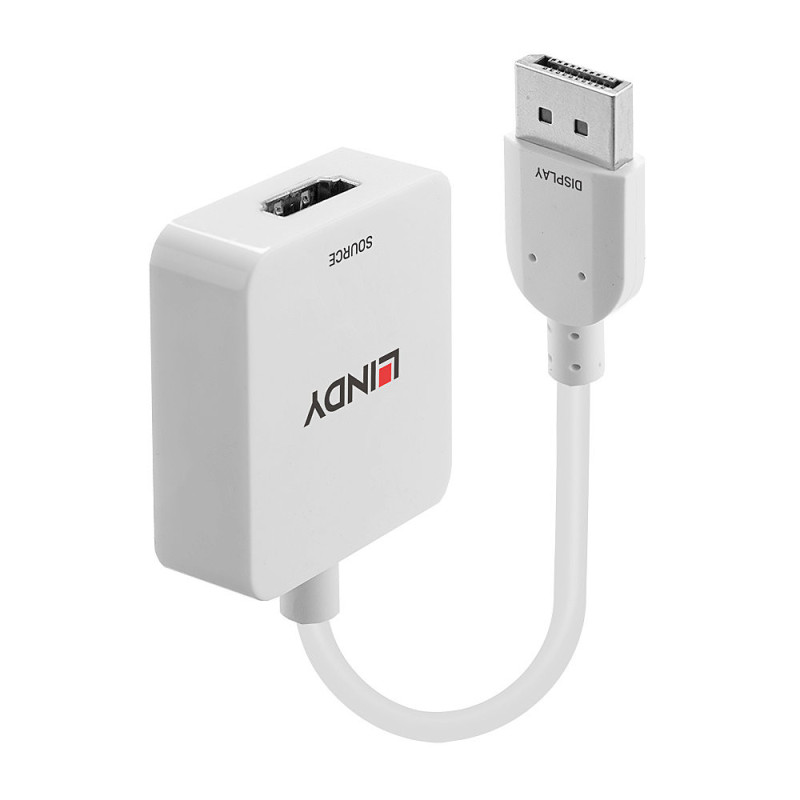

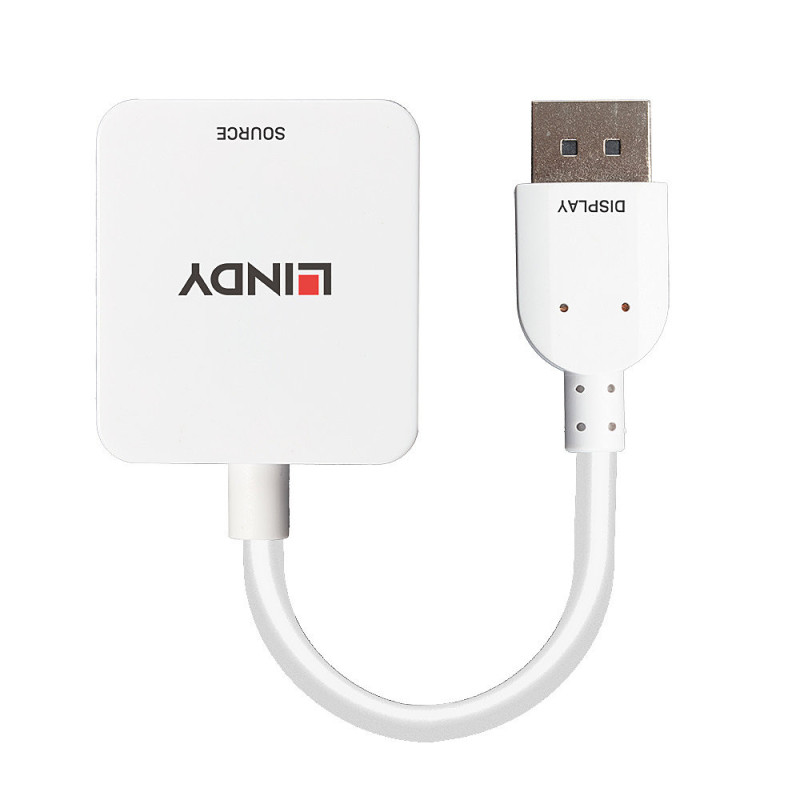

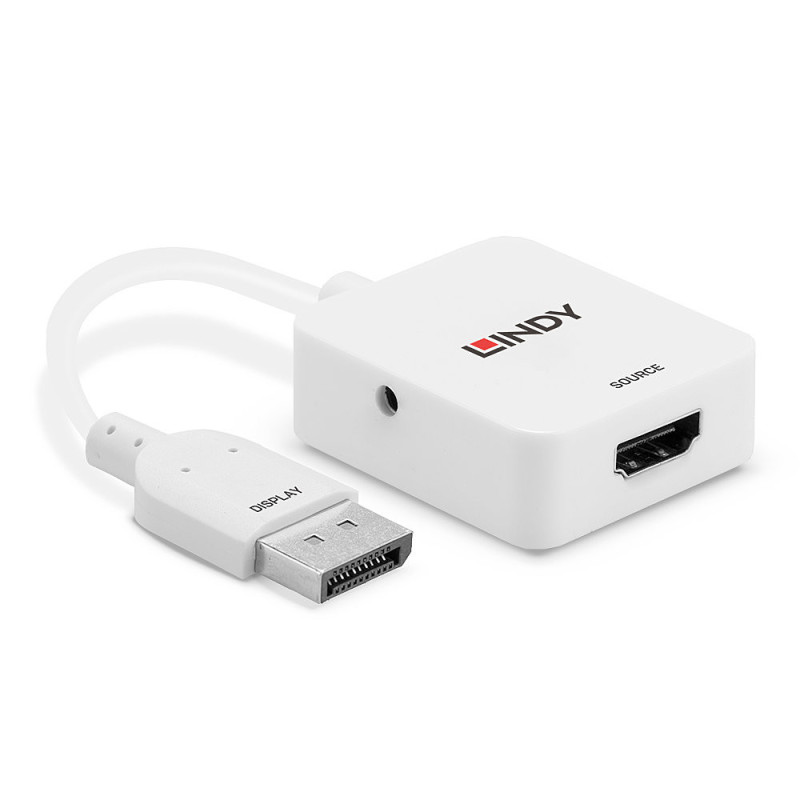

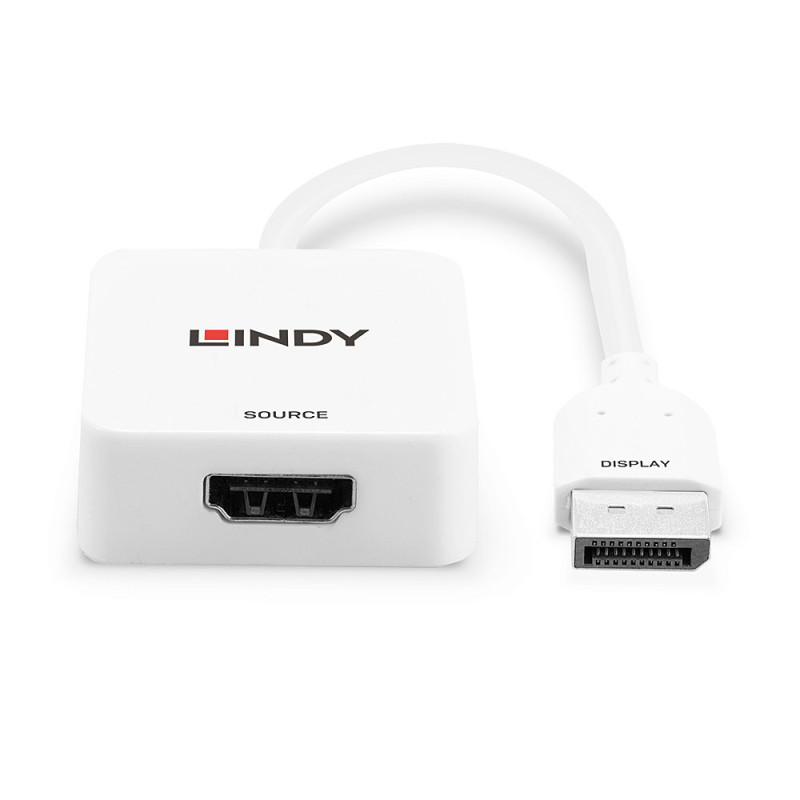

Connects an HDMI® source to a DisplayPort display with a maximum resolution of 3840x2160@60Hz. Supports 7.1 LPCM digital audio and has a 3.5/1.35mm DC power connector for additional power.
Connects an HDMI® source to a DisplayPort display with a maximum resolution of 3840x2160@60Hz. Supports 7.1 LPCM digital audio and has a 3.5/1.35mm DC power connector for additional power.




Connects an HDMI® source to a DisplayPort display with a maximum resolution of 3840x2160@60Hz. Supports 7.1 LPCM digital audio and has a 3.5/1.35mm DC power connector for additional power.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Connects an HDMI® source to a DisplayPort display with a maximum resolution of 3840x2160@60Hz. Supports 7.1 LPCM digital audio and has a 3.5/1.35mm DC power connector for additional power.
Features | |
|---|---|
| Product type | HDMI to DisplayPort converter |
| Model | HDMI 18G to DisplayPort 1.2 |
Specifications | |
| AV interface | HDMI® to DisplayPort |
| Interface standard | HDMI® / DisplayPort 1.2 |
| Supported bandwidth | 21.6Gbps |
| Maximum input resolution | 3840x2160@60Hz 4:4:4 8bit SDR |
| Maximum output resolution | 3840x2160@60Hz 4:4:4 8bit SDR |
| Chip | LT6711A |
| HDCP support | HDCP 2.2 |
| Supported audio | 7.1 LPCM digital audio up to 192kHz 24bit |
| Special features | 3.5/1.35mm DC power connector for additional 5V 1A PSU |
Connectors | |
| Input | HDMI® Type A Female |
| Output | DisplayPort Male |
Physical properties | |
| Dimensions (WxDxH) | 40x45x15mm |
| Cable length | 95mm |
| Housing material | ABS |
| Net weight | 0.032kg |
| Working temperature | -20°C - 85°C |
| Storage temperature | -20°C - 85°C |
| Humidity | 20 - 95% RH (non-condensing) |
| Color | White |
Package contents | |
| Included items | HDMI® 18G to DisplayPort 1.2 converter |
| Height | 194 mm |
| Length | 174 mm |
| Weight | 41 grams |
| Width | 15 mm |
