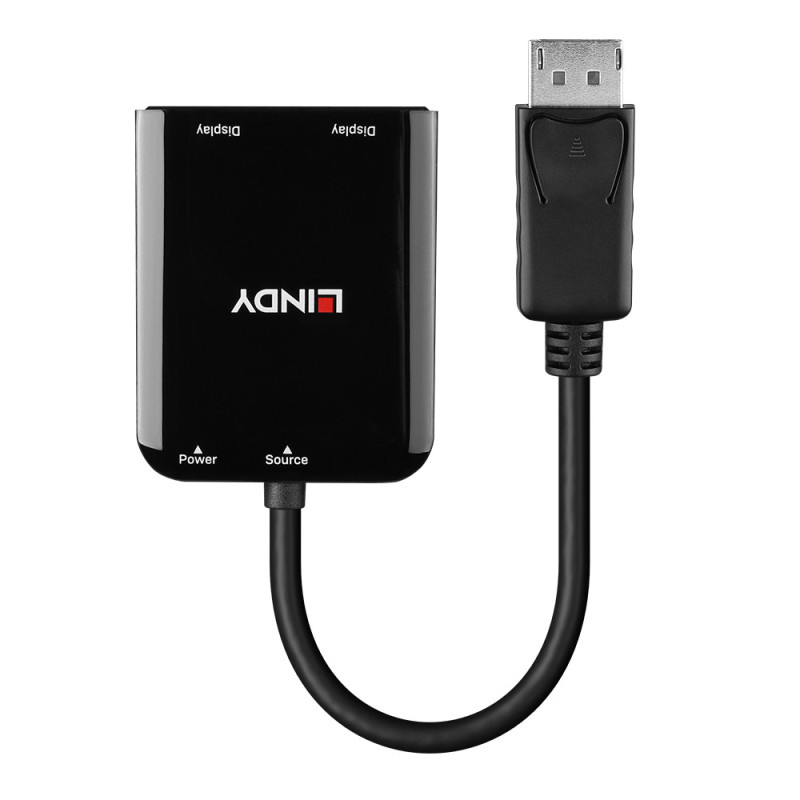

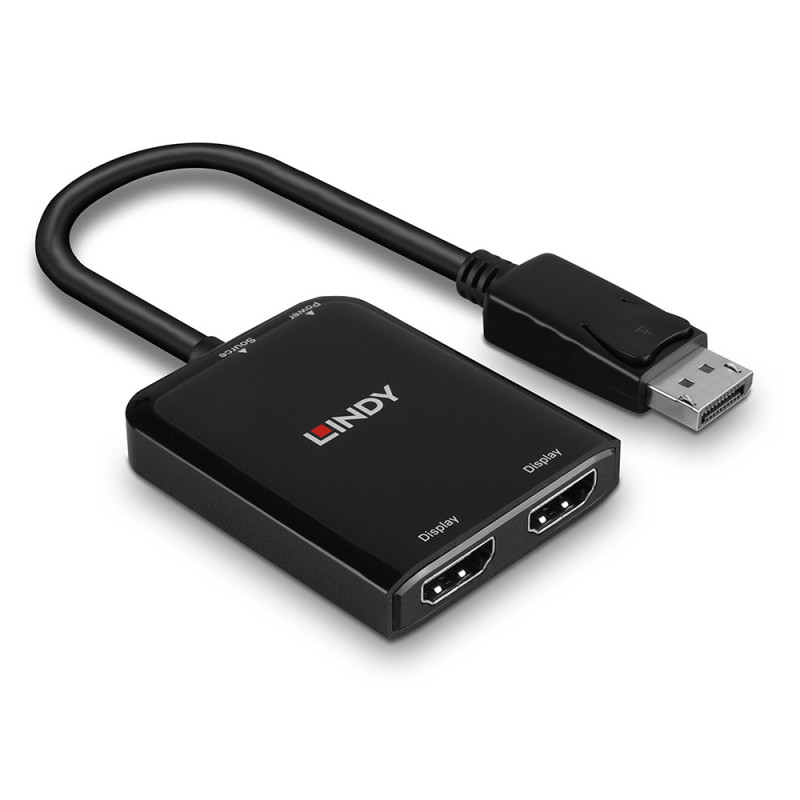

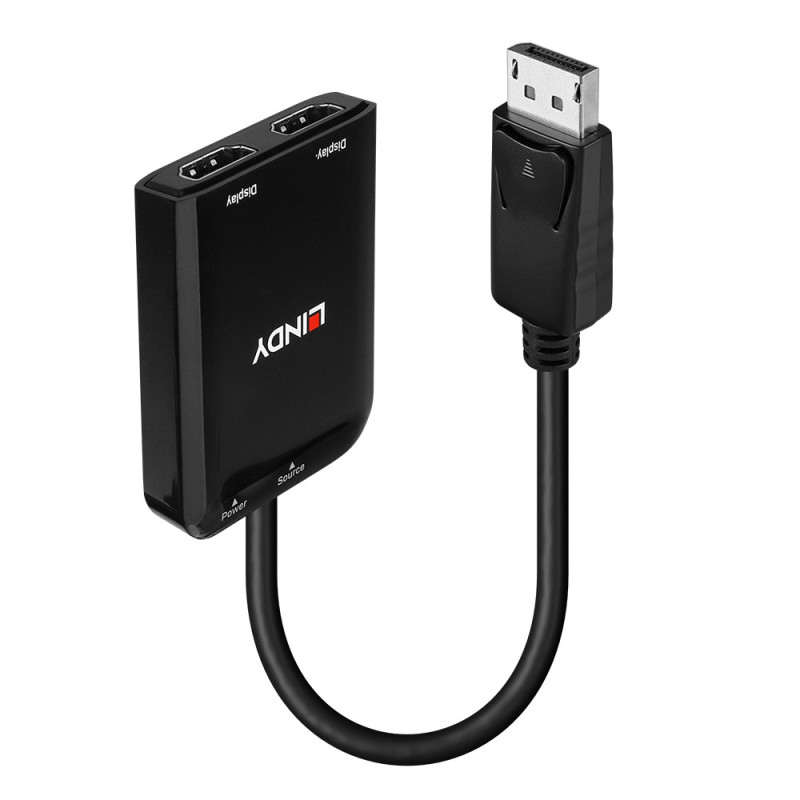

Connect two HDMI displays to a single DisplayPort source with this hub, which supports resolutions up to 3840x2160@30Hz. It features a DisplayPort input, two HDMI outputs, and requires a 5VDC power supply.
Connect two HDMI displays to a single DisplayPort source with this hub, which supports resolutions up to 3840x2160@30Hz. It features a DisplayPort input, two HDMI outputs, and requires a 5VDC power supply.



Connect two HDMI displays to a single DisplayPort source with this hub, which supports resolutions up to 3840x2160@30Hz. It features a DisplayPort input, two HDMI outputs, and requires a 5VDC power supply.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Connect two HDMI displays to a single DisplayPort source with this hub, which supports resolutions up to 3840x2160@30Hz. It features a DisplayPort input, two HDMI outputs, and requires a 5VDC power supply.
Features | |
|---|---|
| Product type | Adapter |
| Model | DisplayPort to 2 Port HDMI MST Hub |
Specifications | |
| AV interface | DisplayPort, HDMI |
| Interface standard | DP 1.2, HDMI 2.0 |
| Supported bandwidth | 21.6 Gbps |
| Maximum resolution | 2 x 3840x2160@30Hz 4:4:4 8 bit |
| HDCP support | HDCP 1.4 |
| Supported audio | By 7.1CH |
Connectors | |
| Input | DisplayPort (Male) |
| Exit | 2 x HDMI Type A (Female) |
| Power supply | Micro-USB (Female) |
Physical properties | |
| Dimensions (WxDxH) | 254x49x10mm (10x1.93x0.39in) |
| Housing material | ABS |
| Net weight | 0.070kg (0.15lb) |
| Working temperature | -20°C - 40°C (-4°F - 104°F) |
| Storage temperature | -40°C - 80°C (-40°F - 176°F) |
| Humidity | 5-90% RH (non-condensing) |
| Power requirements | 5VDC 1A |
| Color | Black |
Miscellaneous | |
| Packaging type | Poly bag |
| Packaging dimensions | 174x194x10mm (6.85x7.64x0.39in) |
| Total weight | 0.08kg (0.18lb) |
| Product compliance | CE, UKCA, FCC, RoHS and REACH |
Package contents | |
| DisplayPort MST Hub, USB Micro-B to USB Type A cable | |
| Height | 194 mm |
| Length | 174 mm |
| Weight | 80 g |
| Width | 10 mm |
