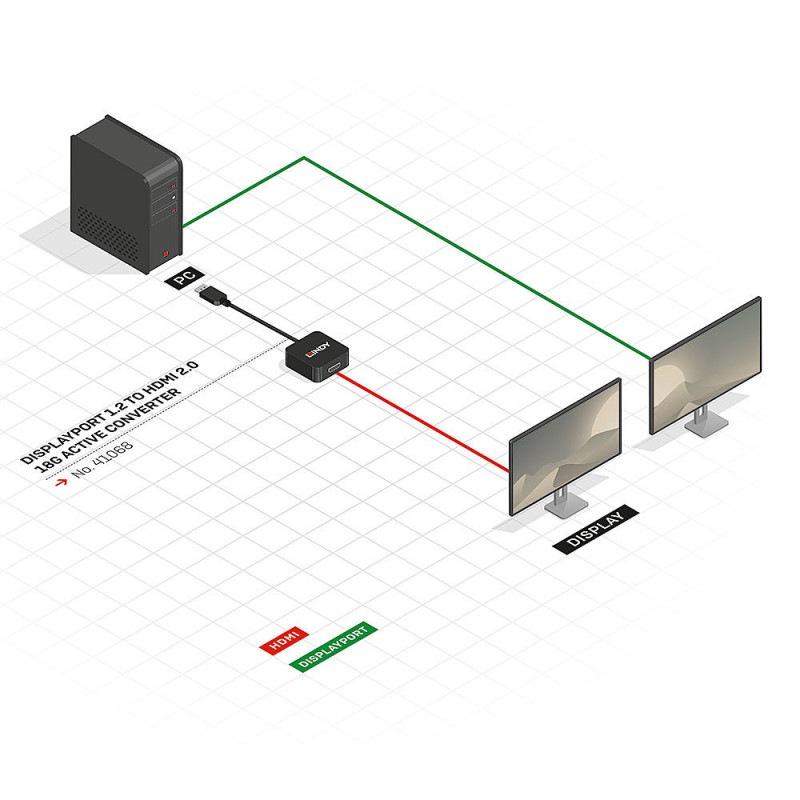

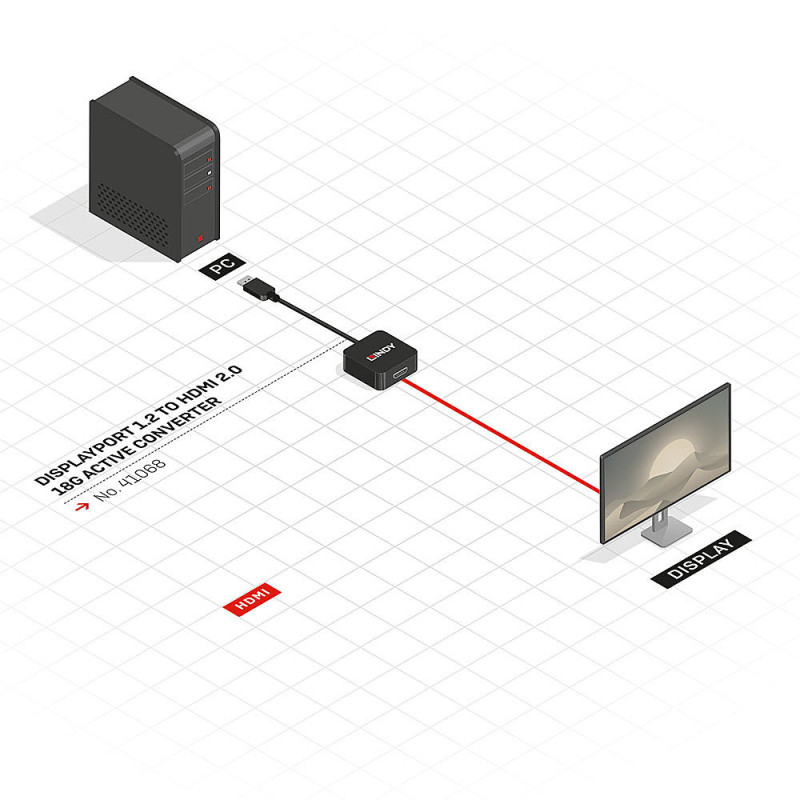

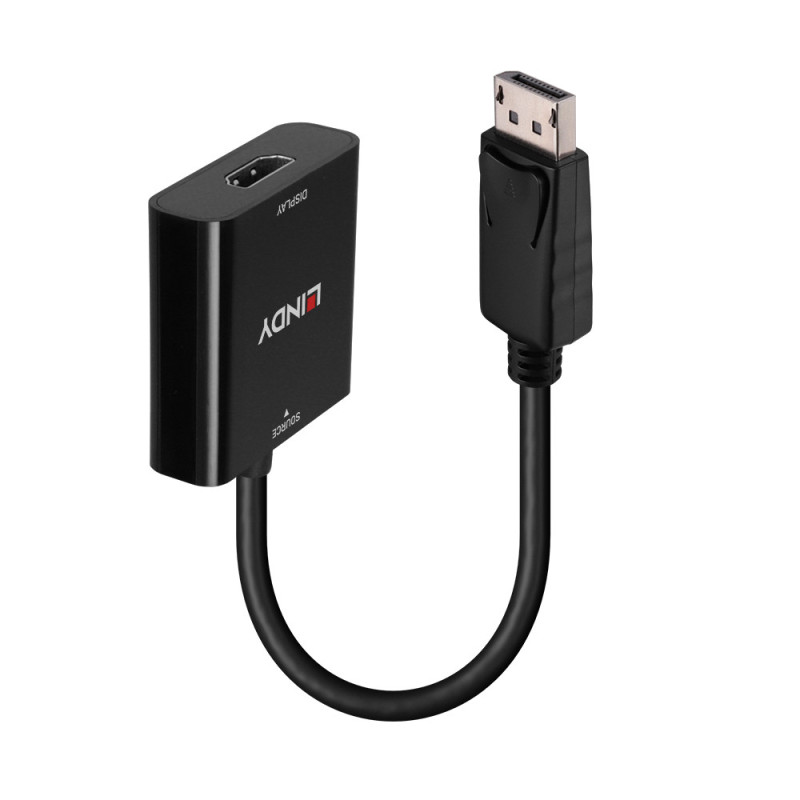

Connects a DisplayPort source to an HDMI display, supporting a maximum resolution of 3840x2160 at 60Hz. Also supports HDCP 2.2 and has a bandwidth of 18Gbps.
Connects a DisplayPort source to an HDMI display, supporting a maximum resolution of 3840x2160 at 60Hz. Also supports HDCP 2.2 and has a bandwidth of 18Gbps.





Connects a DisplayPort source to an HDMI display, supporting a maximum resolution of 3840x2160 at 60Hz. Also supports HDCP 2.2 and has a bandwidth of 18Gbps.
Guarantee
24 month
Delivery from Lithuania in
2 - 3
business days
Connects a DisplayPort source to an HDMI display with a maximum resolution of 3840x2160 at 60Hz. Supports HDCP 2.2 and has a bandwidth of 18Gbps.
Features | |
|---|---|
| Product type | Adapter |
| AV interface | DisplayPort to HDMI® |
| Interface standard | DisplayPort 1.2 / HDMI® |
Specifications | |
| Supported bandwidth | 18Gbps |
| Maximum input resolution | 3840x2160@60Hz 4:4:4 8bit |
| Maximum output resolution | 3840x2160@60Hz 4:4:4 8bit |
| Chipset | PS176 |
| HDCP support | HDCP 2.2 |
| Audio function supported | Transmission |
Connectors | |
| Input | DisplayPort Male |
| Output | HDMI® Type A Female |
Physical properties | |
| Dimensions (approximate) | 45x45x15mm (1.77x1.77x0.59in) |
| Cable length | 100mm (3.93in) |
| Housing material | TPE |
| Shell material | PVC |
| Shell diameter | 5mm (0.2in) |
| Minimum bending radius | 55mm (2.17in) |
| Net weight | 0.020kg (0.04lb) |
| Operating temperature | -20°C to 40°C (-4°F to 104°F) |
| Storage temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 20 - 90% RH (non-condensing) |
| Color | Black |
Miscellaneous | |
| Packaging type | Polyethylene bag |
| Package dimensions | 160x160x20mm (6.3x6.3x0.79in) |
| Total weight | 0.045kg (0.1lb) |
| Product compliance | CE, FCC, RoHS REACH |
| Height | 194 mm |
| Length | 174 mm |
| Weight | 45 g |
| Width | 15 mm |
