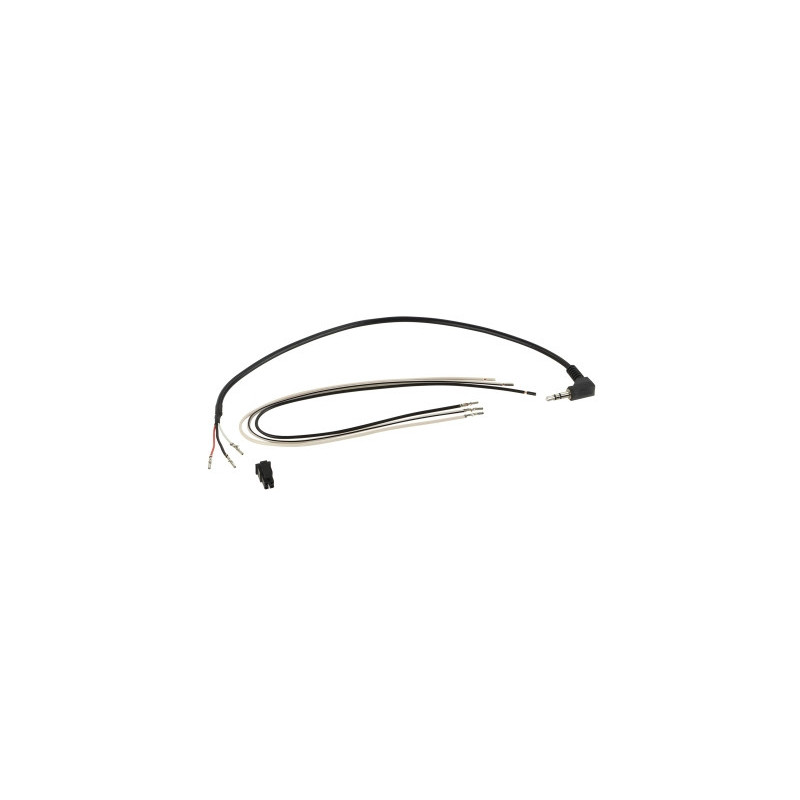

Cable swc 42a / 42 cx 401 multicore cable - various devices

Radio connection cable 42a / 42cx401 > various devicesRadio manufacturers use different variants of connecting the steering wheel remote control interface. Depending on the manufacturer and device, single-cable, dual-cable and multi-cable control as well as control via the socket can be used. The connection variant can be found in the radio manufacturer's operating instructions. All connections must be made before the interface is connected to the vehicle. If necessary, the LFB function must also be programmed in the radio menu according to the radio manufacturer's BDA instructions. The functionality must be checked before final installation.Notes:xa0 Connection: 4-pin Molex connector > 3.5 mm socket / multi-cable connection Radio connection cable LFB to LFB interface 42cx401 42a-xxxx-xxx DIP switch settings (ON / OFF) Atoto Retrofit devices are not supportedFor the following application: Alpine 3.5 mm jack connector Blaupunkt 2010 > Connector 3.5mm jack (Sony/Pioneer) Blaupunkt 2010> Key1 / Key2 / (GND) connection (Chinaxa0HU) China HU Key1 / Key2 / (GND) connector Clarion 3.5mm jack Digital Dynamics single cable connection ESX Key1/Key2 connector (Chinaxa0HU) JVC 3.5mm jack JVC single cable connection (Kenwood) Kenwood single cable connection Kenwood 2017> 3.5mm jack connector (Pioneer/Sony) Kenwood 2020> Key1 / Key2 / GND connector (China HU) Pioneer 3.5mm jack connector Snooper Key1/Key2 connector (China HU) Sony 3.5mm jack XZent single cable connection Zenec single cable connection 42cx401 DIP switch settings: Alpinexa0> OFF/OFF/OFF Blaupunkt 2010> > OFF/ON/OFF (OFF/ON/ON) Chinaxa0HU > OFF/ON/OFF Clarion > ON/ON/OFF Digital Dynamics > OFF/OFF/ON ESX > OFF/ON//OFF JVC > ON/OFF/ON (ON/ON/ON) (Single cable connection) JVC > ON/OFF/ON (ON/ON/ON) (jack connection) Kenwood > ON/ON/ON (Single cable connection) Kenwood 2017> OFF/ON/OFF (OFF/ON/ON) (connection to socket) Kenwood 2020 > OFF/ON/OFF (OFF/ON/ON) (Key 1/Key 2/GND) Pioneer > OFF/ON/ON Snooper > OFF/ON/OFF Sony > OFF/ON/ON XZent > OFF/OFF/ON Zenec > OFF/OFF/ON
