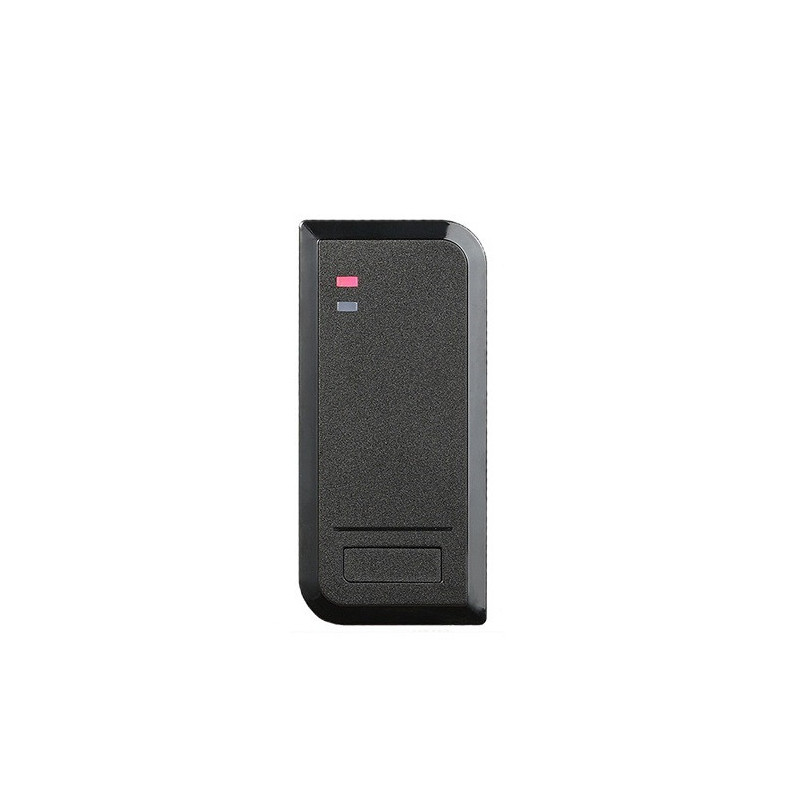

Proximity card reader with integrated controller (standalone), Mifare, IP66.
Features:
It is a compact, simple-designed, autonomous access control system that ensures contactless entry.
The access control controller is easily programmed with a remote control (add/delete card).
Designed for extreme weather conditions of -40°C~+60°C, it has IP66 water and dust resistance, suitable for outdoor or indoor use.
Built-in burglary protection.
A remote control is included. Also included are the following cards: Master Add Card and Master Delete Card.
Technical data:
Number of users (cards): 1000.
Supported card frequency: 13.56MHz (Mifare).
Voltage: DC 9~24 V.
Current: <40 mA.
Card scanning distance: 3~6 cm.
Number of doors supported: 1.
Wire connections: for lock, exit button.
Relay: 1 (for lock, No, Nc, Com contacts).
Adjustable relay activation time: 0-99 seconds (5 seconds by default).
Safety class: IP66.
Mounting: on the wall.
Material: ABS.
Operating temperature: -40°C~+60°C.
Relative humidity: 20%~98%RH.
Dimensions: 103 x 48 x 20 mm.
Weight: 100g.
Warranty: 24 months
