NET ROUTER IOT GATEWAY LTE4 / KNOT EC25-EU&KNE MIKROTIK
Product reference:
2-4752224009883
NET ROUTER IOT GATEWAY LTE4 / KNOT EC25-EU&KNE MIKROTIK
Product reference:
2-4752224009883
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
3 - 5
business days
Industrial LTE/BLE/GNSS connectivity that fits anywhere. Originally designed for coffee and vending machines - perfect for all kinds of industrial automation.

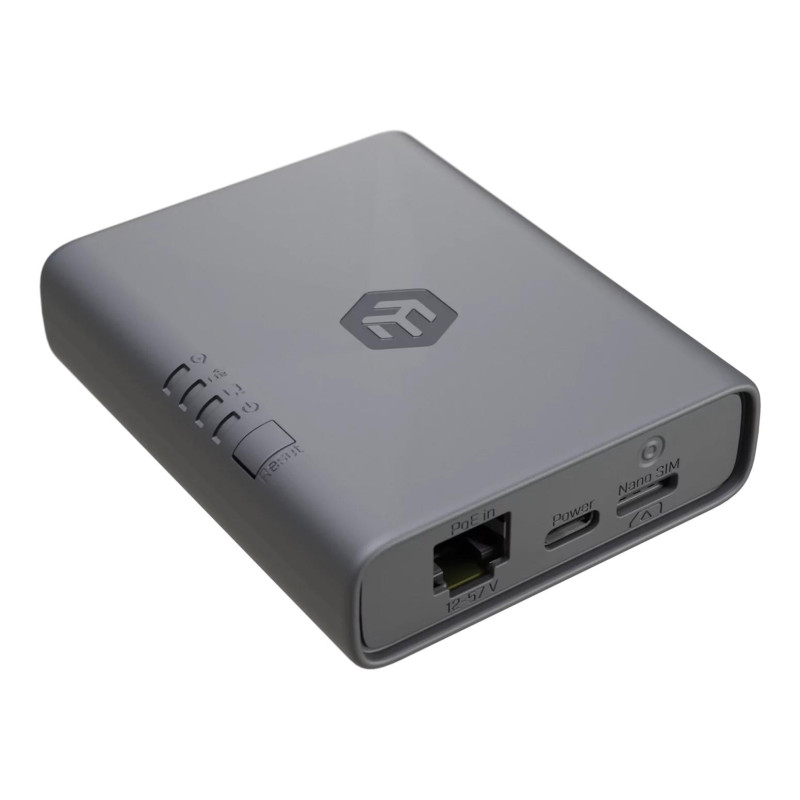

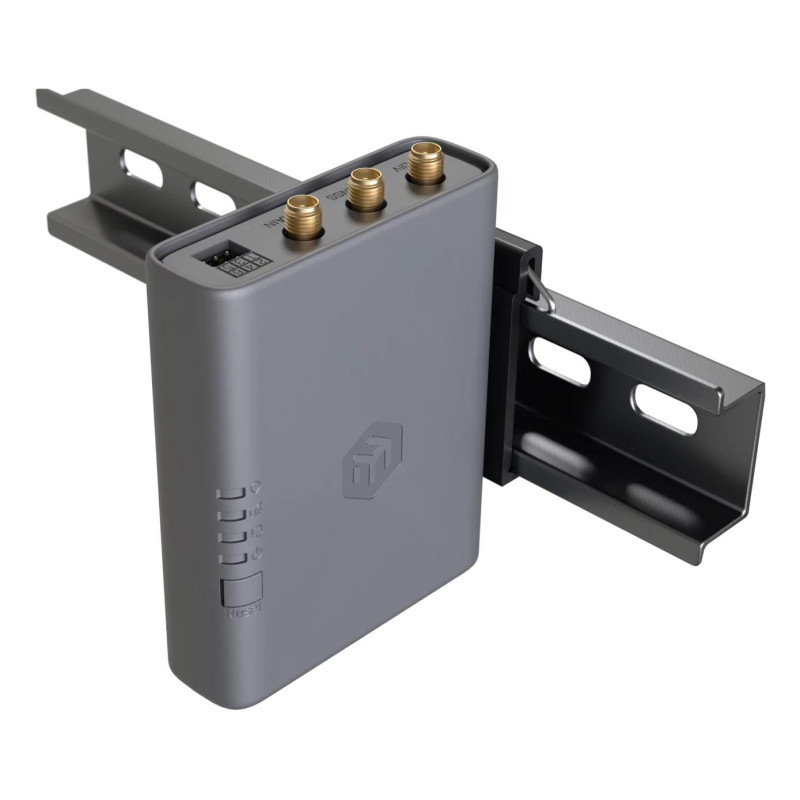

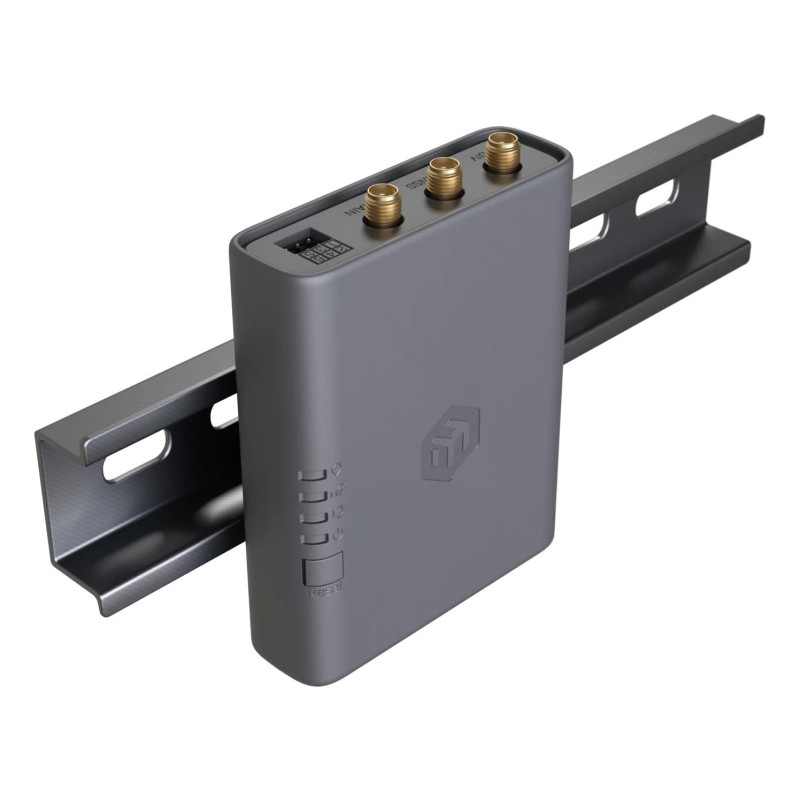

KNOT Embedded LTE4 is a tiny but powerful industrial LTE gateway designed for integrators, automation specialists, and IoT system builders. It fits into tight spaces, mounts directly on a DIN rail, and delivers reliable LTE Cat4 connectivity with Bluetooth and GNSS support.
Use it as a primary gateway, a backup link, or an IoT data collection node - everything is powered by RouterOS for maximum flexibility.
Sensor-ready GPIO header
For simple automation and monitoring (Digital input/Analog Input/OD output). All pins are 24V tolerant.
Powered by RouterOS
Full networking stack, VPNs, firewall, SMS control and notifications, automation, remote management, and so much more!
Whether you're building a new system or adding LTE to an existing installation, KNOT Embedded LTE4 adapts easily. It's easy to integrate, easy to deploy, and built to perform in harsh environments - from smart city deployments to industrial automation and mobile tracking.
| 4G LTE kategorija | 4 |
| Antenos jungties tipas | SMA |
| Antenos tipas | Vidinis |
| Atitikties sertifikatai | CE/EAC/RoHS |
| Bluetooth | Taip |
| Bluetooth versija | 5.1 |
| Bruto svoris | 0.24 kg |
| Darbo temperatūros diapazonas (TT) | -40 - 70 °C |
| Duomenų tinklas | 2G/3G/4G/LTE |
| Energijos suvartojimas | 7 W |
| Eterneto LAN duomenų perdavimo norma | 10/100/1000 Mbit/ai |
| Ethernet LAN (RJ-45) portų kiekis | 1 |
| GPS (palydovinis) | Taip |
| Integruotas procesorius | Taip |
| Kintamosios srovės adapteris | Taip |
| LED indikatoriai | Taip |
| Maitinimas per Eternetą (PoE) | Taip |
| Mobiliojo tinklo generavimas | 4G |
| Model | KNOT Embedded LTE4 |
| Montavimo tipas | DIN bėgeliai |
| Nedaug energijos naudojantis "Bluetooth" (BLE) | Taip |
| Neto svoris | 0.1 kg |
| Palaikomos 4G FDD-LTE juostos | 800,900,1800,2100,2600,700 MHz |
| Palaikomos 4G TDD-LTE juostos | 2600,2500,2300 MHz |
| Procesoriaus dažnis | 1200 MHz |
| Procesoriaus gamintojas | ARM |
| Procesoriaus modelis | Cortex-A7 |
| Procesoriaus šeima | ARM Cortex |
| Product model code | EC25-EU&KNe |
| Produkto spalva | Pilka |
| Shipping Box Depth | 49.5 cm |
| Shipping Box Height | 12.5 cm |
| Shipping Box Weight | 4.8 kg |
| Shipping Box Width | 24 cm |
| SIM daugia-kortelių skaičius | 1 |
| SIM kortelės anga | Taip |
| SIM kortelės tipas | "NanoSIM" + "eSIM" |
| SSD disko talpa | 512 GB |
| Summary | Mikrotik KNOT Embedded LTE4. Product colour: Grey, Mounting type: DIN-rail. Antenna type: Internal, Antenna connector type: SMA, Mean time between failures (MTBF): 100000 h. Processor manufacturer: ARM, Processor family: ARM Cortex, Processor model: Cortex-A7. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Mobile network generation: 4G. SIM card type: NanoSIM + eSIM |
| Tinklo standartai | IEEE 802.3af/IEEE 802.3at |
| Trumpųjų pranešimų paslauga (SMS) | Taip |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.105 |
| Unit Box Width | 0.055 |
| Unit Brutto Volume | 0.0007425 cubm |
| Valdymo platforma | RouterOS v7 |
| Vendor Homepage | https://mikrotik.com/product/knot_embedded_lte4 |
| Vidinė atmintis | 256 MB |
| Vidutinis laikas tarp trikčių (MTBF) | 100000 h |
| Vieneto aukštis | 9.5 cm |
| Vieneto gylis | 10.5 cm |
| Vieneto plotis | 5.5 cm |
| Vienetų skaičius vienoje siuntimo dėžėje | 20 |
| Įdiegtų procesorių skaičius | 1 |
| Įėjimo įtampa | PoE 12-57, USB-C 5 V |
