NET GATEWAY CLOUD FIBER / UCG-FIBER UBIQUITI
Product reference:
2-810177161288
NET GATEWAY CLOUD FIBER / UCG-FIBER UBIQUITI
Product reference:
2-810177161288
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
3 - 5
business days
Desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, selectable NVR storage, and full UniFi application support.
| Summary | Ubiquiti UCG-Fiber (30W). Product colour: White, Enclosure material: Polycarbonate (PC), LED indicators: Status. Display type: LCM, Processor manufacturer: ARM, Processor family: ARM Cortex. Routing protocols: OSPF. Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s. Security algorithms: 802.1x RADIUS, IPSec, TLS |
| Vendor Homepage | https://eu.store.ui.com/eu/en/category/cloud-gateways-compact/collections/cloud-gateway-fiber/products/ucg-fiber?variant=ucg-fiber-eu |
| Unit Box Height | 0.22 |
| Unit Box Length | 0.08 |
| Unit Box Width | 0.24 |
| Enclosure material | Polycarbonate (PC) |
| LED indicators | Status |
| Product colour | White |
| Built-in processor | Yes |
| Control display unit | Yes |
| Display type | LCM |
| Internal memory | 3000 MB |
| Number of processors installed | 1 |
| Processor family | ARM Cortex |
| Processor frequency | 2200 MHz |
| Processor manufacturer | ARM |
| Routing protocols | OSPF |
| Bluetooth | Yes |
| Ethernet LAN data rates | 10/100/1000/10000/2500 Mbit/s |
| Load balancing | Yes |
| Firewall security | Yes |
| Security algorithms | 802.1x RADIUS/IPSec/TLS |
| VLAN support | Yes |
| DC-in jack | Yes |

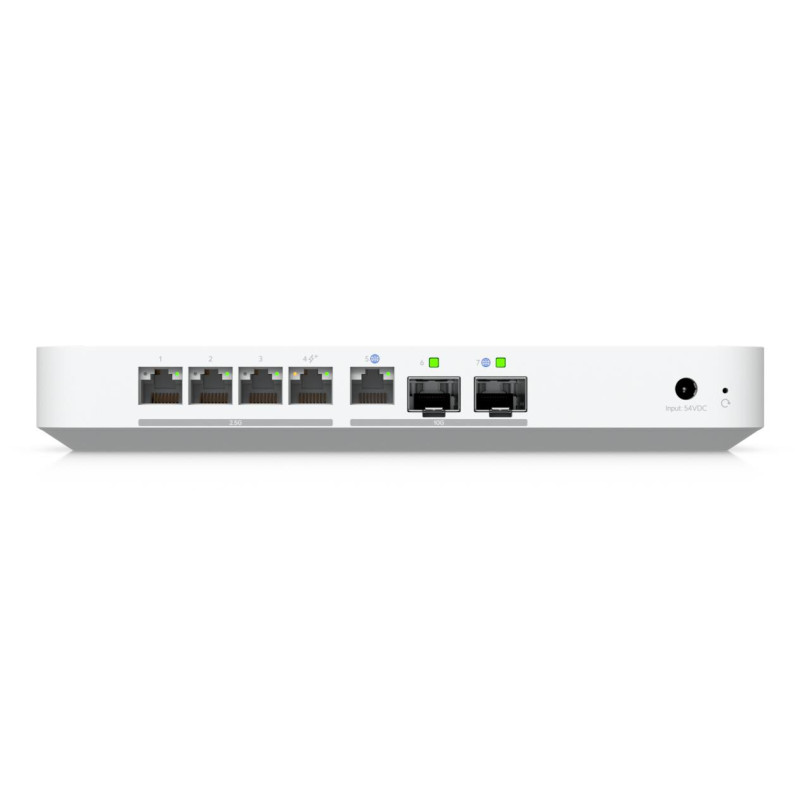

| Ethernet LAN (RJ-45) ports | 4 |
| SFP+ ports quantity | 2 |
| WAN connection | Ethernet (RJ-45),SFP,SFP+ |
| Multicast support | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| DC input voltage | 54 V |
| Electromagnetic (EMP) protection | Yes |
| Electromagnetic (EMP) protection (air) | 8 kV |
| Electromagnetic (EMP) protection (contact) | 4 kV |
| Input current | 1.1 A |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 29.4 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Depth | 127.6 mm |
| Height | 30 mm |
| Weight | 675 g |
| Width | 212.8 mm |

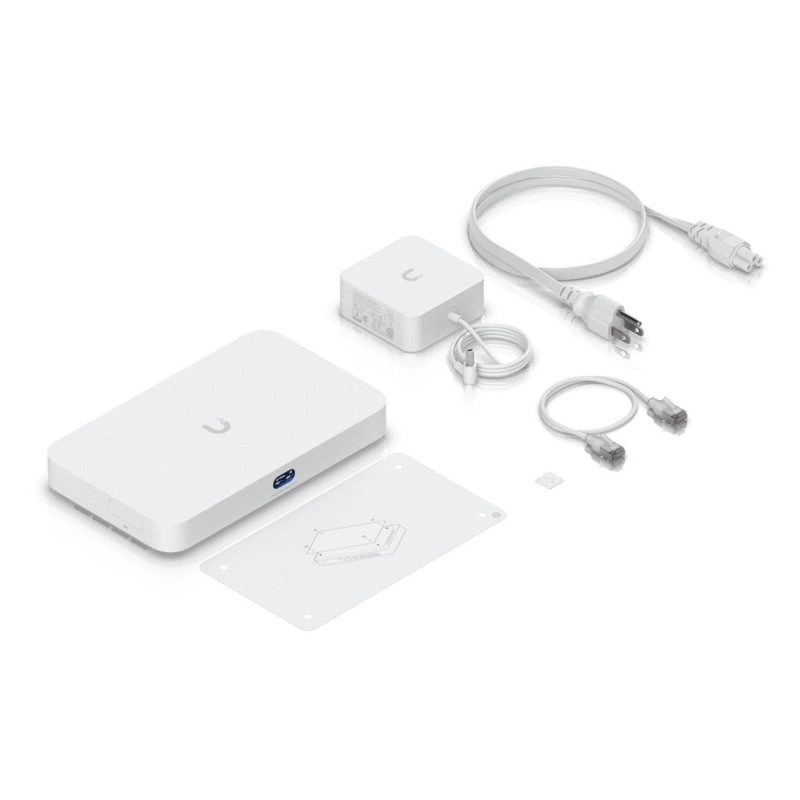

| AC adapter included | Yes |
| Cables included | LAN (RJ-45)/Power |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |

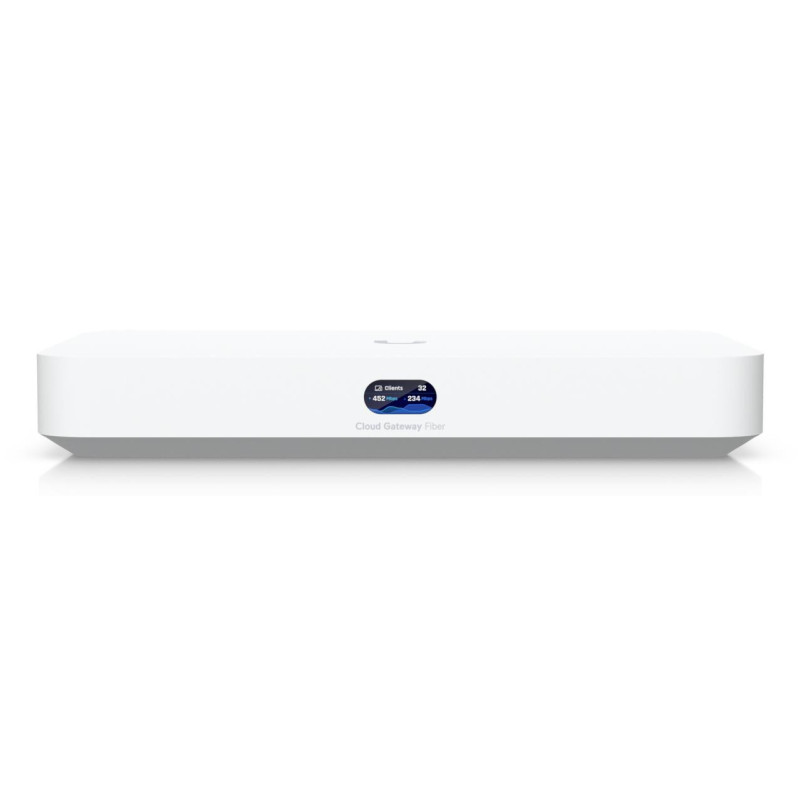

| Display diagonal | 0.96 " |
| Export Control Classification Number (ECCN) | EAR99 |
| Model | Cloud Gateway Fiber |
| Product model code | UCG-FIBER |
| Units per Shipping Box | 8 |
| Unit Calculated Volume | 0.00816 cubm |
| Product Net Weight | 0.675 kg |
| Unit Calculated Weight | 1.61 kg |
