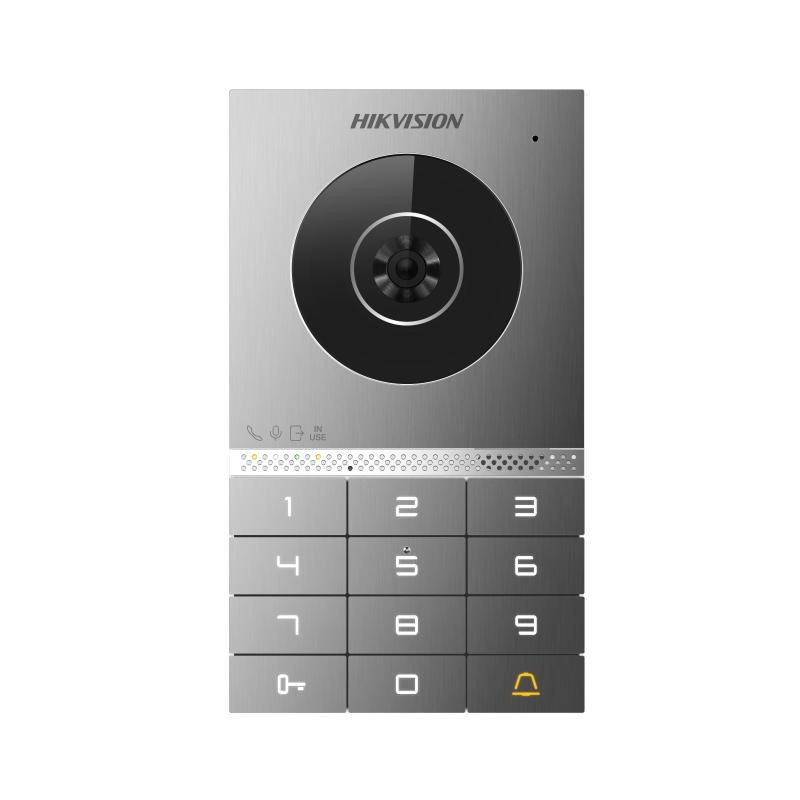

Hikvision phone box DS-KV7023EY-IME2
Product reference: 26-6936422141561
  • 2MP HD camera
  • PIN code support
  • Plug Play
  • M1 card reader support
  • IK08
  • IP65
  • In stock
Hikvision phone box DS-KV7023EY-IME2

Hikvision phone box DS-KV7023EY-IME2

Product reference: 26-6936422141561
  • 2MP HD camera
  • PIN code support
  • Plug Play
  • M1 card reader support
  • IK08
  • IP65
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
32268 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Audio settings
  • Audio compression bit rate 64 Kbps
  • Audio compression format G.711U, G.726
  • Audio input Built-in omnidirectional microphone
  • Audio output Built-in loudspeaker (More than 80 dB within 30 cm)
  • Sound quality Noise suppression and echo cancellation
  • Volume adjustment Adjustable
  • Capacity
  • Associated indoor station capacities Max. 1 flat, up to 4 indoor stations
  • Sub-door station capacity 16
  • User capacity 2000
  • Interfaces
  • Alarm input 2（supports Exit button or Door contact input）
  • Alarm output NA
  • Door contact input 1
  • Exit button 1
  • Shutter control 2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
  • Web interface NA
  • Power interface 48V，Powered by distributor DS-KAD7060EY or 12VDC
  • RS-485 1
  • TAMPER 1
  • TF card NA
  • Two-wire IP interface 1
  • Wiegand NA
  • Display settings
  • Mode of operation NA
  • Resolution NA
  • Screen size NA
  • Type NA
  • General
  • Application environment Outdoor
  • Battery /
  • Button 12
  • Dimensions 165mm × 95mm × 25mm(6.5" × 3.7" × 0.98")
  • Indicator 4 LED lights(Opening door、Calling、Intercom、In use）
  • Installation Surface mounting flush mounting
  • Language English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
  • Energy consumption ≤ 6W
  • IP protection level IP65 IK08
  • Weight NA
  • Working conditions humidity 10% to 90%
  • Operating temperature -40° C to 60° C (-22° F to 140° F)
  • Internet settings
  • 3G/4G NA
  • Bluetooth NA
  • Wi-Fi Only AP mode for configuration
  • Wired network 10/100 Mbps self-adaptive through 2-wire interface
  • System parameters
  • Processor Embedded Processor
  • Operating system Embedded Linux operating system
  • RAM 256MB
  • ROM 4GB
  • Image settings
  • FOV Horizontal: 135°, Vertical: 85°
  • Lens 1
  • Resolution 2 MP
  • Additional lighting Low illumination, IR supplementary lights
  • Video standard H.264
  • WDR Support

Manufacturer codePSKDSKV7023EYIME2
ManufacturerHikvision
Weight0.492 kg
