Bezprzewodowy nadajnik i odbiornik wideo RCA AMIO-02486

WIRELESS VIDEO SIGNAL TRANSMITTER FOR REVERSING CAMERAS

Wireless module for 12V RCA reversing cameras

Wireless receiver and transmitter module for parking cameras. The device works with a 12V automotive electrical system. This is an excellent tool that allows you to install a monitor in your vehicle and use it as a parking camera. This is a much more convenient solution than a standard parking sensor that uses audible signals. Our kit makes installation incredibly simple, making parking in tight spaces a breeze.

UNIVERSAL SOLUTION FOR ANY CAR - WORKS WITH ANY DEVICE WITH AN AV RCA INPUT

Product features:

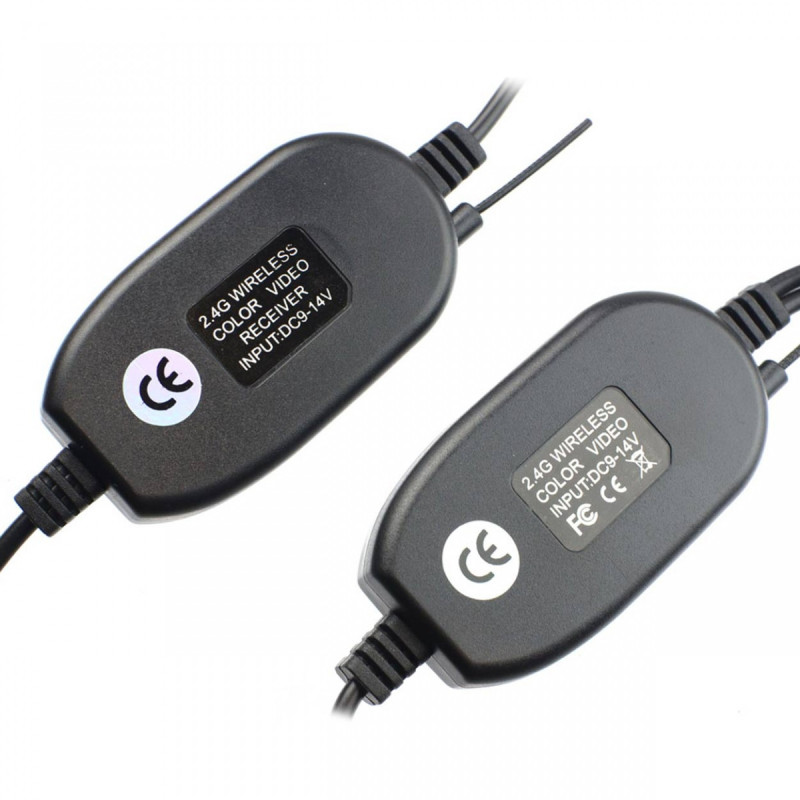

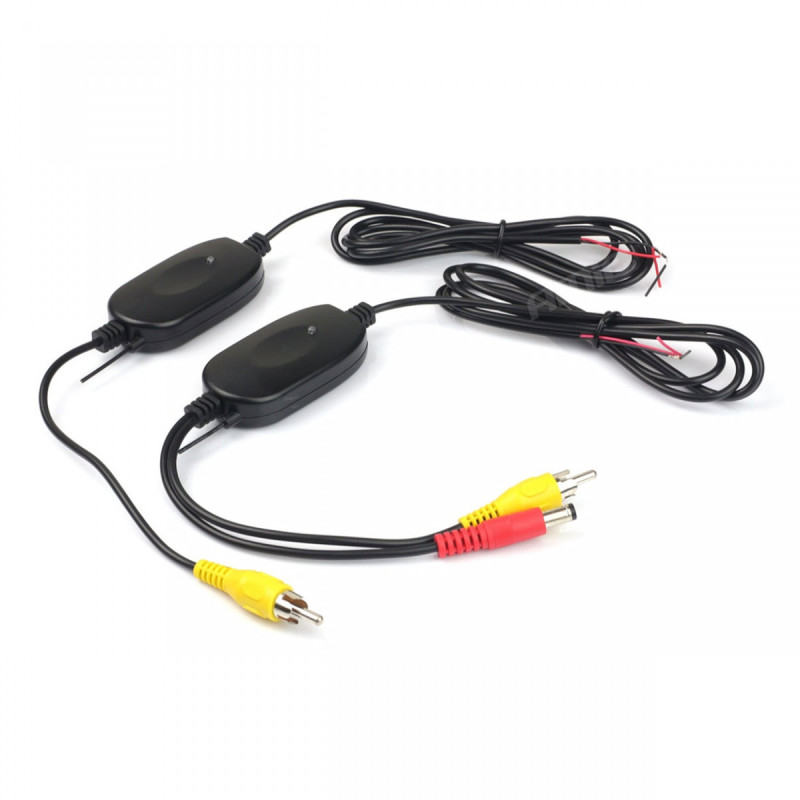

Wireless video signal transmission module. Perfect for a car rearview camera equipped with a monitor or other video equipment with a video signal input.

·Compatible with virtually any camera, any video equipment and any receiver, e.g. short-range monitoring.

·Built-in indicator diodes.

·Very easy to install and use.

Specification:

Power supply: 9-14V (standard 12V)

Receiver plug: RCA cinch + power cable (plus, minus)

Transmitter plug: RCA cinch, DC power plug + power cable (plus, minus)

Transmission frequency: 2.4 GHZ

Power cable length (plus, minus) in receiver/transmitter: 130cm

Length of the power cable with DC plug and RCA cinch (receiver/transmitter): approx. 18cm

Range: up to 10 meters

Modulation mode: FM

WIRELESS

The transmitter and receiver utilize 2.4 GHz radio frequencies to wirelessly transmit the video signal captured by the reversing camera to any DVR. Under optimal conditions (without interference), the signal can be transmitted up to 50 meters. Using a wireless transmitter simplifies reversing camera installation and eliminates the need to run additional cables through the vehicle's interior.

UNIVERSAL

Our transmitter works with all video devices equipped with RCA connectors. It supports color video transmission in both PAL and NTSC formats. The modules are small, making them easy to conceal in the cockpit. Direct connection to a power source allows the rearview camera to be activated when reverse gear is engaged.

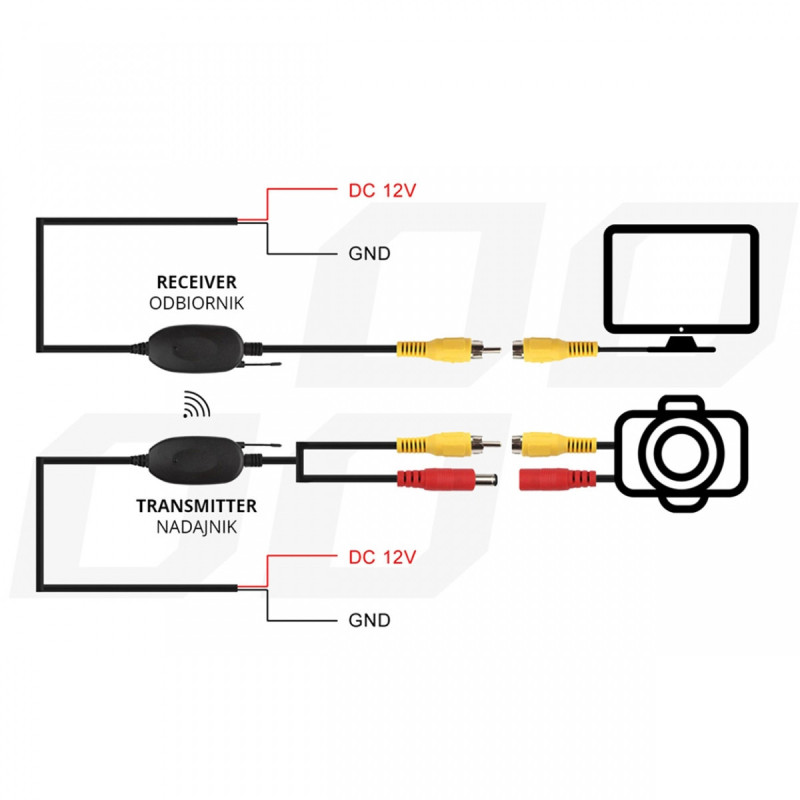

CONNECTION DESCRIPTION

1.RCA connector for connecting a monitor

2.12V -

3.12V +

4.reversing camera power connector

5.RCA connector for rear view camera

6.reversing camera (not included)

7.monitor/recorder (not included)

8.receiver

9. transmitter

10.12V +
