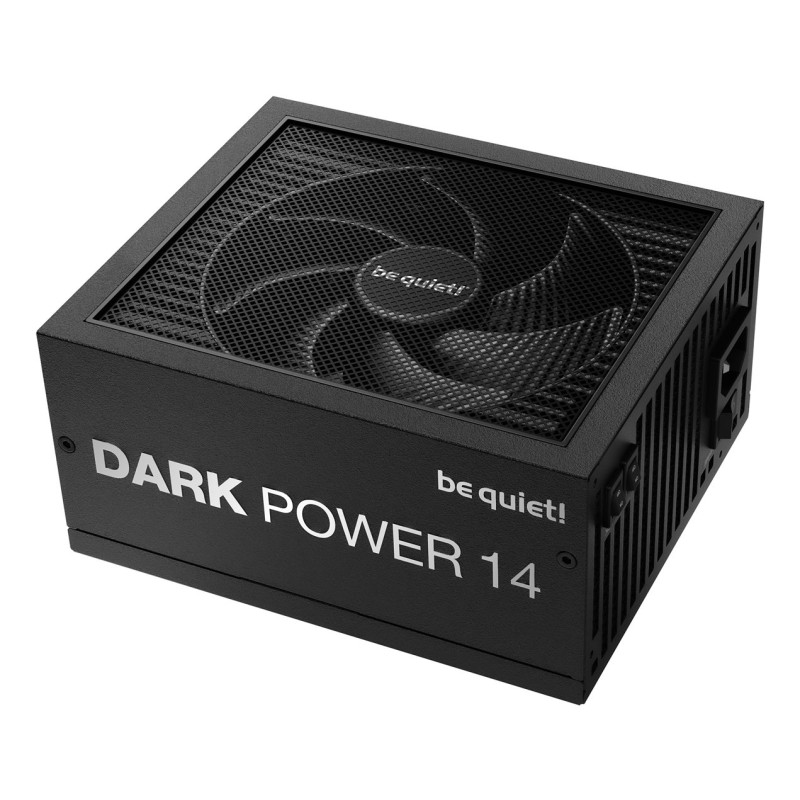

be quiet! Dark Power 14 1000 W - 80 Plus Titanium power supply unit 20+4 pin ATX ATX Black
Product reference:
6-BP020EU
be quiet! Dark Power 14 1000 W - 80 Plus Titanium power supply unit 20+4 pin ATX ATX Black
be quiet! Dark Power 14 1000 W - 80 Plus Titanium power supply unit 20+4 pin ATX ATX Black
Product reference:
6-BP020EU
be quiet! Dark Power 14 1000 W - 80 Plus Titanium power supply unit 20+4 pin ATX ATX Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
120 month
Delivery from Europe in
6 - 11
business days
| Sustainability certificates | Triman, ENERGY STAR, ErP |
| Product colour | Black |
| Cooling type | Active |
| Fan speed | 0 - 2100 RPM |
| On/off fan switch | Yes |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Max output current (+5V) | 24 A |
| Number of +12V rail(s) | 4 |
| Max output current (-12V) | 0.5 A |
| Max output current (+12V4) | 40 A |
| Max output current (+5Vsb) | 3 A |
| Peak power | 1100 W |
| Maximum input current (@220V) | 5 A |
| Maximum input current (@110V) | 10 A |
| Power factor | 0.98 |
| Efficiency | 93.8% |
| Max output current (+12V3) | 40 A |
| Power protection features | Under voltage, Over current, Overload, Overheating, Short circuit, Over voltage, Surge & inrush protection (SIP) |
| Combined power (+5V) | 120 W |
| Max output current (+12V1) | 33 A |
| Combined power (+3.3V) | 120 W |
| Hold time | 20.1 ms |
| Max output current (+12V2) | 33 A |
| Max output current (+3.3V) | 25 A |
| Combined power (+12V) | 996 W |
| Total power | 1000 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Width | 150 mm |
| Weight | 2.2 kg |
| Depth | 175 mm |
| Height | 86 mm |
| Noise level | 18.2 dB |
| Purpose | PC |
| EPS version | 2.92 |
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | FDB |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Titanium |
| Power supply unit (PSU) form factor | ATX |
| Compliance certificates | TÜV mark, UKCA, Federal Communications Commission (FCC), RoHS, WEEE, CB, cTUVus |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | Yes |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Peripheral (Molex) power cable length | 900, 1050 mm |
| CPU power cable length | 70 cm |
| Number of SATA power cables | 13 |
| SATA power cable length | 750 mm, 900, 600 mm, 1050 mm |
| PCI Express connector | Yes |
| ATX power connector (20+4 pin) | Yes |
| PCI Express power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (12-pin) | 1 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |

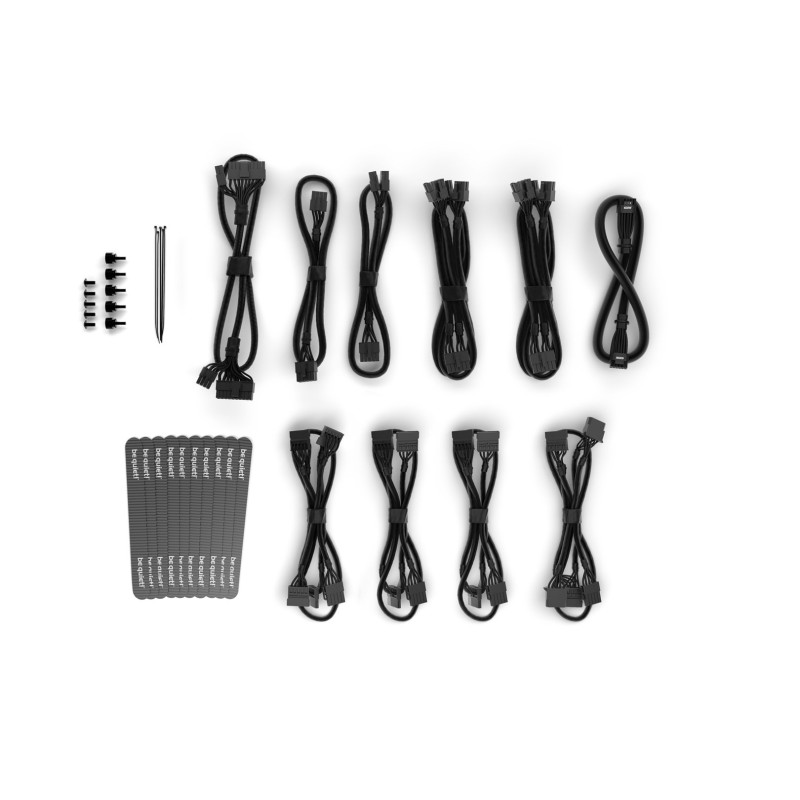

| Cabling type | Fully-Modular |
| Cable ties included | Yes |
| Screws included | Yes |
| Shipping (inner) case net weight | 19.3 kg |
| Shipping (inner) case height | 26 cm |
| Products per shipping (inner) case | 4 pc(s) |
| Shipping (inner) case length | 52.8 cm |
| Shipping (inner) case width | 36.8 cm |
