Excursion xxx-8c - spl 98/200mm speaker set

2-way SPL car speaker set: 200mm XXX-M8 woofers, XXX-T1 tweeters, crossovers - 4ohm, 200/600W, 100dB, 80-20000Hz, depth 90mm

Excursion XXX-8C
A 2-way, high-efficiency, separate car speaker system from the XXXTreme series by the German brand Excursion. The set includes two 200 mm Excursion XXX-M8 mid-woofers, two 98 mm Excursion XXX-T1 tweeters, and two 12 dB/octave Excursion XXX-2X 2-way passive crossovers. Thanks to its exceptionally high efficiency, this set is among the loudest-sounding car speakers available on the market. These products are designed primarily for the most demanding loud audio enthusiasts and for use in the cars of SPL car audio competitions and tournaments, as a perfect complement to audio systems utilizing multiple powerful subwoofers. They are also ideal for demonstration cars (demo cars) displayed publicly at trade shows, rallies, or other events. Each component included in the Excursion XXX-8C kit can also be purchased separately.

BASIC PARAMETERS OF THE SET:

• 2-way high-efficiency 98/200 mm car speaker set
• RMS power: 200 W
• Max power: 600 W
• impedance: 4 Ohm
• efficiency: 100 dB (1W/1m)
• frequency response: 80 - 20,000 Hz
• tweeter/woofer mounting depth: 35/90 mm
• warranty and service of the Polish importer: 24 months

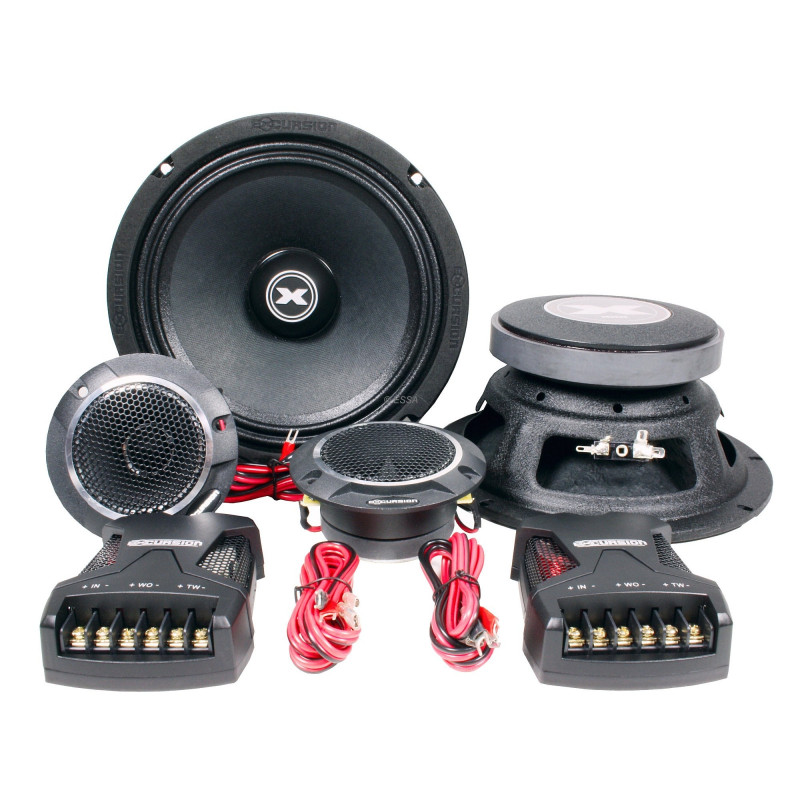

The set includes:

• 2 Excursion XXX-T1 tweeters
• 2 x Excursion XXX-M8 mid-bass speakers (woofers)
• 2 Excursion XXX-2X passive crossovers
• 2 x 30 cm OFC 2x2.0 mm2 speaker cables for connecting an additional pair of woofers
• 2 x 80 cm OFC 2x2.0 mm2 speaker cables to connect tweeters to the crossover
• 2 x 100 cm OFC 2x2.0 mm2 speaker cables to connect the woofers to the crossover
• Excursion logo sticker

KIT COMPONENTS

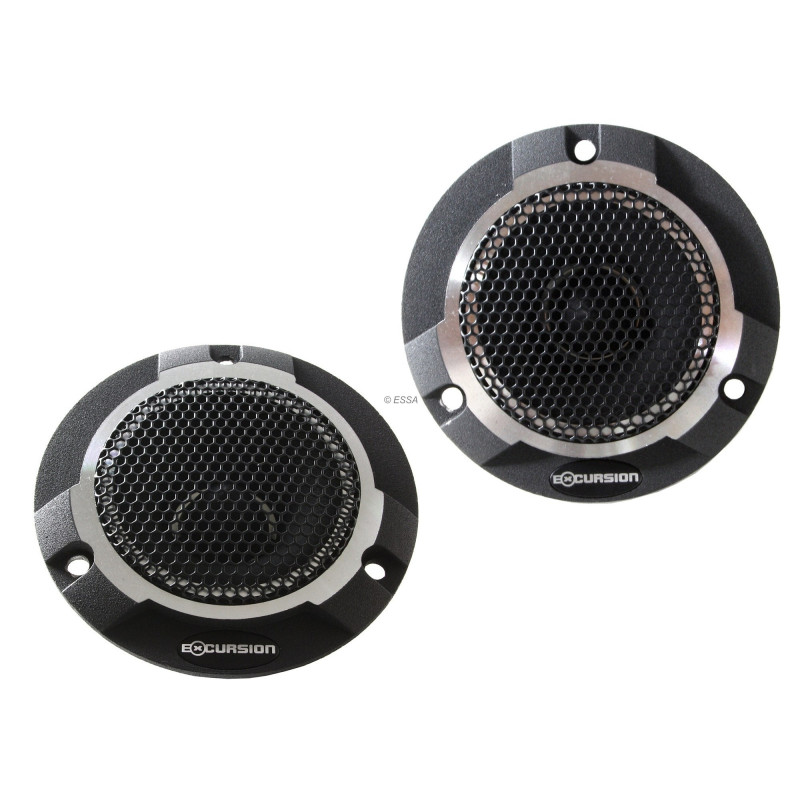

Tweeters XXX-T1:

• aluminum membrane with mesh cover
• RMS/Max power: 200/600 W
• impedance: 4 Ohm
• resistance (DC): 3.3 Ohm
• efficiency: 105 dB (1W/1m)
• frequency response: 2000 - 20,000 Hz
• resonance frequency: 3000 Hz
• Coil: 1 inch / 25mm CCAW, high temp
• efficient magnetic system: 10 oz, High Flux Ferrite Y35
• mounting depth: 35 mm
• mounting hole diameter: 70 mm
• magnet diameter: 45 mm
• total outer diameter: 98 mm
• aluminum housing (CNC)

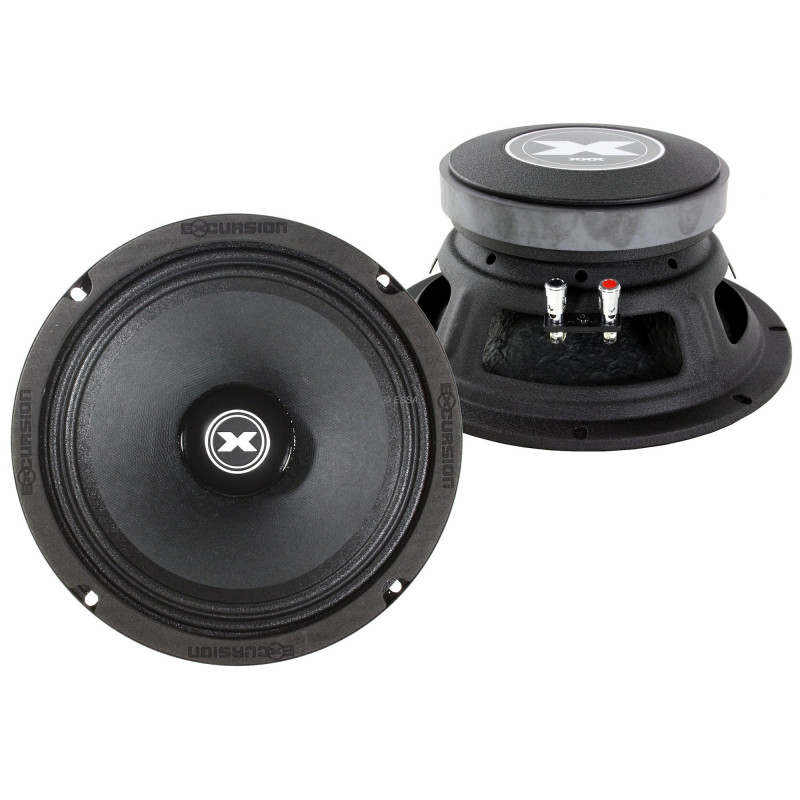

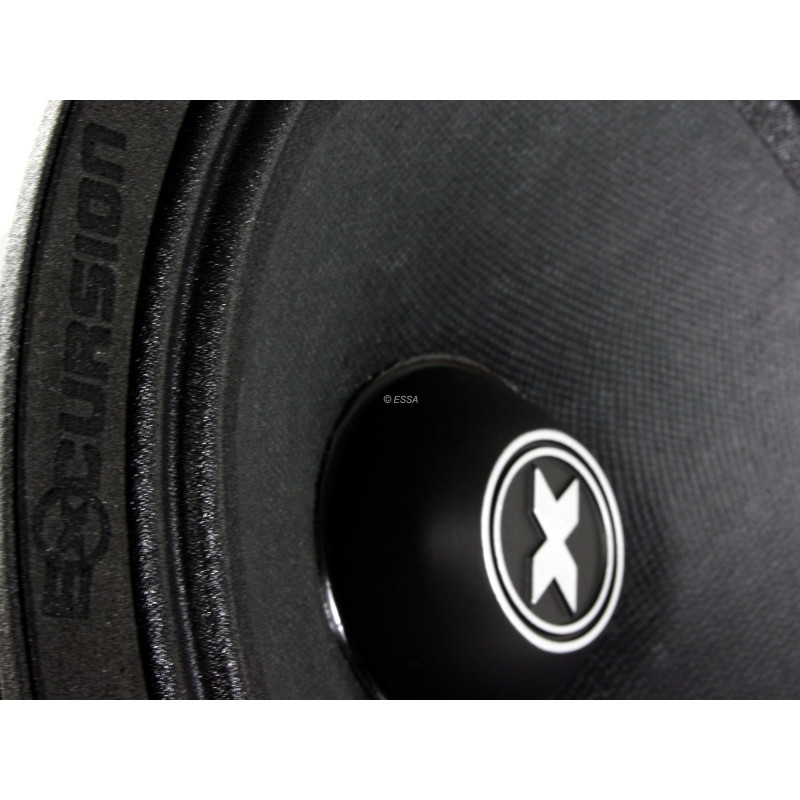

Mid-woofers (woofers) XXX-M8:

• 2-layer lightweight and stiff ADC pressed paper cone diaphragm
• diameter: 200 mm (8 inches)
• RMS/Max power: 200/600 W
• impedance: 4 Ohm
• efficiency: 98 dB (1W/1m)
• frequency response: 80 - 12,000 Hz
• mounting depth: 90 mm
• mounting hole diameter: 180 mm
• total outer diameter: 210 mm
• High Flux Ferrite (100 oz) efficient magnetic system
• 2-inch (51 mm) high-temperature CCAW coil, top-vented former
• phase corrector style dust cap - improves detail and linearity of mid-range sound
• 2 folds of upper suspension made of double-pressed, UV-resistant foam with high damping properties and high mechanical strength
• rigid pressed steel basket with large holes ensuring free flow of air "pumped" through the rear part of the membrane, additional holes under the lower suspension for more effective coil ventilation

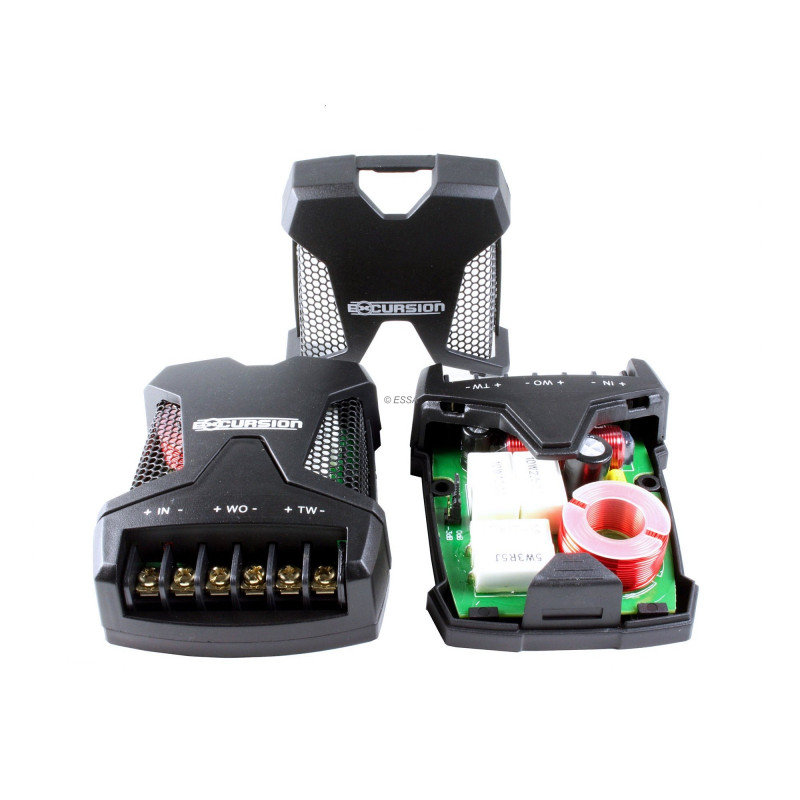

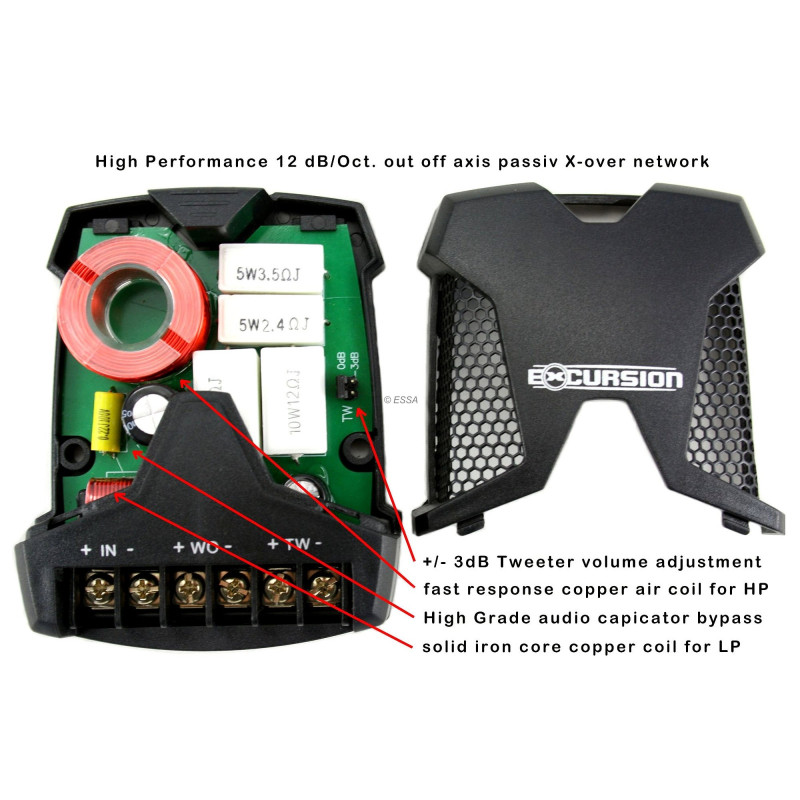

Passive crossovers XXX-2X:

• 2-way passive crossovers
• LP low pass filter: 12 dB/oct.
• HP high-pass filter: 12 dB/oct.
• RMS/Max power: 200/600 W
• high-quality MKP capacitors in the tweeter path
• solid copper wire coils (air coils in the tweeter path and core coils in the woofer path)
• wire connector with screw connectors
• tweeter signal level adjustment: 0 / -3 dB (adjustable jumper)
