Excursion xxx-8c - speaker set spl 98 / 200mm

Excursion XXX-8C - 2-drożny PRO speaker set AUDIO 200 mm Excursion XXX-8C is a car 2-drożny set of separate speakers from the series XXXTreme PRO AUDIO The set was designed for people who expect very high efficiency, enormous dynamics, and extremely loud sound in their car. The set includes two mid-woofers. Excursion XXX-M8 200 mm diameter, 2 tweeters Excursion XXX-T1 with an outer diameter of 98 mm and 2 passive crossovers Excursion XXX-2X The set offers effectiveness of up to 100 dB, 200 W RMS power and 600 W peak power.XXXTreme PRO AUDIO - a set for loud playing.The XXXTreme PRO AUDIO series was designed with very loud car installations in mind. audio Excursion XXX-8C will work well in demo cars, SPL projects, and systems that need to play loud, far, and with great energy. This set is for users who are not looking for a delicate addition to the factory audio. The XXX-8C model was created for powerful systems in which the mid-high frequency section must keep up with large subwoofers and high sound pressure levels. Key advantages of Excursion XXX-8C

• 2-drożny PRO car speaker set AUDIO,
• XXXTreme PRO series AUDIO,
• 2 mid-woofers XXX-M8 with a diameter of 200 mm,

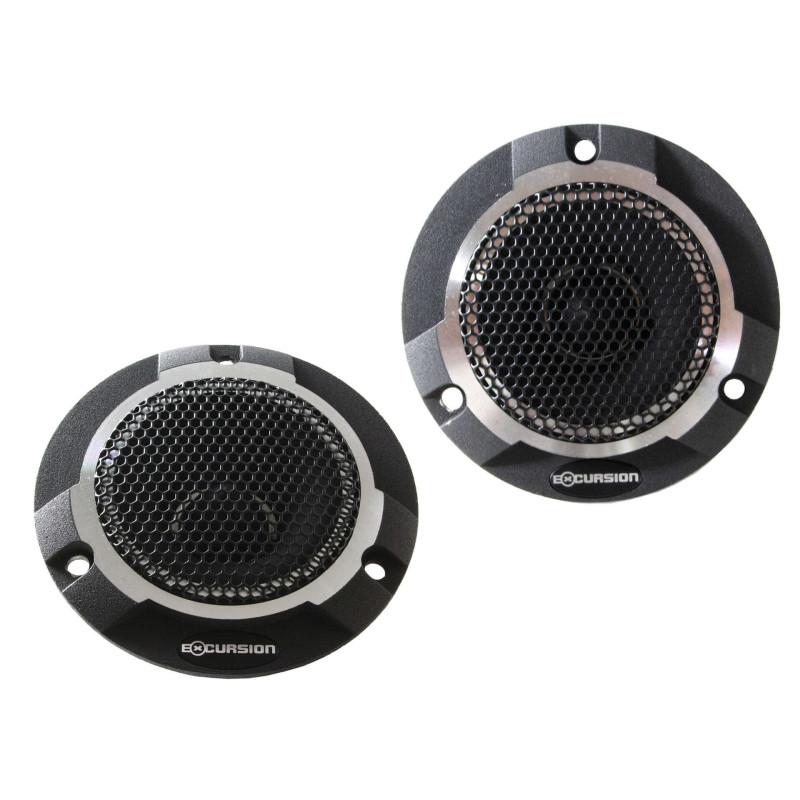

• 2 tweeters XXX-T1 with an outer diameter of 98 mm,

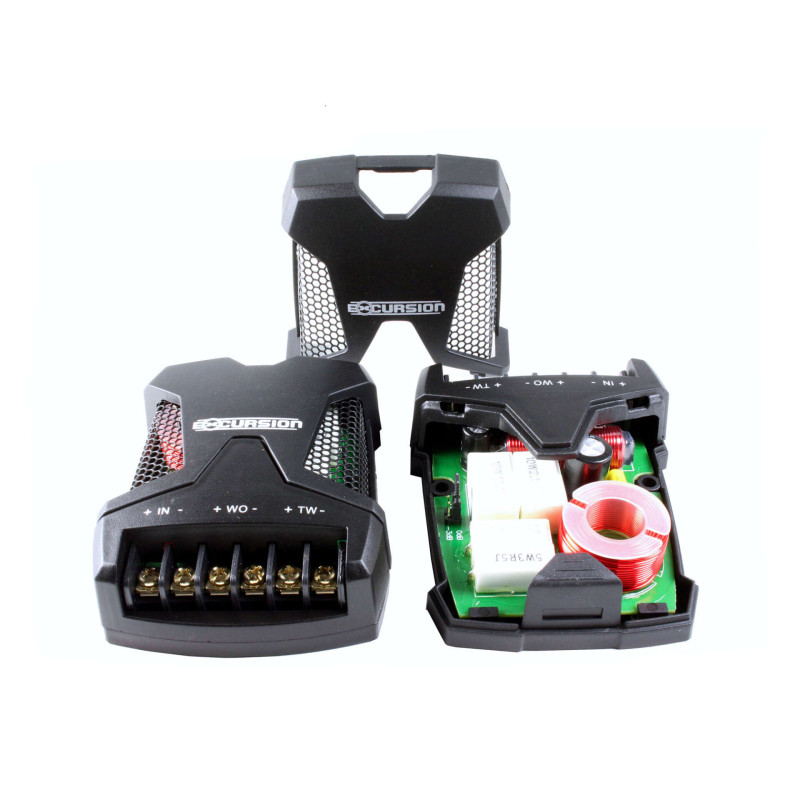

• 2 passive crossovers XXX-2X,
• very high efficiency of the set 100 dB,
• RMS power 200 W,
• maximum power 600 W,
• impedance 4 Ohm,
• frequency response 80-20,000 Hz,

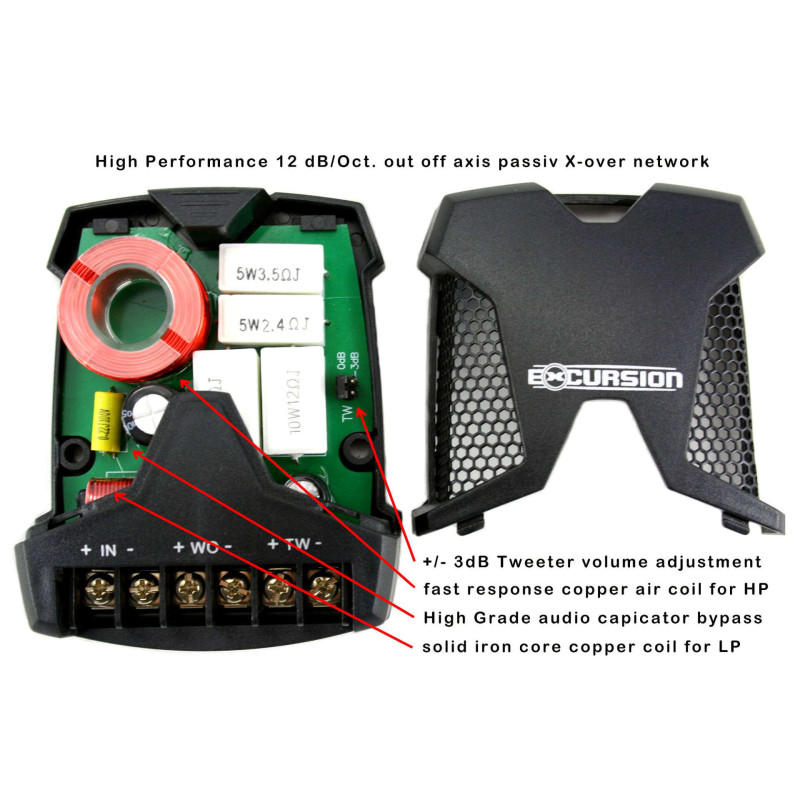

• 12 dB/oct crossovers for the LP and HP sections,
• tweeter level adjustment 0 / -3 dB,
• OFC 2 x 2.0 mm² cables included,
• used in SPL cars, demo cars and powerful car projects audio.

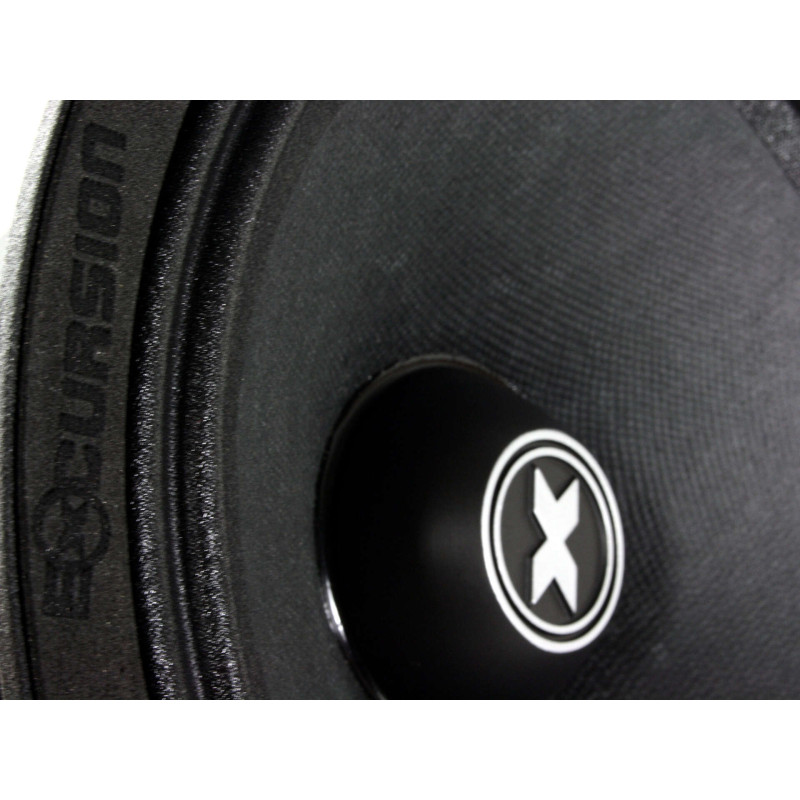

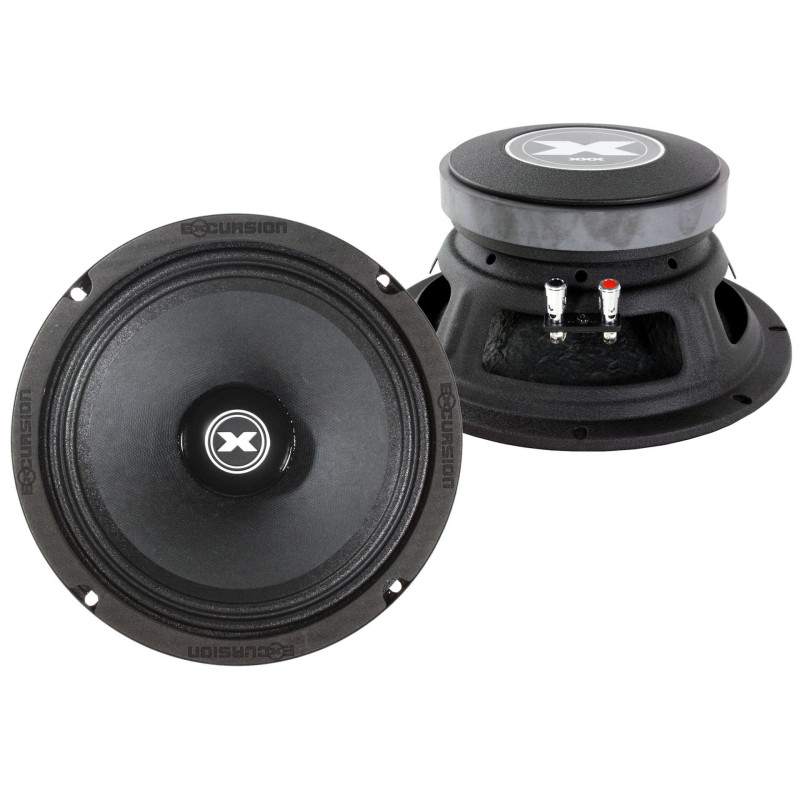

Mid-woofers XXX-M8 - 200 mm and high efficiencyMid-bass speakers Excursion XXX-M8 have a diameter of 200 mm, or 8 inches. They use a light and stiff 2-warstwową ADC pressed paper cone membrane. This design helps achieve a fast, dynamic and loud sound in the mid-low range. The mid-woofers offer efficiency 98 dB and a frequency response of 80-12,000 Hz. This makes them well suited for systems that value not only bass, but also a strong midrange and high sound clarity at high volume levels. A phase-corrector-style dust cap improves midrange detail and linearity. This is especially important in cars, where speakers often operate at an unfavorable angle to the listener. Powerful magnetic system and a 2-inch voice coil. The XXX-M8 mid-woofers utilize a powerful magnetic system. High Flux Ferrite 100 oz The diaphragm is driven by a high-temperature CCAW voice coil with a diameter of 2 inches (51 mm). The voice coil former features top vents. Additionally, the pressed steel basket has large vents behind the diaphragm and additional vents under the lower surround. This design improves airflow and supports effective voice coil cooling during very loud operation. The upper surround is made of double-pressed, UV-resistant foam. Two folds of the surround increase mechanical strength and allow for stable operation under heavy loads. XXX-T1 Tweeters - Powerful Highs Tweeters are responsible for the high frequencies. Excursion XXX-T1 Each tweeter has an aluminum diaphragm with a mesh grille and an aluminum housing made using CNC technology. The tweeters offer an efficiency of up to 105 dB This allows them to operate in very loud car systems, where traditional tweeters might not provide sufficient treble. An efficient magnetic system is responsible for the drive. High Flux Ferrite Y35 10 oz 1-inch high-temperature CCAW voice coil supports stable operation at high power. XXX-2X crossovers - 12 dB/oct filters. 2 passive crossovers included. Excursion XXX-2X The crossovers are 2-drożne and use LP and HP filters with a slope of 12 dB/octave. The tweeter path uses high-quality MKP capacitors. The crossovers also have solid coils made of copper wire. The tweeter path uses air coils, while the mid-woofer path uses core coils. The cable connections use screw connectors. The crossovers also allow for tweeter level adjustment within the range 0 / -3 dB using a variable jumper. Technical data of the set

• Producer: Excursion
• Model: XXX-8C
• Series: XXXTreme PRO AUDIO
• Type: car speaker set separated
• Design: 2-drożna
• Speaker diameter: 98 / 200 mm
• RMS power: 200 W
• Maximum power
