Excursion xxx-6c - speaker set spl 98 / 165mm

Excursion XXX-6C - 2-drożny PRO speaker set AUDIO 165 mm Excursion XXX-6C is a car 2-drożny set of separate speakers from the series XXXTreme PRO AUDIO The set was designed for users who expect very high efficiency, great dynamics, and extremely loud sound in their cars. The set includes two mid-woofers. Excursion XXX-M6 165 mm diameter, 2 tweeters Excursion XXX-T1 with an outer diameter of 98 mm and 2 passive crossovers Excursion XXX-2X The kit offers 150 W RMS power, 500 W maximum power, 4 Ohm impedance, and 95 dB sensitivity. XXXTreme PRO AUDIO - a kit for very loud installations. The XXXTreme PRO AUDIO series was designed for powerful audio car systems. The Excursion XXX-6C will work well in SPL cars, demo cars, and showroom installations where the mid-high frequency section must play very loud and dynamically. This is not an ordinary kit for subtle upgrades to the factory audio. The XXX-6C model was designed for projects that require high sound levels, high efficiency, and a strong sound character. Key advantages of the Excursion XXX-6C

• 2-drożny PRO car speaker set AUDIO,
• XXXTreme PRO series AUDIO,
• 2 mid-woofers XXX-M6 with a diameter of 165 mm,

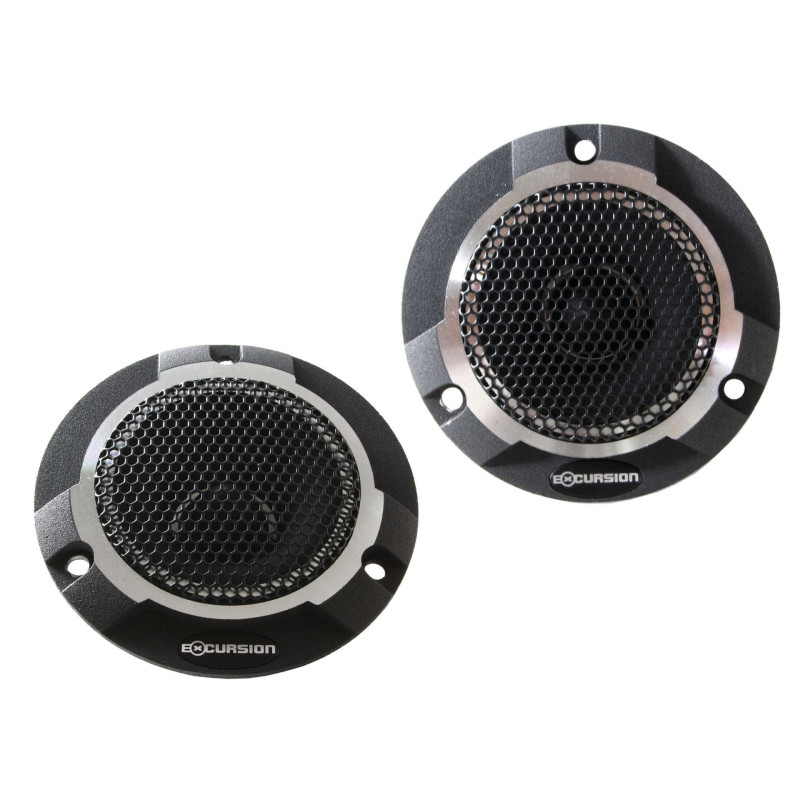

• 2 tweeters XXX-T1 with an outer diameter of 98 mm,

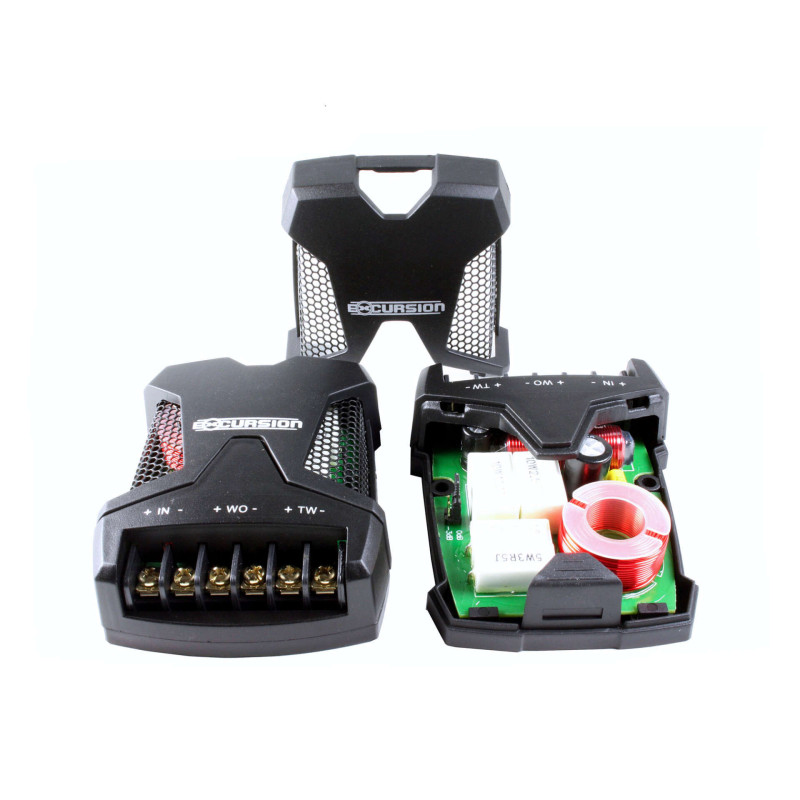

• 2 passive crossovers XXX-2X,
• high efficiency of the set 95 dB,
• RMS power 150 W,
• maximum power 500 W,
• impedance 4 Ohm,
• frequency response 100-20,000 Hz,

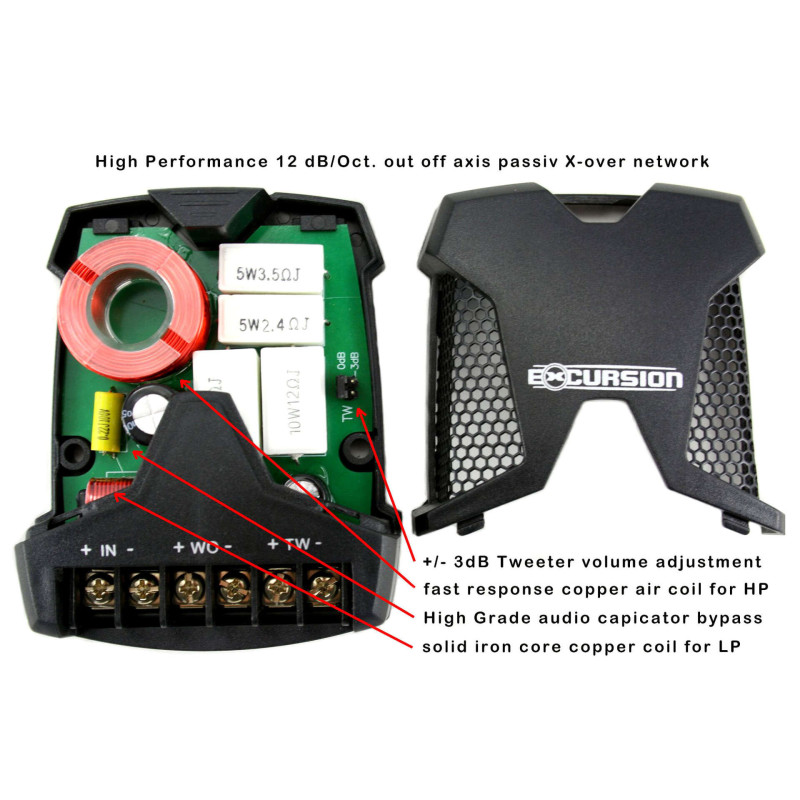

• 12 dB/oct crossovers for the LP and HP sections,
• tweeter level adjustment 0 / -3 dB,
• OFC 2 x 2.0 mm² cables included,
• use in SPL systems, democars and powerful car installations audio.

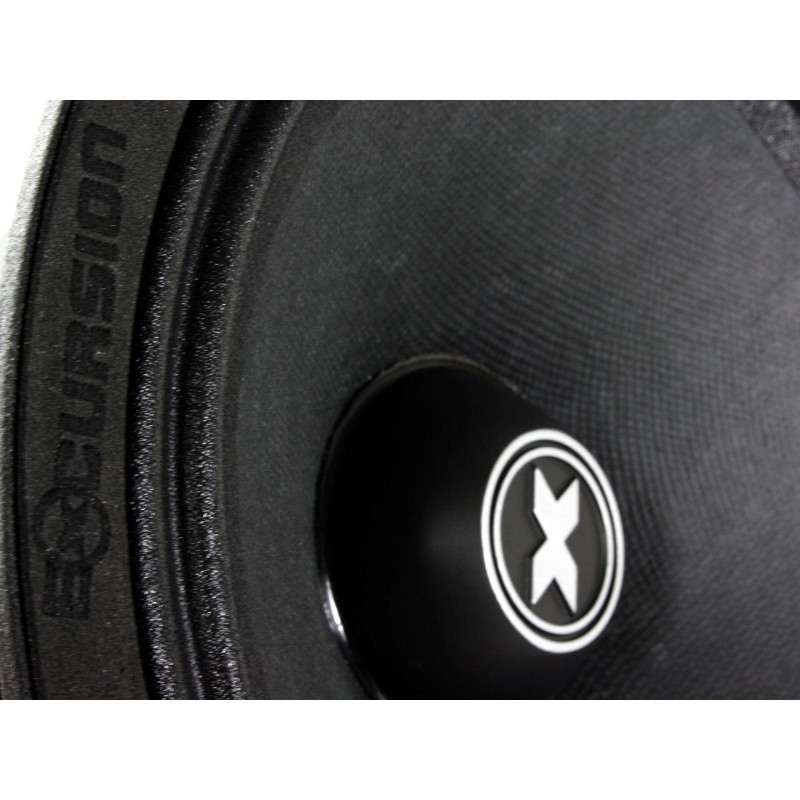

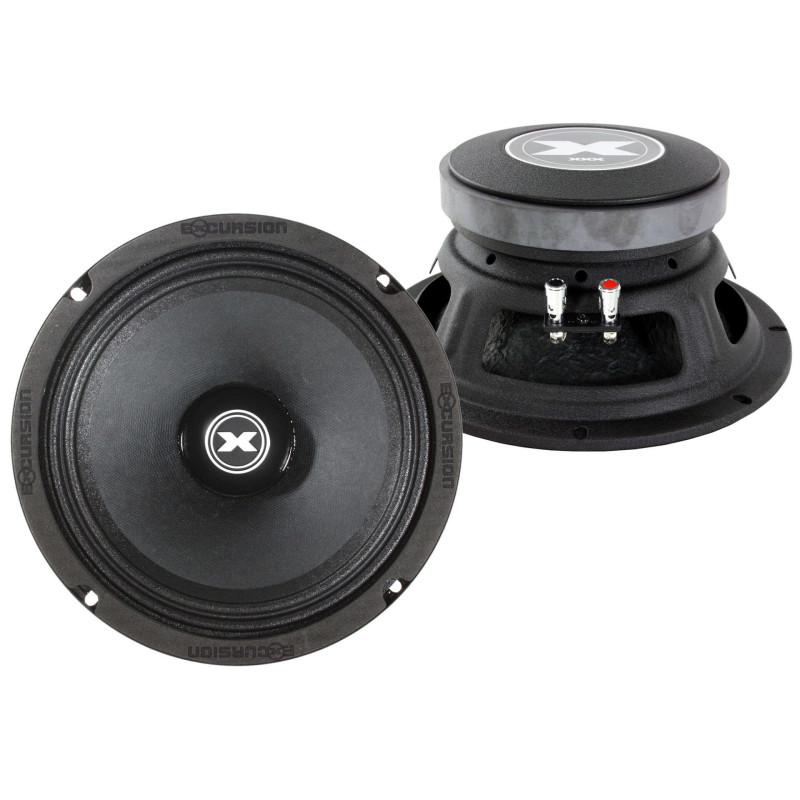

Mid-woofers XXX-M6 - 165 mm and powerful diameterMid-bass speakers Excursion XXX-M6 They have a diameter of 165 mm, or 6.5 inches. They use a lightweight and stiff 2-warstwową ADC pressed paper cone. This design allows for fast, dynamic, and loud sound in the mid-low range. The mid-woofers offer an efficiency of 94 dB and a frequency response of 100-10,000 Hz. This makes them well-suited for powerful systems where the speakers must keep up with a large bass section and high volume levels. A phase-corrector-style dust cap improves midrange detail and linearity. This is important in a car, as the speakers often operate off-axis. High Flux Ferrite magnet system and a 1.5-inch voice coil. The XXX-M6 mid-woofers use an efficient magnet system. High Flux Ferrite 50 oz The diaphragm is driven by a high-temperature CCAW voice coil with a diameter of 1.5 inches (38 mm). The voice coil body features upper ventilation holes. Additionally, the steel basket has large holes behind the diaphragm and additional holes under the lower suspension. This design improves airflow and helps cool the voice coil during very loud operation. The upper suspension is made of double-pressed, UV-resistant foam. Two folds of the suspension increase mechanical strength and support stable operation under heavy loads. XXX-T1 tweeters - very high efficiency. The tweeters are responsible for the high frequencies. Excursion XXX-T1 Each tweeter has an aluminum diaphragm with a mesh grille and an aluminum housing made using CNC technology. The tweeters offer an efficiency of up to 105 dB. This allows them to work in very loud car systems audio, where traditional tweeters often fail to deliver sufficient sound. An efficient magnetic system is responsible for the drive. High Flux Ferrite Y35 10 oz 1-inch high-temperature CCAW voice coil supports stable operation under heavy loads. XXX-2X crossovers - 12 dB/oct filters. 2 passive crossovers included. Excursion XXX-2X The crossovers are 2-drożne and use a low-pass filter (LP) and a high-pass filter (HP) with a slope of 12 dB/octave. High-quality MKP capacitors are used in the tweeter path. The crossovers also have solid coils made of copper wire. The tweeter path uses air-core coils, while the mid-woofer path uses core coils. The cable connections use screw connectors. The crossovers also allow for tweeter level adjustment within the range 0 / -3 dB using a reversible jumper. Technical data of the set

• Producer: Excursion
• Model: XXX-6C
• Series: XXXTreme PRO AUDIO
• Type: car speaker set separated
• Design: 2-drożna
• Speaker diameter: 98 mm tweeter / 165 mm mid-woofer
• RMS power: 150 W
• Maximum power: 500 W
• Impedance: 4 Ohm
