Excursion SHX-8C - 2-drożny speaker set

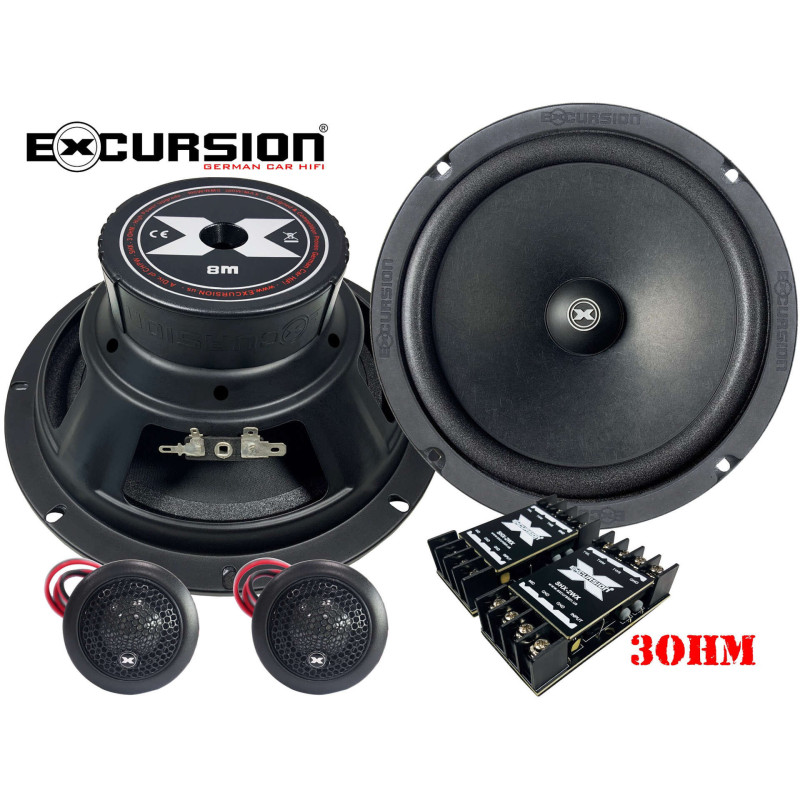

Excursion SHX-8C - 200 mm separated speaker set Excursion SHX-8C is a car 2-drożny set of separate speakers from the series SHX Street High Power eXcursion The set was designed for users who expect stronger bass, higher efficiency, and a more dynamic sound than standard speaker systems. The set includes two tweeters. Excursion SX-1S with 25 mm silk domes, 2 mid-woofers Excursion SHX-8M with a diameter of 200 mm and 2 passive crossovers SHX-2WX The system offers 100 W RMS power, 3 Ohm impedance, 92 dB sensitivity, and a frequency response of 40-21,000 Hz. SHX Series - More Powerful Sound and Better Control. The Excursion speakers from the SHX series are a more advanced lineup compared to the SX series. SHX systems offer higher efficiency, a more mature sound, and better diaphragm control. Therefore, they are suitable for both universal audio car systems and as a more powerful replacement for factory OEM speakers. The SHX-8C model uses large 200 mm mid-woofers. Thanks to the larger diaphragm surface area, the system can build a stronger bass foundation while maintaining good midrange clarity. Key advantages of the Excursion SHX-8C

• 2-drożny car speaker set separated,
• SHX Street High Power series eXcursion,

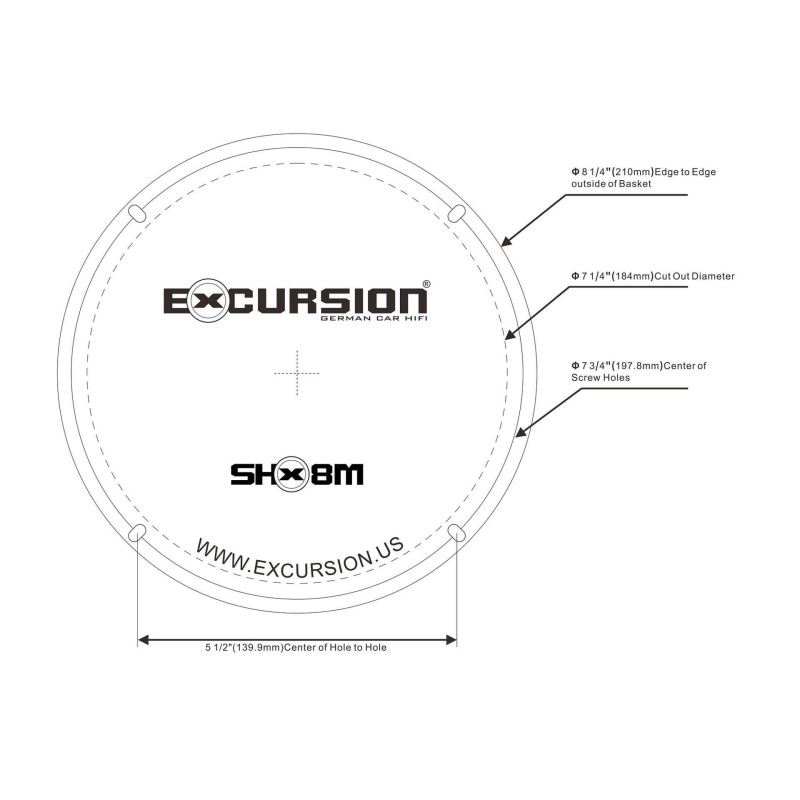

• SHX-8M mid-woofers with a diameter of 200 mm / 8 inches,

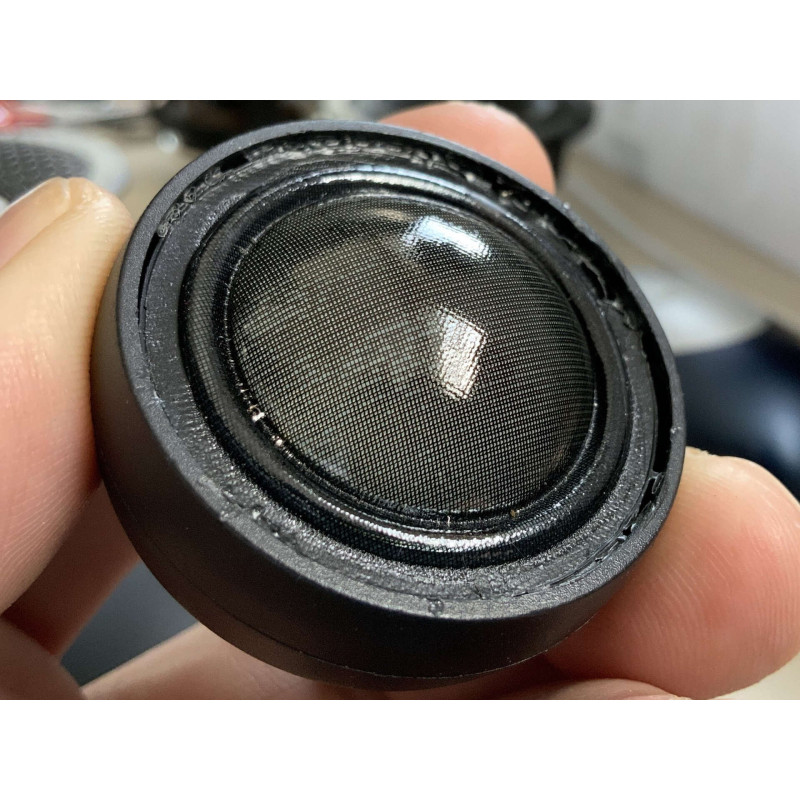

• SX-1S tweeters with 25 mm silk dome,
• 2 passive crossovers SHX-2WX,
• RMS power 100 W,
• maximum power 300 W,
• impedance 3 Ohm,
• efficiency 92 dB,
• frequency response 40-21,000 Hz,
• ADC membranes made of a composite of paper, natural wool and glass fiber,
• stronger EFF magnetic system,
• extended coil gap,

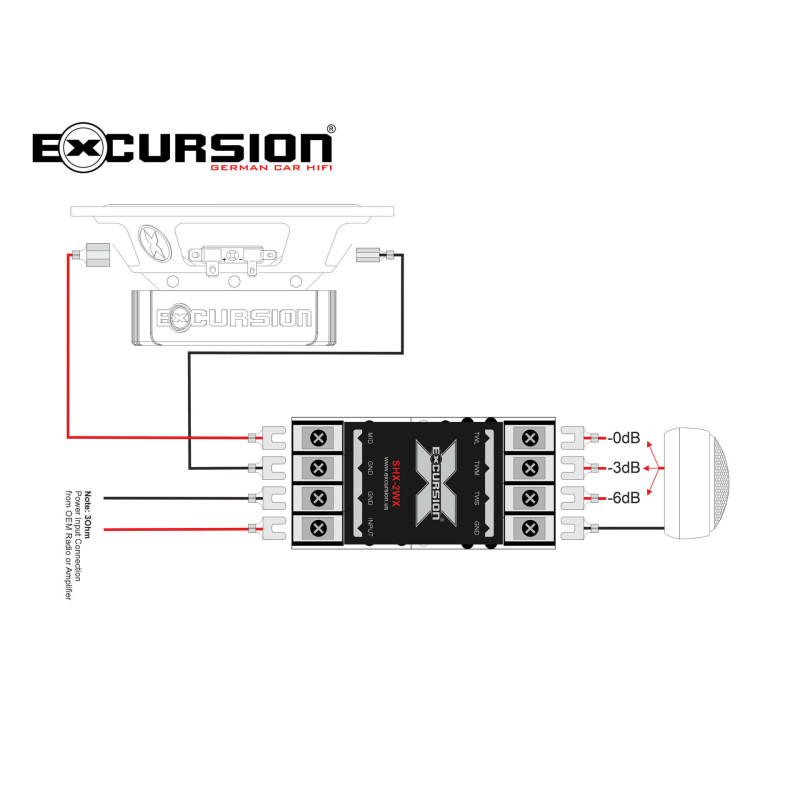

• 3-stopniowa tweeter level adjustment in the crossover,
• Polish importer warranty 24 months.

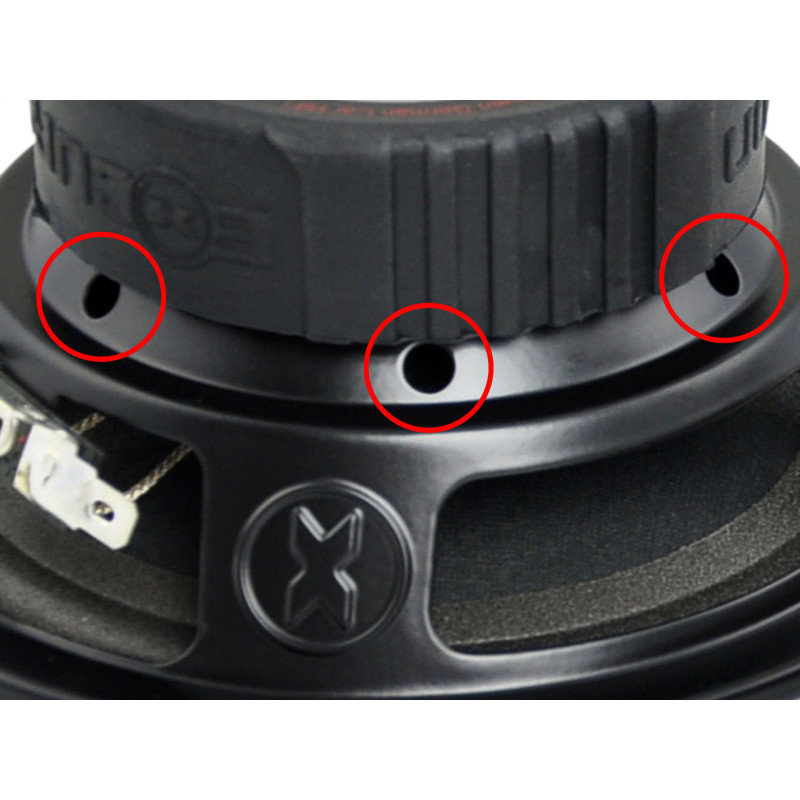

Mid-woofers SHX-8M 200 mm - large surface area and dynamic bass Mid-woofers Excursion SHX-8M They have a diameter of 200 mm. This size allows for a much stronger bass foundation than in typical 130 mm or 165 mm sets. The diaphragms are made of 2-warstwowego, a composite of paper, natural wool, and glass fiber. This construction is stiff, lightweight, and well-damped. This allows the woofers to deliver a natural midrange sound and fast, rich, and better-controlled bass. The diaphragm is approximately 10% lighter than a classic paper diaphragm. In practice, this improves the speaker's response speed, midrange detail, and low-frequency dynamics. LXPD - better midrange resolution. The SHX-8M mid-woofers have a dust cap. LXPD It's designed to improve midrange resolution across a wider range of listening angles. This is important in a car, as door or side speakers are often mounted low and don't play directly at the listener. LXPD helps achieve a clearer midrange, better separation, and a more even sound. EFF magnet system and effective cooling. The woofers utilize a 25% stronger magnet system. EFF, or Efficient Flux Field A central hole in the magnet lowers the resonant frequency and aids voice coil cooling. The extended voice coil gap allows for greater linear excursion of the diaphragm. This allows the speaker to operate more efficiently, especially in the bass range. The 3-ohm voice coil is made of thicker copper wire and precisely wound on an aluminum former. Additional cooling holes in the former and basket improve heat dissipation and increase the speaker's resistance to higher loads. SX-1S tweeters made of natural silk. Tweeters are responsible for high frequencies. Excursion SX-1S They feature 25mm domes made of pure natural silk. The diaphragms are coated with a thin anti-resonance coating. ADC, i.e. Active Damping Coating This ensures clear, accurate, and detailed highs. The silk dome tweeter provides a natural treble response, making the set suitable for both dynamic performance and everyday listening. The OFC copper wire voice coil is ferrofluid-cooled, and the efficient neodymium magnetic system supports stable tweeter operation. The set also includes enclosures and accessories for individual installation and sound propagation angle adjustment. SHX-2WX crossovers with tweeter level control. The set includes two 2-drożne passive crossovers. SHX-2WX These are first-order crossovers with 6 dB/oct HPF filters for tweeters and 6 dB/oct LPF filters for mid-woofers. High-quality audio MKP capacitors are used in the tweeter path. Copper wire coils with increased cross-section are used in the mid-woofer path. Wide traces made of thick copper foil reduce
