Excursion SHX-5C - 2-drożny speaker set

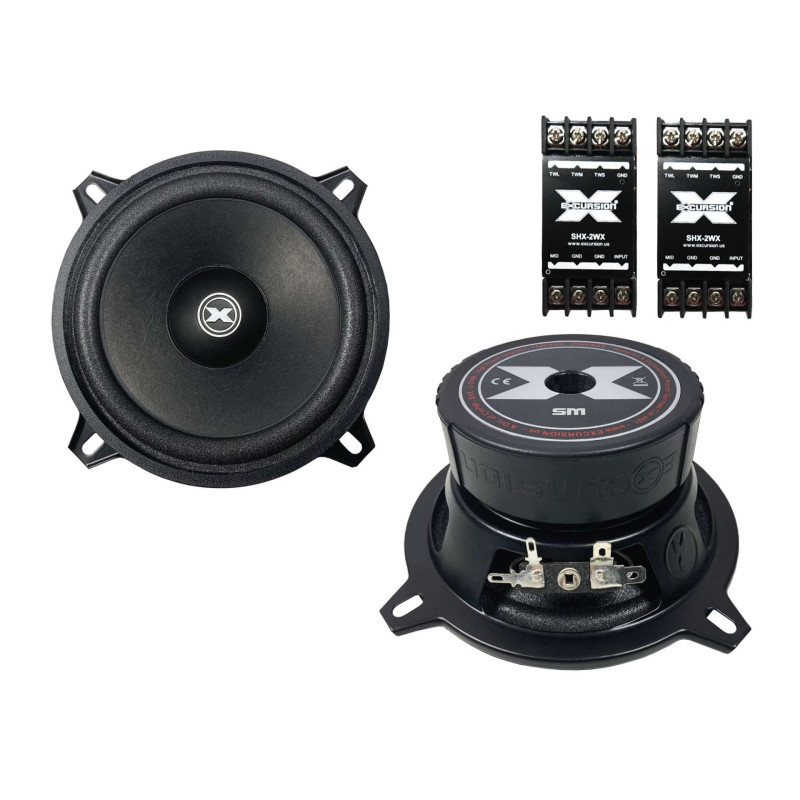

Excursion SHX-5C - 130 mm separated speaker set Excursion SHX-5C is a car 2-drożny set of separate speakers from the series SHX Street High Power eXcursion This model is designed for drivers who want to significantly improve their factory sound system and achieve a more dynamic, detailed, and mature sound. The set includes two 130mm mid-woofers, two 25mm tweeters, and two 2-drożne passive crossovers. Thanks to their 3-ohm impedance, the speakers can more effectively utilize the power of the head unit or amplifier, resulting in better control and greater sound dynamics. SHX Series - Higher Efficiency and Better Control The Excursion SHX speakers are a more advanced series in terms of sound compared to the basic SX line. The SHX sets offer a more powerful character, a more mature midrange, and better bass control. Therefore, they work well both as a replacement for the OEM speakers and as part of an expanded audio car system. The mid-woofers' reduced impedance to 3-ohm allows for better utilization of the available power reserve. In practice, the set can play more dynamically even with a good radio or factory amplifier. The most important advantages Excursion SHX-5C

• 2-drożny car speaker set separated,
• SHX Street High Power series eXcursion,
• 130 mm / 5.25 inch mid-woofers,
• 25 mm tweeters made of natural silk,
• impedance 3 Ohm,
• RMS power 75 W,
• maximum power 200 W,
• efficiency 91 dB,
• frequency response 55-21,000 Hz,
• ADC membranes made of a composite of paper, natural wool and glass fiber,
• stronger EFF magnetic system,
• extended coil gap,

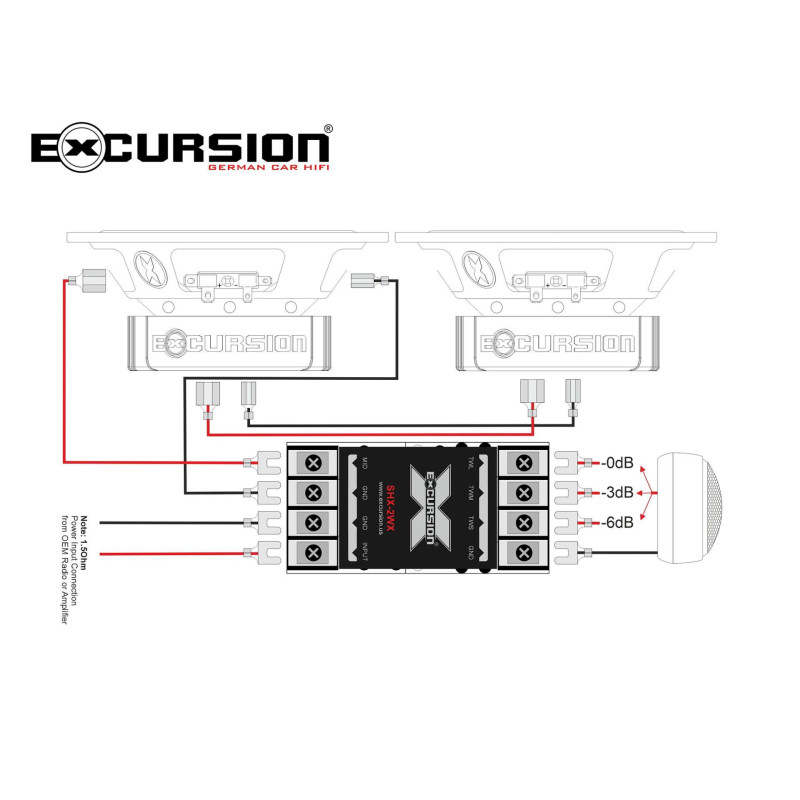

• 2 passive crossovers 2-drożne 6 dB/oct.,
• 3-stopniowa tweeter level adjustment,
• Polish importer warranty 24 months.

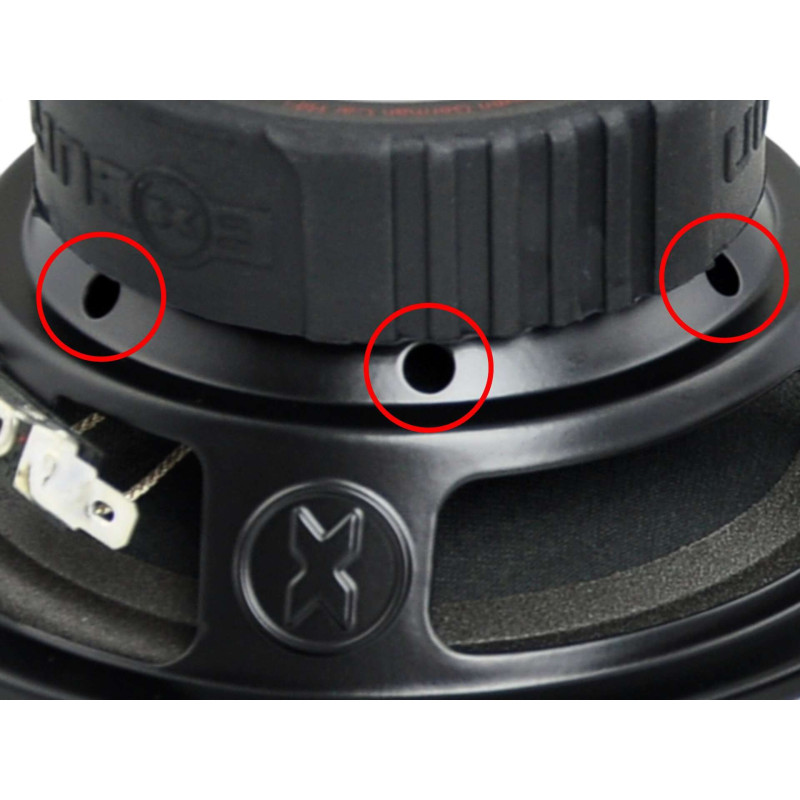

130mm Mid-Woofers - Natural Sound and Fast Bass. The 130mm mid-woofers utilize a stiff and lightweight ADC cone membrane. It's made from a 2-warstwowego composite of paper, natural wool, and glass fiber. This design is approximately 10% lighter than a traditional paper cone. This allows the speaker to respond faster to signals, better reproduce midrange frequencies, and provide a dynamic bass foundation after a break-in period. The cone retains the natural character of the sound while offering greater detail and better control. This is especially important when replacing the factory speakers with a more efficient audio car speaker system. LXPD - Improved Midrange Clarity. The SHX mid-woofers feature specially shaped dust caps. LXPD Phase plugs are designed to improve midrange resolution at wider listening angles. This is especially important in cars, as door speakers are often mounted low and off-axis. LXPD helps achieve clearer vocals, better separation, and a more even sound. Stronger Magnet System: EFF woofers utilize a 25% stronger magnet system. EFF, or Efficient Flux Field A central hole in the magnet lowers the resonant frequency and aids in voice coil cooling. The extended voice coil gap allows for greater linear excursion of the diaphragm. This results in higher efficiency, especially in the low frequency range. The 3-ohm voice coil is made of thicker copper wire and precisely wound on an aluminum former. The former has additional cooling holes for more efficient heat dissipation. 25mm Natural Silk Tweeters: 25mm dome tweeters handle the high frequencies. The diaphragms are made of natural silk and coated with a thin layer of anti-resonance material. This ensures a clean, faithful, and detailed treble. The silk dome gives the high frequencies a natural, pleasant character. This makes the set suitable for both everyday listening and louder playback. An efficient neodymium magnetic system with a voice coil cooling system supports stable tweeter operation. The set also includes enclosures and mounting accessories that allow you to adjust the mounting location and sound propagation angle. Passive crossovers with adjustable tweeters. The Excursion SHX-5C features two 2-drożne first-order passive crossovers. The HPF and LPF filters operate with a slope of 6 dB/octave. Crossovers are essential for the set's proper operation and protect the tweeters from excessively low frequencies. High-quality audio MKP capacitors are used in the tweeter path. The mid-woofer path features coils made of copper wire with an increased cross-section. Wide traces made of thick copper foil reduce signal loss and improve resistance to higher loads. The crossovers are compact, making them easy to install in a car. Additionally, built-in resistive attenuators allow the 3-stopniowe to adjust the tweeter volume. Technical specifications:
