Excursion SHX-5.3C dB - 3-drożny speaker set

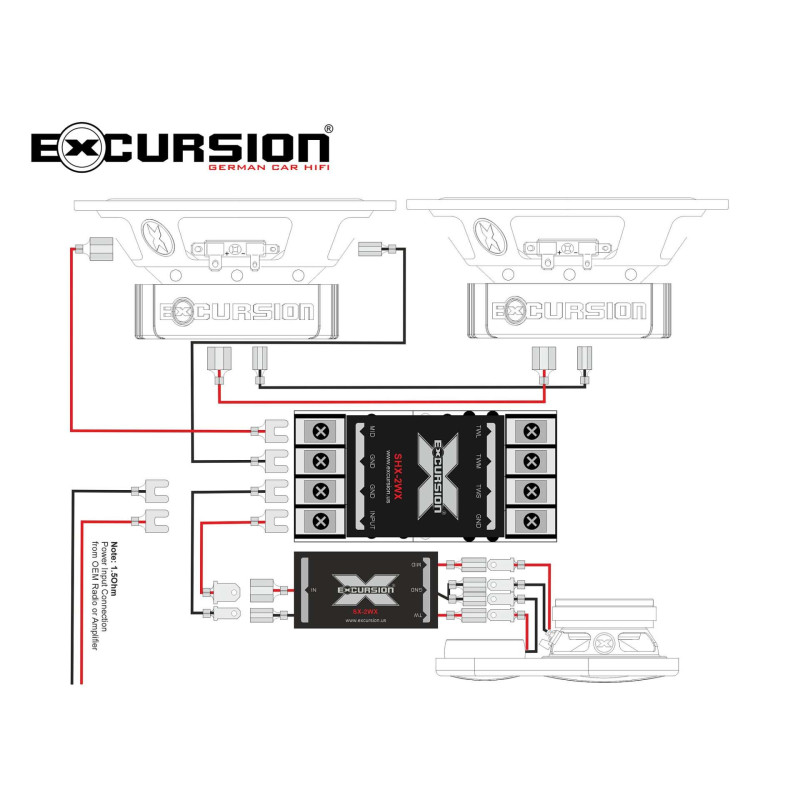

Excursion SHX-5.3C dB - 3-drożny speaker set with 4 woofers 130 mm Excursion SHX-5.3C dB is a car 3-drożny set of separate speakers from the series SHX Street High Power eXcursion This set was designed for users who expect powerful bass, high efficiency, and a more detailed sound than classic 2-drożnych.Wersja sets. dB, i.e. double bass, contains as much as 4 x SHX-5M woofers with a diameter of 130 mm, mid-high range set SX-SAT, 6 passive crossovers, and MDF mounting panels. This system combines the advantages of the 3-drożnego system with a double bass section. Double Bass - more powerful bass in a 130 mm size. Symbol dB stands for double bass configuration. In practice, the set uses four woofers, meaning two woofers per channel. When two woofers are connected in parallel in one channel, a total impedance of 1.5 ohms is achieved. This configuration allows for more efficient use of the amplifier and more energy in the low frequency range. The set offers powerful, fast, and well-controlled bass, while retaining the advantages of a separate mid-high frequency section. Key advantages Excursion SHX-5.3C dB

• car 3-drożny set of separate speakers,
• SHX Street High Power series eXcursion,
• dB double Bass version with four woofers,
• 4 SHX-5M woofers with a diameter of 130 mm,
• mid-high frequency set SX-SAT,
• 25 mm tweeters made of natural silk,
• 70 mm midrange speakers,
• 6 passive crossovers included,
• RMS power 150 W,
• maximum power 300 W,
• resultant impedance 1.5 Ohm when connected in parallel,
• efficiency 94 dB,
• frequency response 45-20,000 Hz,
• MDF panels for permanent installation SX-SAT,
• Polish importer warranty 24 months.

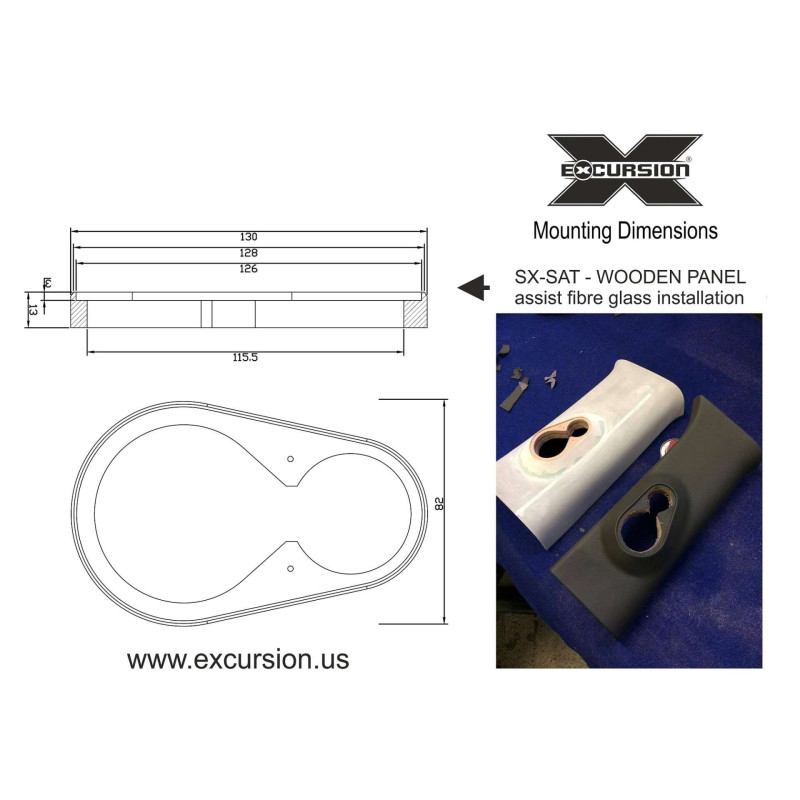

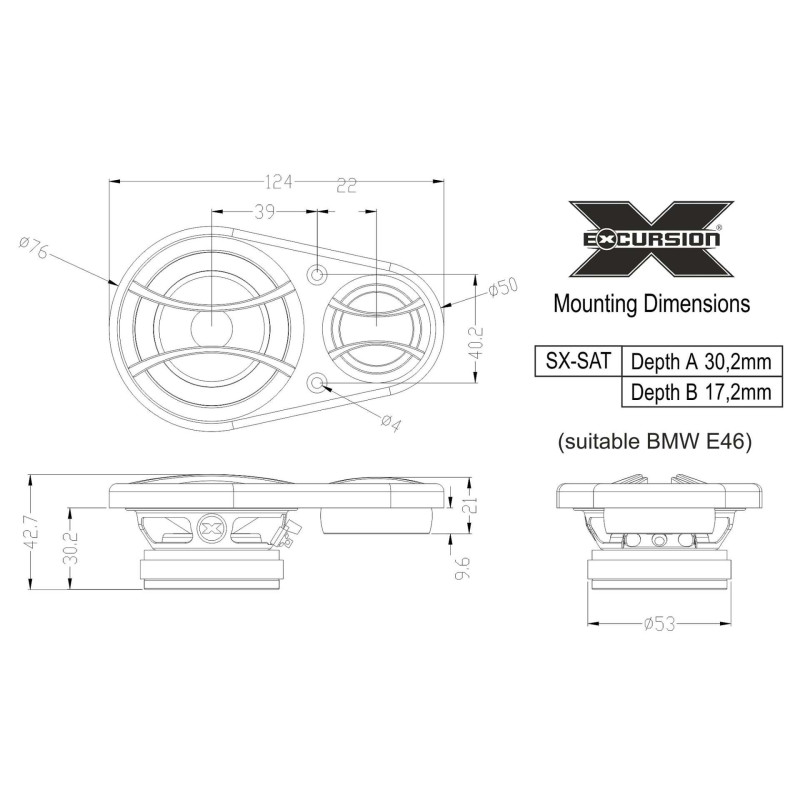

SHX Series - More Dynamics Than Basic Sets. The SHX Series was designed as a more advanced sounding line of Excursion loudspeakers. Compared to the SX Series, it offers a more mature, dynamic character and higher efficiency. The SHX woofers have an impedance of 3 Ohms. In the dB version, two woofers can be connected in parallel in one channel. This gives the set an impedance of 1.5 Ohms and can provide a very powerful bass impact. With this configuration, an amplifier adapted to work with low impedancją.3-drożna design for a better sound stage should be used. Excursion SHX-5.3C dB The frequency range is divided between woofers, midrange drivers, and tweeters. The woofers are responsible for the bass and lower midrange. The midrange drivers improve the clarity of vocals and instruments. The tweeters are responsible for the detailed treble. This arrangement allows for a more structured and spacious sound than in typical 2-drożnych sets. The SX-SAT set places the midrange driver and tweeter close together, therefore facilitating proper tuning of the midrange-highrange section. SX-SAT - midrange and high frequencies in one section. The integrated set is responsible for the midrange and high frequencies. SX-SAT It consists of two 70mm midrange drivers and two 25mm tweeters. The close proximity of the two drivers improves the coherence of the soundstage and helps provide a better listening experience. MDF mounting panels are included. These can be used to permanently mount the SX-SAT section, for example, in the A-pillars of a car. This allows for better directing of the midrange and high frequencies towards the listener. SX-SAT Tweeters Made of Natural Silk. The tweeters utilize 25mm domes made of pure natural silk. The diaphragms are coated with a thin layer of anti-resonance material. Activ Damping Coating This ensures clear, accurate, and detailed high frequencies. The OFC copper wire voice coil is ferrofluid-cooled, and the efficient neodymium magnet system supports stable tweeter operation. SX-SAT 70mm Midrange Drivers: The midrange drivers have a 70mm diameter. They utilize rigid and lightweight ADC cones made from two pressed layers of thin paper. This design promotes natural and detailed midrange and treble sound. The double-pressed foam upper surround ensures linear cone excursion across a wide frequency range. Additional UV protection improves the durability of the surround. The steel basket with large openings allows for free airflow, and the EFF magnet system supports efficient operation at low power. Four SHX-5M 130mm woofers: The set includes four woofers. SHX-5M with a diameter of 130 mm. Their membranes are made of 2-warstwowego composite of paper, natural wool, and glass fiber. The construction is light, stiff, and well damped. The membrane is about 10% lighter than a classic paper membrane. Thanks to this, the woofers
