Excursion PX-6C - 2-drożny SQ speaker set

Excursion PX-6C - set of 165 mm SQ class separated speakers Excursion PX-6C this is the 2-drożny car speaker set from the series PX Performance The set was designed for users who expect high-quality sound, a natural midrange, detailed highs, and dynamic bass. The set includes selected tweeters. Excursion PX-1S with 26 mm silk domes, mid-woofers Excursion PX-6M with a diameter of 165 mm, passive crossovers PX-HPF and PX-LPF and OFC speaker cables. This is a class proposition SQ, or Sound Quality, designed to expand the audio car system and as a high-quality replacement for the OEM factory speakers. PX Performance Series - a higher level of quality for Excursion. The PX Performance Series ranks higher in the Excursion lineup than the SX, SHX, and RX series. It uses more advanced materials, better magnetic systems, and refined crossovers. The PX-6C model was designed for clear and controlled sound. Thanks to its 2-ohm impedance, the set allows for more efficient use of the amplifier while offering a wide frequency response up to 30,000 Hz. Key advantages of the Excursion PX-6C

• 2-drożny car speaker set separated,
• PX Performance series,
• SQ class - Sound Quality,
• PX-6M mid-woofers with a diameter of 165 mm,
• PX-1S tweeters with 26 mm silk dome,
• tweeters without ferrofluid, with air cooling,
• 3-warstwowa sandwich membrane made of carbon fiber, PMI and fiberglass,

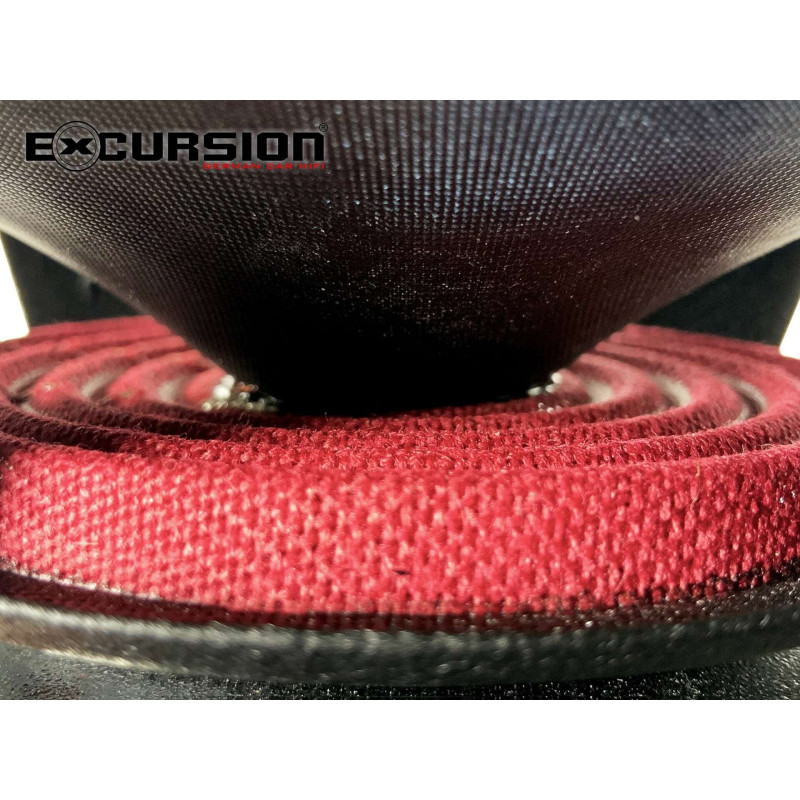

• Rubytec Surrounds HDR suspension,
• handmade lower suspension made of Nomex,
• PX-HPF and PX-LPF crossovers 6 dB/oct.,
• OFC 2 x 2.5 mm² cables included,
• RMS power 120 W,
• maximum power 300 W,
• impedance 2 Ohm,
• frequency response 40-30,000 Hz,
• Polish importer warranty 24 months.

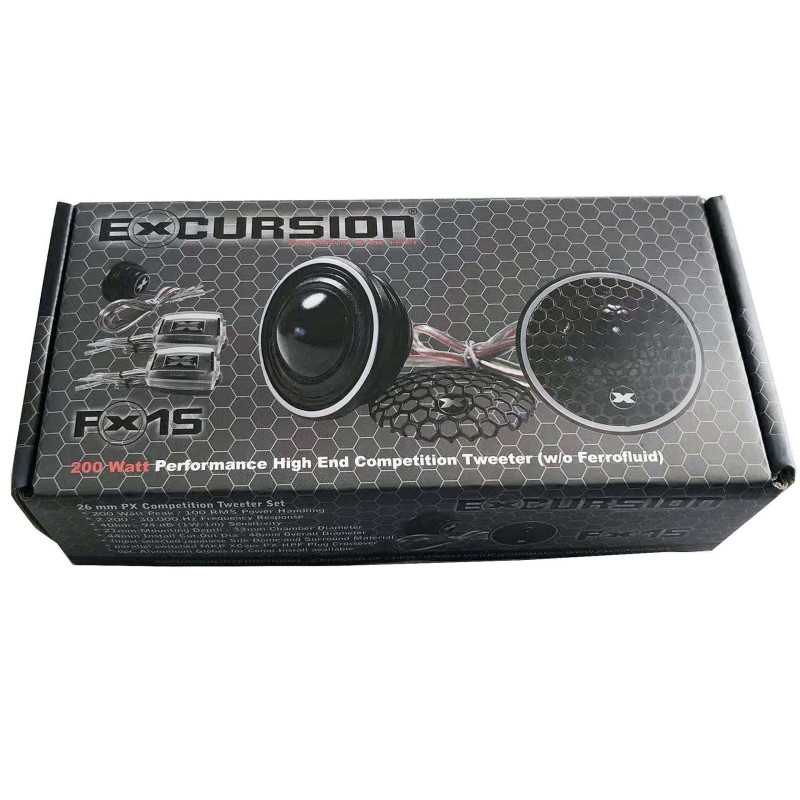

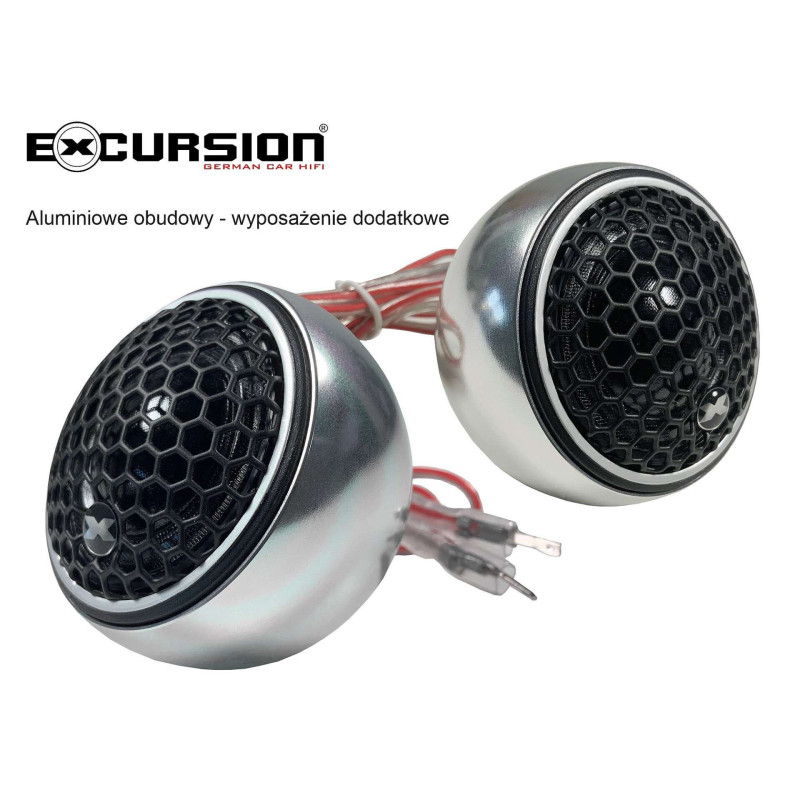

PX-1S - selected tweeters with a 26 mm silk dome. The tweeters are responsible for the high tones. Excursion PX-1S They feature 26mm domes made of pure natural silk. The diaphragms are coated with a thin anti-resonance coating. ADC, i.e. Active Damping Coating The PX-1S tweeters do not use ferrofluid. The OFC copper wire voice coil is air-cooled, allowing for a smooth, detailed, and natural high-frequency response. The rear air chamber lowers the resonance frequency and helps cool the voice coil and magnet system. This makes the tweeters well-suited for systems focused on quality. dźwięku.PX-6M - 165mm sandwich mid-woofers Excursion PX-6M They have a diameter of 165 mm. Their key element is the 3-warstwowa sandwich diaphragm made of a composite of carbon fiber, PMI foam, and glass fiber. This design combines high stiffness with low mass. This allows the mid-woofers to respond faster to the signal, better control the bass, and maintain high midrange detail. A phase plug-style dust cover improves midrange resolution at a wider listening angle. This is important in a car, as mid-woofers are often mounted low in the doors. HDR suspension and a Nomex lower leaf spring. The PX-6M mid-woofers use an upper suspension. HDR Rubytec Surrounds This ensures long, linear excursion of the diaphragm over a wide frequency range. In practice, this translates to more bass, better midrange resolution, and lower distortion. The lower suspension, or spider, is handcrafted from Nomex. This wide excursion range allows the speaker to operate stably even under heavy loads. Magnetic System and 2-Ohm Voice Coil: The PX-6M mid-woofers feature a high-performance magnetic system with a Y35 ferrite magnet and a central vent. The vent improves cooling and helps maintain stable voice coil operation. The voice coil has a diameter of 26 mm and an impedance of 2 ohms. It is made of thick copper wire and precisely wound on a Kapton former with additional cooling holes. The mid-woofer basket is made of steel and coated with a speckled anti-resonance compound. Additional holes under the lower suspension provide effective voice coil ventilation, which increases the speaker's resistance to higher power output. PX-HPF crossovers for tweeters The set includes two passive crossovers. PX-HPF for tweeters. These are first-order high-pass filters with a slope of 6 dB/octave. The crossovers are connected in series in the speaker cable line. Each crossover uses two parallel-connected audio MKP capacitors. If necessary, one of them can be disconnected to obtain a higher cutoff frequency of the HP filter. The crossovers have compact dimensions of 50 x 37 x 24 mm. The connectors allow for changing the polarity of the tweeters, and the design allows
