Excursion PX-6.3C - 3-drożny SQ speaker set

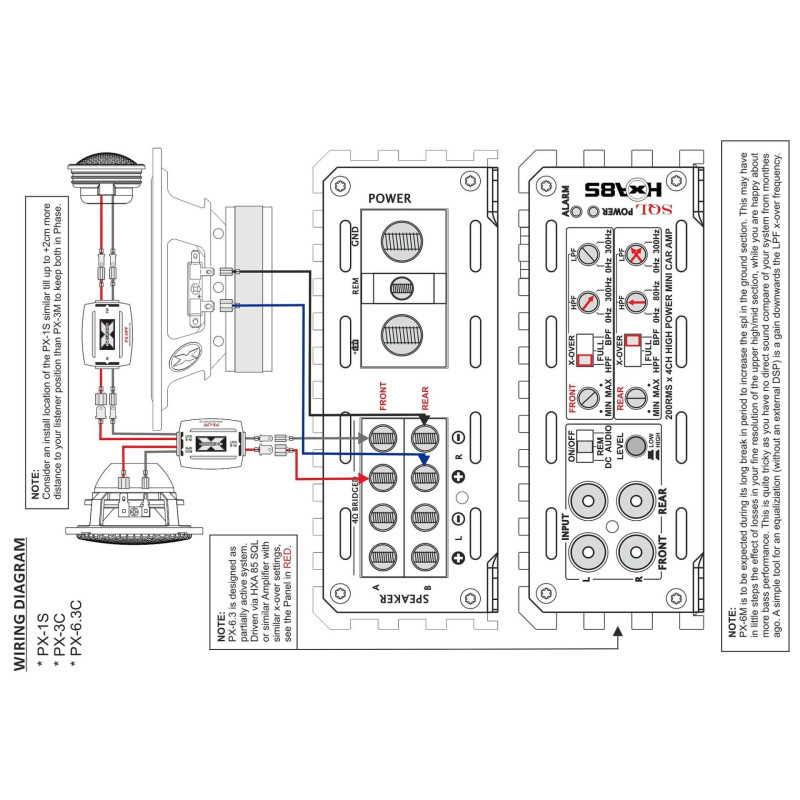

Excursion PX-6.3C - 3-drożny 165 mm SQ class separate loudspeaker set Excursion PX-6.3C this is the 3-drożny car speaker set from the series PX Performance The set has been prepared for demanding users who want to build a car system of class audio SQ, or Sound Quality, with very good detail, natural midrange and controlled bass. The set includes selected tweeters Excursion PX-1S with 26 mm silk domes, midrange speakers Excursion PX-3M 80 mm diameter, mid-woofers Excursion PX-6M with a diameter of 165 mm, passive crossovers PX-HPF and PX-LPF and OFC speaker cables. Note - the set requires appropriate filtration of the midrange section Excursion PX-6.3C does not include the HP passive filters and the LP filters for the PX-3M midrange speakers. For this reason, the set should be used in systems with active crossovers, for example, in a DSP or an amplifier with active filtering. It can also be used in mixed active-passive systems or in full passive systems after adding appropriate filters for the midrange section. This makes the set very flexible, but requires careful assembly and proper tuning. PX Performance Series - A Higher Level of Excursion Quality The PX Performance Series represents a higher level of quality and performance in the Excursion lineup. Compared to the SX, SHX, and RX series, it features more advanced materials, refined magnet systems, and components focused on precise sound. The PX-6.3C model was created for those seeking a spacious soundstage, accurate midrange, and wide frequency response. This is a kit for more ambitious car installations audio, especially with a DSP processor or an amplifier enabling active band cutting. The most important advantages of Excursion PX-6.3C

• 3-drożny car speaker set separated,
• PX Performance series SQ class,
• PX-6M mid-woofers with a diameter of 165 mm,
• PX-3M midrange speakers with a diameter of 80 mm,
• PX-1S tweeters with 26 mm silk dome,
• tweeters without ferrofluid, with air cooling,
• midrange with Wool / Glass fiber membrane,
• mid-woofers with 3-warstwową sandwich membrane,

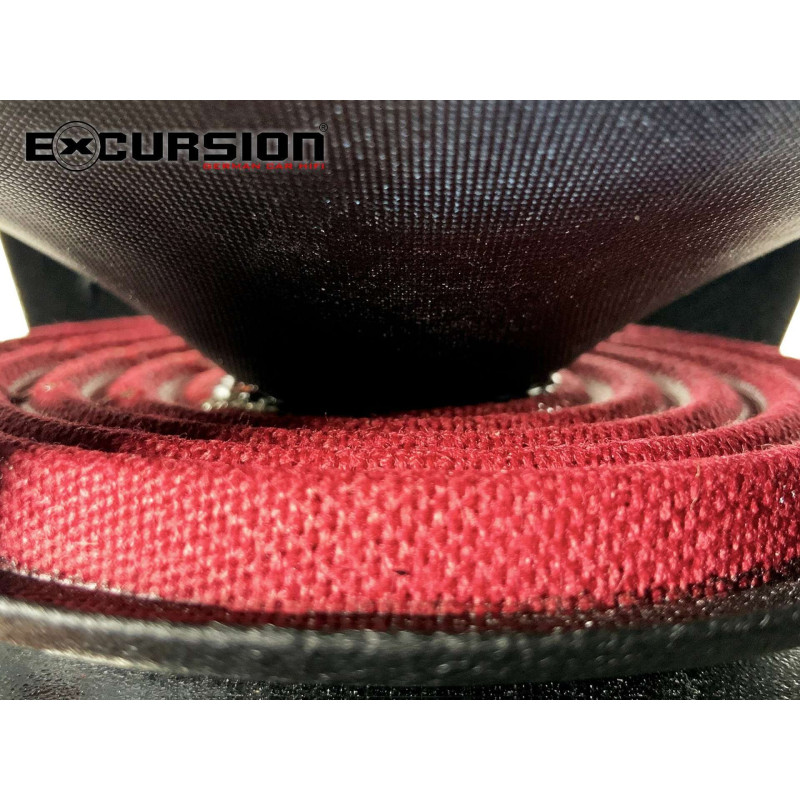

• Rubytec Surrounds HDR suspension,
• hand-made lower suspensions made of Nomex,
• PX-HPF and PX-LPF crossovers 6 dB/oct.,
• OFC 2 x 2.5 mm² cables included,
• RMS power 120 W,
• impedance 2 Ohm,
• frequency response 40-30,000 Hz,
• Polish importer warranty 24 months.

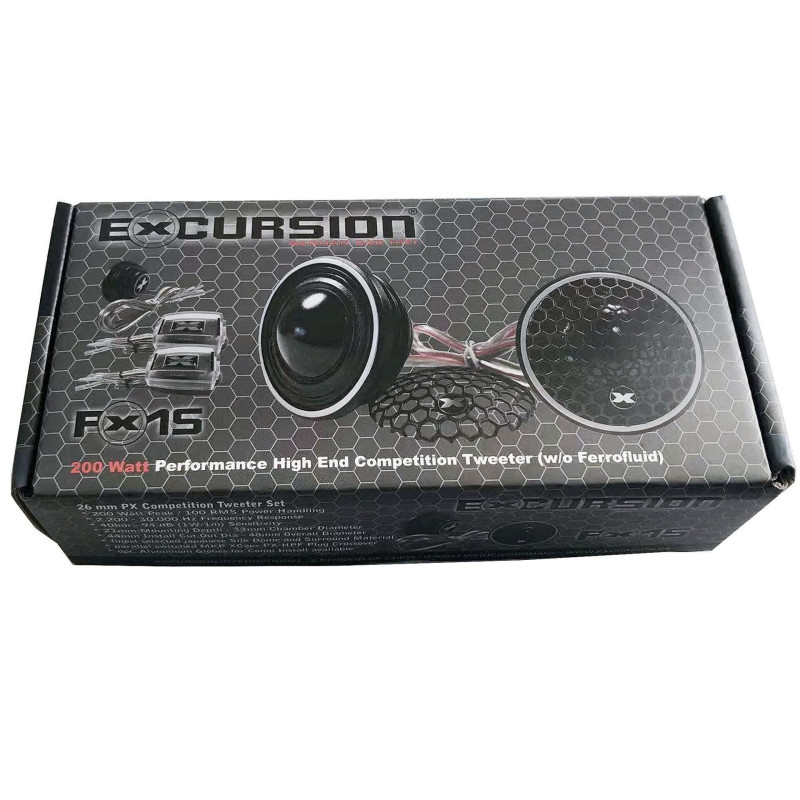

3-drożna design for a better sceneIncluded Excursion PX-6.3C The frequency range is divided between three types of drivers. The PX-6M mid-woofers are responsible for the bass and lower midrange. The PX-3M mid-range drivers reproduce the most important range of vocals and instruments. The PX-1S tweeters are responsible for the highest tones and details. This solution allows for a more ordered and spacious sound than in the classic 2-drożnym set. When properly tuned, the system can offer very good localization of sound sources, natural vocals and precise treble. pasma.PX-1S - selected tweeters with a 26 mm silk dome. The high tones are provided by the pasma.PX-1S speakers. Excursion PX-1S They feature 26mm domes made of pure natural silk. The diaphragms are coated with a thin anti-resonance coating. ADC, i.e. Active Damping Coating The PX-1S tweeters do not use ferrofluid. The OFC copper wire voice coil is air-cooled, which helps produce a smooth, natural, and detailed high-frequency response. A rear air chamber lowers the resonance frequency and aids in cooling the voice coil and magnet system. A highly efficient neodymium magnet system ensures stable tweeter operation in demanding systems. SQ.PX-3M - 80mm Midrange Drivers Excursion PX-3M They have an 80mm diaphragm and a total outer diameter of 92mm. They use a high-quality cone diaphragm made of a natural wool and glass fiber composite. This design is well suited for the midrange, producing natural vocals, high detail, and good response. The 3D phase plug-style dust cap improves midrange resolution at a wider angle. The odsłuchu.PX-3M features a handcrafted upper surround made of flexible, low-resistance fabric. The lower surround is made of Nomex. The highly rigid die-cast basket is coated with a speckled anti-resonance compound, which reduces unwanted resonances. The PX neodymium magnetic system. The N38Głośniki midrange drivers utilize a proprietary neodymium magnetic system. Excursion PX N38. The CCAW coil with a diameter of 25.5 mm was wound on a Kapton former with an additional
