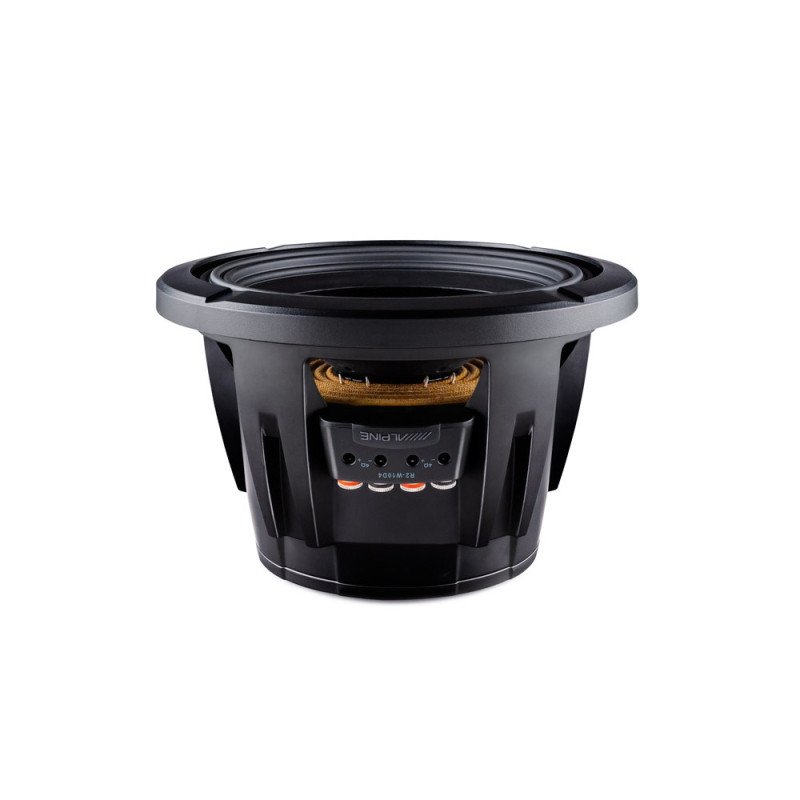

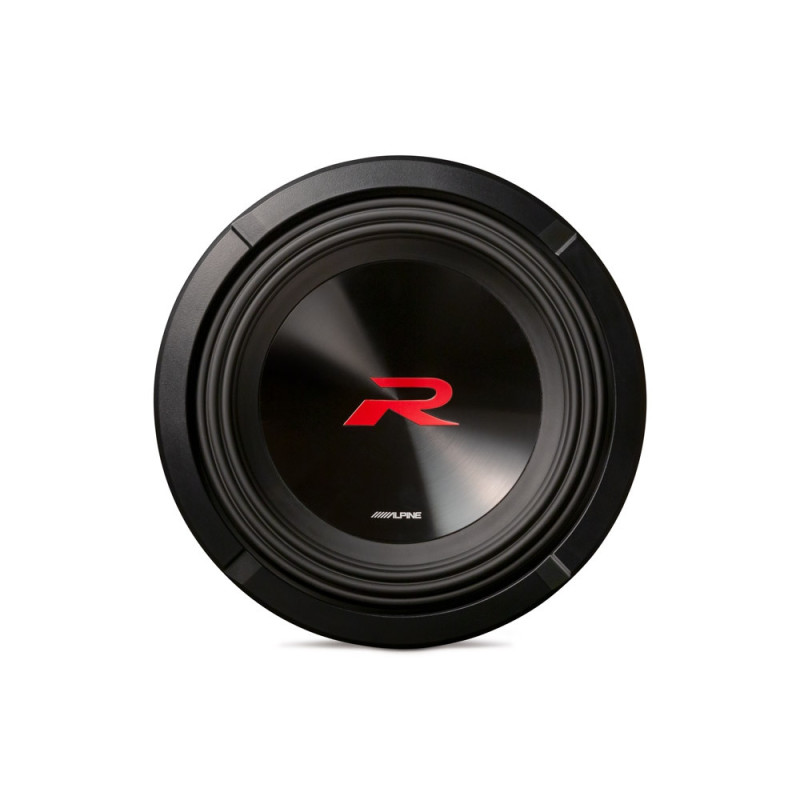

ALPINE R2-W10D4 subwoofer 750W RMS 4 + 4 Ohm 25 cm

High-quality ALPINE R2-W10D4 750W RMS 4 + 4 Ohm 25 cm subwoofer available in our offer!

When choosing speakers for our car, we strive to find the best option within a given price range. The ALPINE R2-W10D4 750W RMS 4 + 4 Ohm 25 cm subwoofer is from the renowned Alpine brand, which has been building its market position for years by creating top-quality equipment that enhances our journeys with its excellent sound.

ALPINE R2-W10D4 Next-generation 10-inch (25cm) R-Series subwoofer with dual 4-ohm voice coils

The new 2022 R-Series subwoofers are here—drawing on decades of subwoofer engineering experience. They deliver deep, clean, and accurate bass and feature Alpine HAMR Surround technology, which maximizes cone excursion for plenty of bass. The new ceramic dust cap is ultra-light and rigid, keeping distortion to an absolute minimum. A new, enlarged motor structure provides better overall woofer control for clean, powerful bass.

PRODUCT INFORMATION

New 2022 R Series Subwoofers
The next generation of sound quality is available with the second generation R Series subwoofers, featuring a larger motor structure for more accurate and authoritative bass.

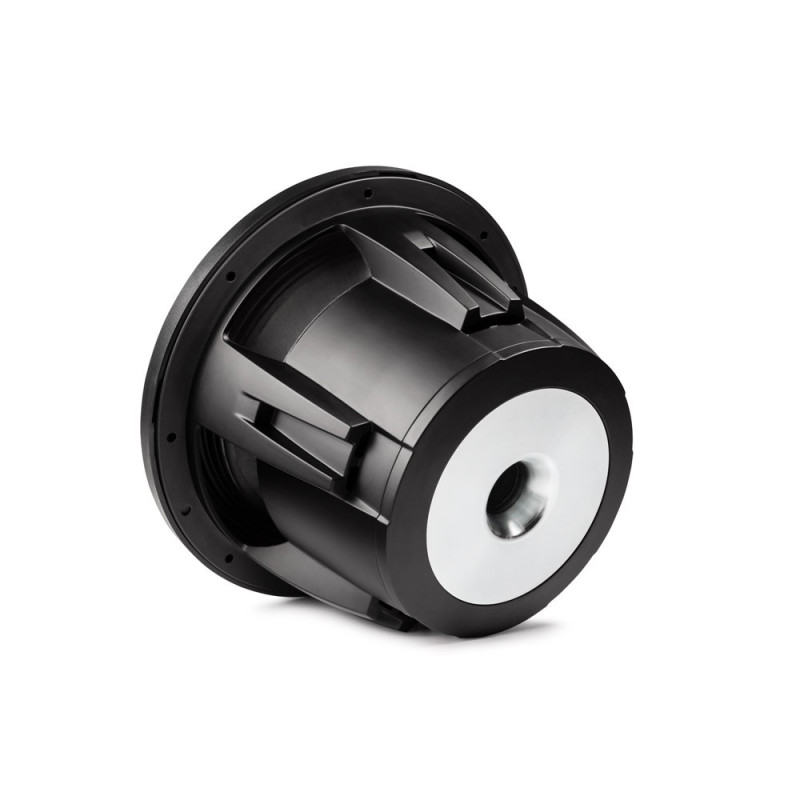

New engine structure
The second-generation R-Series subwoofers now feature larger, dual-stacked magnets, which, compared to the previous generation, provide greater motor force for deeper bass and tighter bass control from the subwoofer cone. An integrated Faraday ring minimizes distortion for cleaner bass. The Kevlar-coated cone ensures the subwoofer's durability and reliable performance, even at high volumes.

Next-generation audio performance
Since the Type R platform, Alpine's R-Series family of sound systems has been renowned for their incredible output and reliable performance. Now, Alpine is taking sound quality to the next level with the second-generation R-Series subwoofers, which deliver even more bass power.

Extra reliability
A new polypropylene-ceramic composite dust cover provides rigidity while providing incredible internal damping (vibration absorption) to smooth out bass and reproduce powerful bass. This high-quality, unique material also has improved thermal resistance, ensuring uninterrupted bass reproduction.

Flexible application
The second-generation R-Series subwoofers feature a dual voice coil (DVC) design with easy-to-configure jumpers for flexible applications. A new "EZ-Change" twist-lock grille mounting system simplifies installation and removal of the optional grille without mounting screws, providing additional protection for the cone.

Increased accuracy
These subwoofers feature Alpine's High Amplitude Multi-Roll (HAMR) surround technology. This rubber surround allows air to move efficiently through the subwoofer cone while maintaining a cool, cool feel. This technology allows for a total cone excursion and movement of 20 mm, providing incredible subwoofer precision.

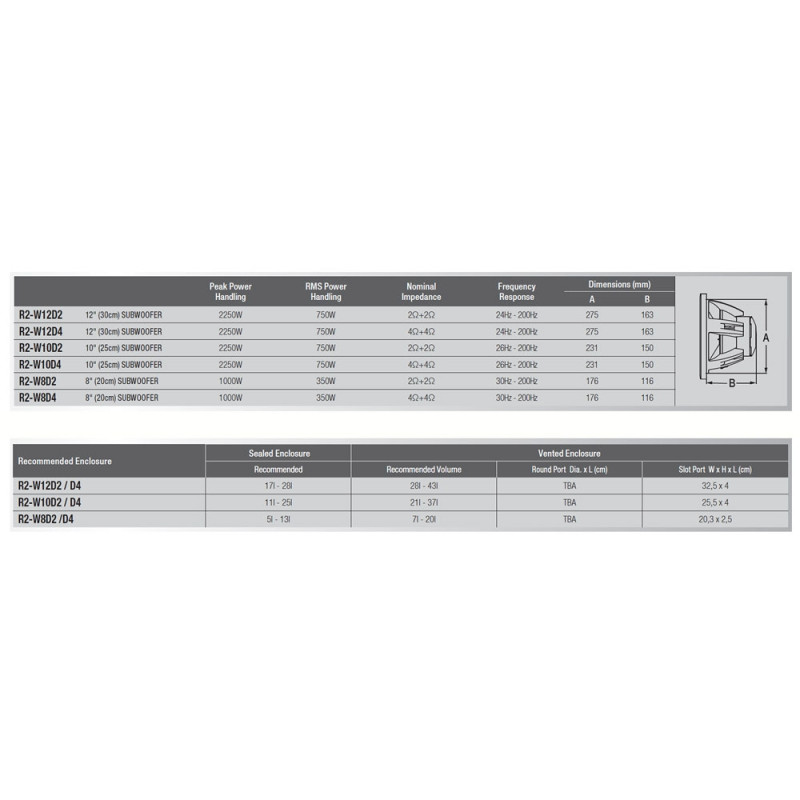

Sizes and variants
The new R-Series subwoofers are available in 12", 10" and 8" configurations and feature dual 2Ω and dual 4Ω impedance.

FEATURES AND SPECIFICATIONS

Characteristics

• Dual Voice Coil (DVC) Subwoofers with Configuration Jumpers
• Polypropylene/ceramic composite dust cover
• High-performance Kevlar-reinforced wood pulp subwoofers
• Twist-Lock grille mounting system
• High Amplitude Multi-Roll Surround Sound (HAMR)
• Large double stacked magnets

What's in the box

• DVC R2 Series 10-Inch Subwoofer with Decorative Trim Ring
• 2 connection cables for DVC setup
• User manual


Specification

• 750 W RMS
• 2250 W peak power handling
• Frequency response: 26Hz-200Hz
• Sensitivity (1 W/1 m): 82.4 dB
• Nominal impedance: 4Ω + 4Ω
• Voice coil: 65 mm
• Maximum: 20 mm
• Magnet Weight: 123oz

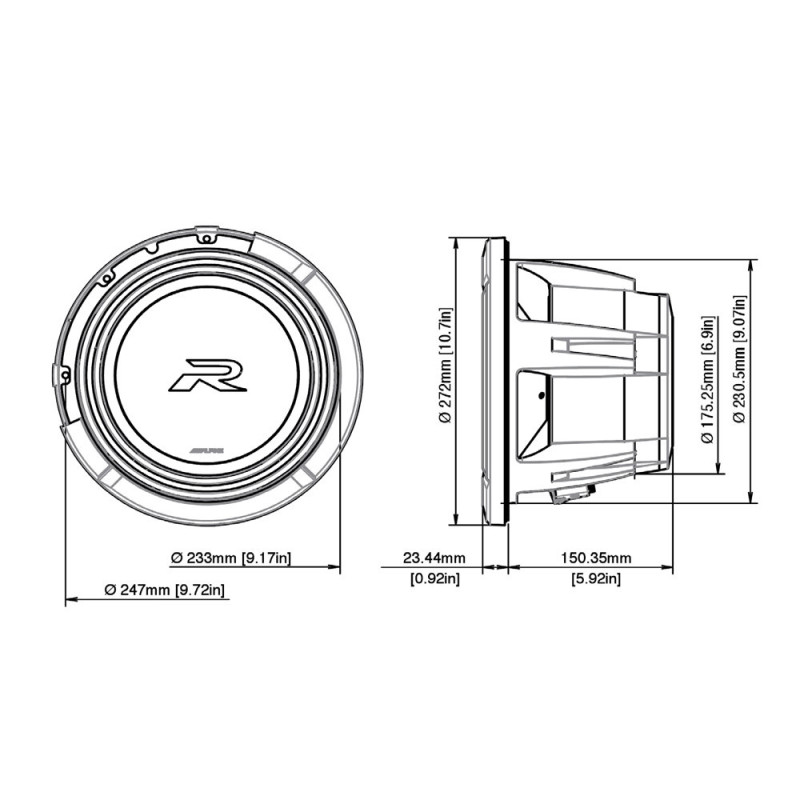

• Mounting depth: 6" (152 mm)
• Cutout Size: 9-1/16" (231 mm)
• Push-type speaker terminals (for 8AWG wire size)
• CTA-2031 Compliance
