Video interface, dvd, dvb-t, rear view camera audi rns-e

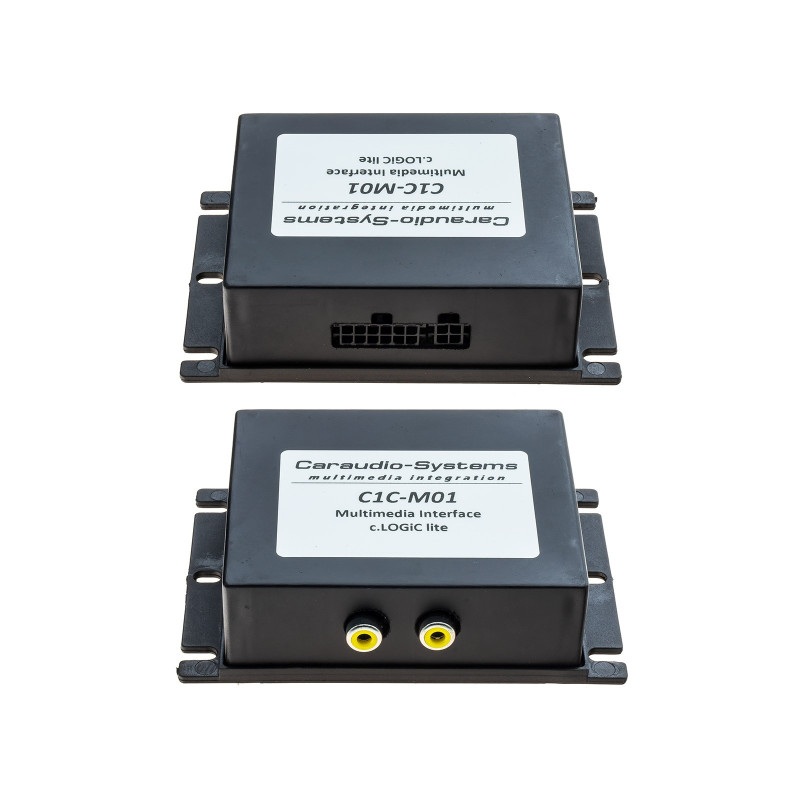

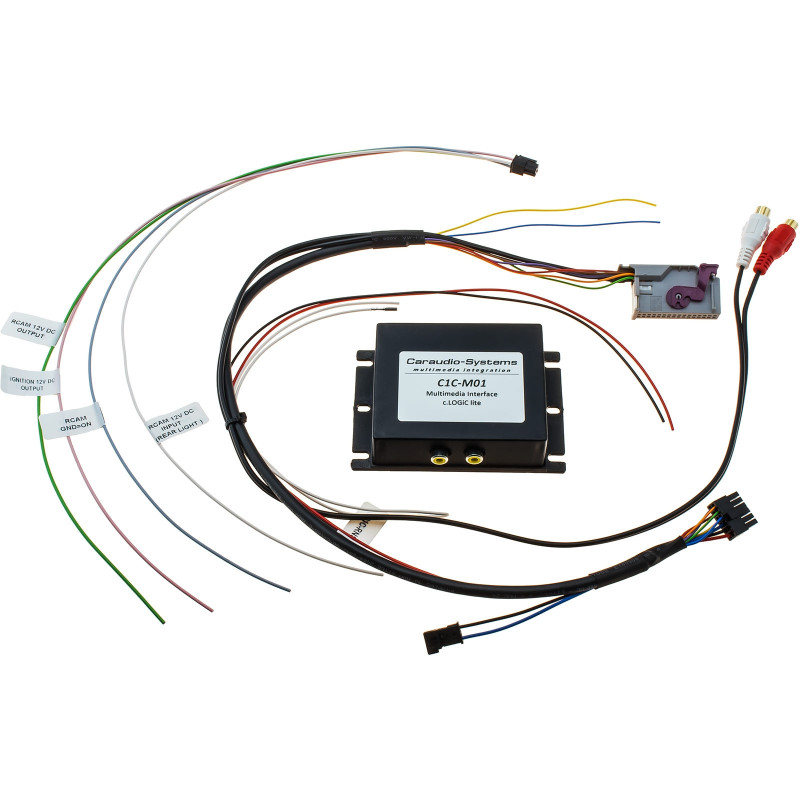

The module allows you to connect an external video source (e.g., a DVD player, a DVB-T tuner). Control of basic functions from the dedicated DVB-T tuner is performed through the navigation system. The module operates on the factory-installed zone (TV icon). Additionally, the interface automatically activates the rearview camera when reverse gear is engaged.

Product features:

• 1 AV input for connecting an external video source,
• Reversing camera input
• Power output for rear view camera (+12V max. 1A)
• Reversing camera only in NTSC system

Make and model:

• Audi Navigation System AUDI NAVIGATION PLUS RNS-E (16:9).
• Audi A3 (8L, 8P 8P Sport)
• Audi A4 (convertible - 8H, B7/8E, B6/8E)
• Audi A6 (4B)
• Audi TT (8J)


Compatible with NTSC cameras only.

Vehicles WITHOUT a factory rear view camera.

The factory TV tuner cannot be installed.

Automatic switching to the rearview camera only works after coding the radio using a diagnostic computer. Supported navigation models

• RNS-E Navigation System
